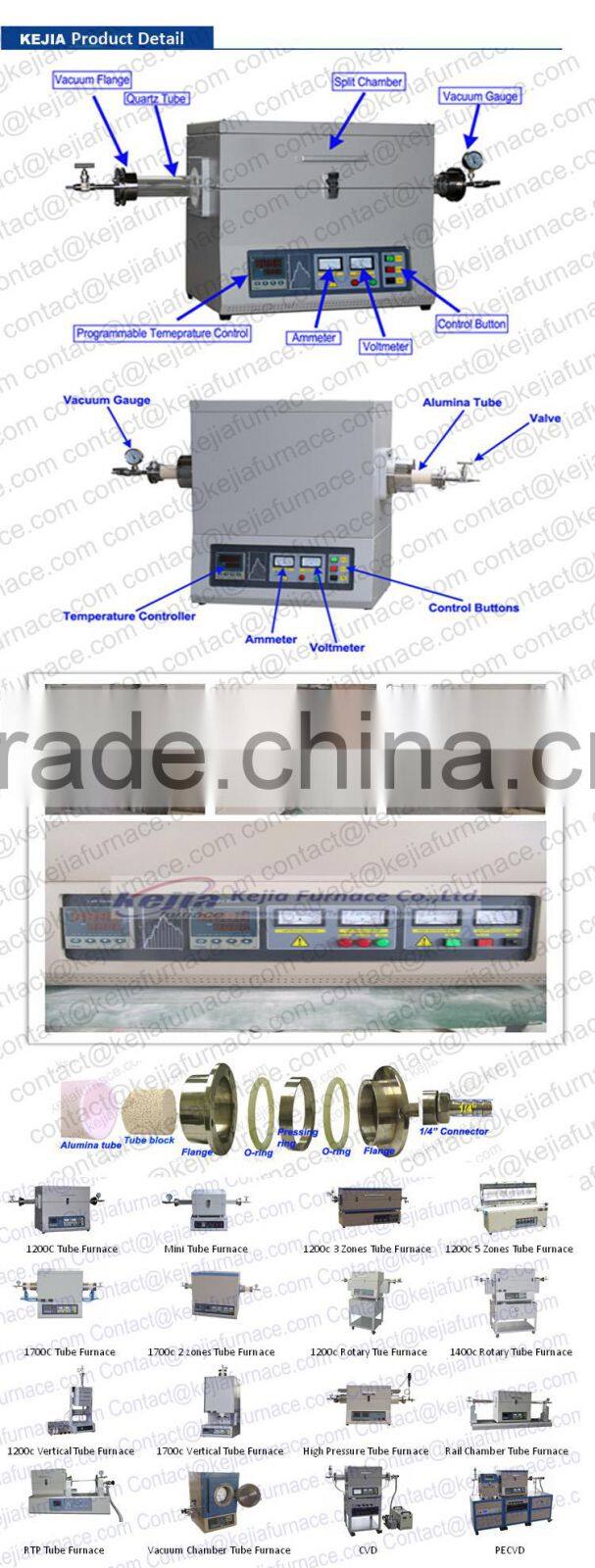

5 zones tube oven/ 5 zones tube furnace
KeJia tube furnace used for graphene CVD, can also be used for powder metallurgical material
of high temperature sintering and annealing.
Main applications:
For high temperature-atmosphere sintering, atmosphere restore, CVD experiment, and vacuum annealing.
Features:
1. It adopts the dual shell structure and intelligent auto-control temperature system,
SCR control, phase shifting trigger.
2. The chamber is adopted the imported alumina fiber, it is equipped with cooling
system between the dual shell, which can rise and cool swiftly;
3. It can be connected to atmosphere, made vacuum, the vacuum pump is optional
according to customers’ requirement;
4. This furnace possesses the advantage of temperature uniform field, surface low
temperature, rising and cooling swift, and well thermal insulation and energy conservation.
Model |
KJ-O1200 |
KJ-T1400 |
KJ-T1600 |
|||
Max. temperature |
1200℃ |
1400℃ |
1600℃ |
|||
Work temperature |
1100℃ |
1300℃ |
1550℃ |
|||
Heating element |
Resistance wire with mo |
SiC |
MoSi2 |
|||
Thermal couple |
K type |
S type |
B type |
|||
Tube material |
High purity quartz |
Alumina |
Alumina |
|||
Chamber material |
Ceramic fiber |
|||||
Heating rate |
0-20℃/min |
|||||
Temperature control accuracy |
±1℃ |
|||||
Temperature uniformity |
±5℃ |
|||||
Standand stocks | ||||||
Tube size (mm) |
Heat zone length (mm) |
Tube size(mm) |
Heat zone length (mm) |
|||
Φ30 |
300 |
Φ80 |
300 |
|||
Φ40 |
300 |
Φ80 |
440 |
|||
Φ40 |
440 |
Φ100 |
440 |
|||
Φ60 |
300 |
Φ120 |
440 |
|||
Φ60 |
440 |
Φ150 |
440 |
|||
Customer design sizes and volume is accepted | ||||||
Company Profile:
We are a furnace manufacturer, exporter and supplier in China,having years
of experience in designing and producing furnaces.Responsible and talented
production team ensures consistent product quality. High-quality materials
and stringent quality control measures ensure that our products meet the
highest level of customer satisfaction.
Products:
1) Muffle furnaces / Box furnaces / Chamber furnaces / Lab furnacesd /Tube furnace /Dental furnace
2) Vacuum tube furnaces / Multi zones tube furnaces
3) Atmosphere furnaces / Vacuum Furnaces /Electric Furnace/Melting Furnace
4) Silicon Carbide Heating Elements
5) Molybdenum Disilicide Heating Elements
6) CVD System Other Furnaces related products
