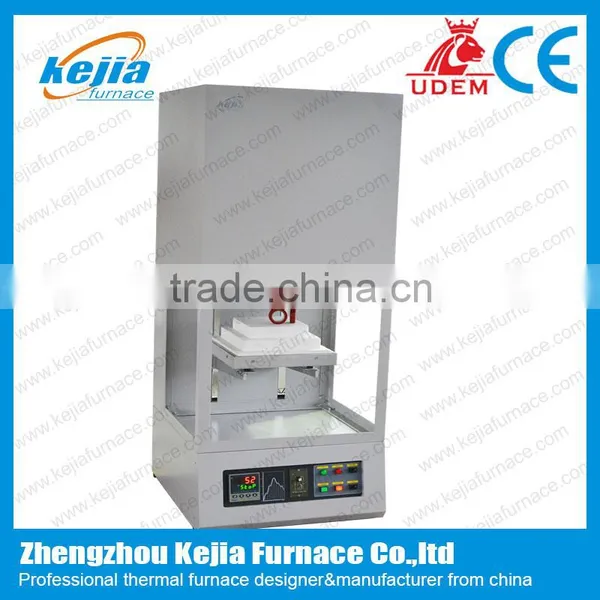

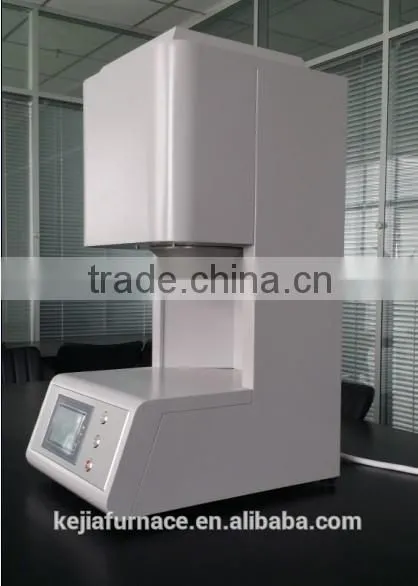

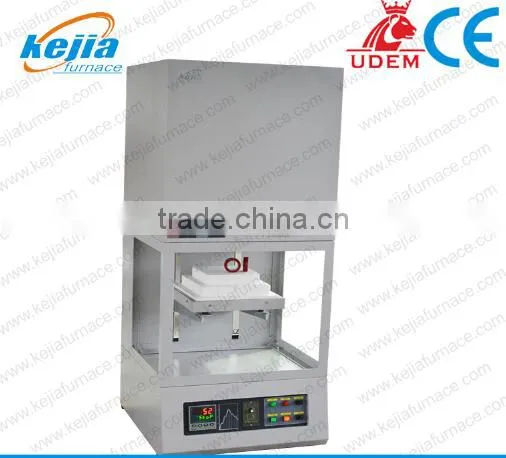

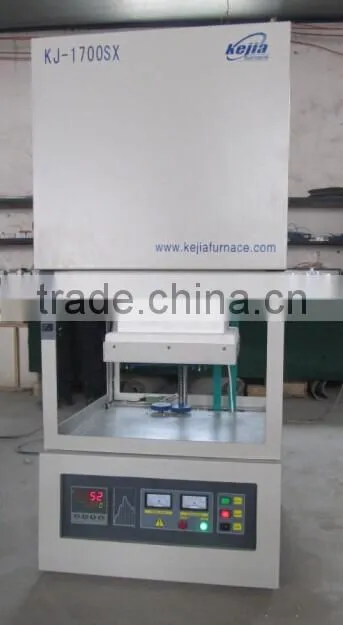

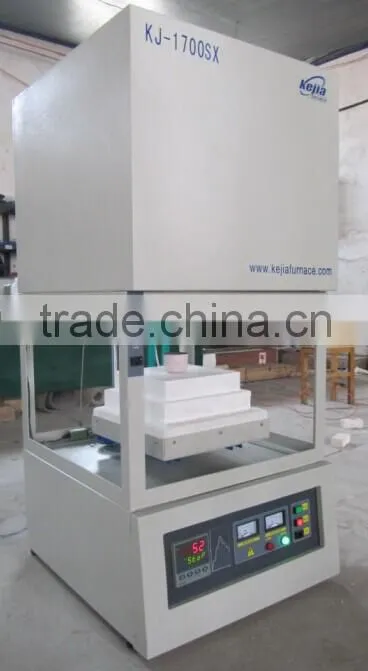

Elevator bottom lifting Bell type 1700 muffle furnaces
for research institutes
Introduction of 1700 muffle furnaces
1.Morgan furnace materials are all imported fibers made of energy-saving effect is the old
furnace more than 80%.
(Microcomputer control) programmable, automatic heating, temperature control accuracy ± 1 °C
Use
Widely used in ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials,
development of new materials, specialty materials, building materials and other fields.
Characeristics of 1700 muffle furnaces
Open type: open side, with a lock, the door can be rotated
1700 muffle furnaces 1, the control precision is ± 1 °C: uniformity: ± 1 °C (according to the heating chamber size).
2, convenient operation, programmable, PID auto tuning, automatic heating, automatic heat
insulation, automatic cooling, no duty; can reprovision communication with the computer through
the computer operation furnace, electric furnace, electric furnace (start stop pause, set the heating
curve, heating temperature curve, history curve of storage
3, fast temperature (1 °C /h and 40 °C /min adjustable heating rate).
4, energy saving (furnace production and import fiber, high temperature resistance, rapid heating and cooling)
5, boiler body through a fine spray corrosion of acid and alkali resistance, furnace body and the
furnace wall temperature isolation by air-cooled furnace near room temperature
6, double circuit protection (temperature, pressure, flow, section I, super power etc.)
7, the material is imported refractory material, good insulation properties, high temperature
resistance, heat shock resistance
8, temperature 1300 °C categories: 1400 °C of 1600 °C of 1700 °C 1800 °C five
Technical specification of 1700 muffle furnaces :
1700 muffle furnaces
Temperature Project |
1600 deg |
Voltage AC |
380V |
Temperature Accuracy |
± 1 C |
Heating Element |
1800-type silicon molybdenum rod |
Furnace chamber dimension |
500*500*500mm |
Furnace temperature field uniformity |
± 1 C |
Temperature measurement devices |
Platinum and rhodium platinum B |
Refractory |
Lightweight materials imported Morgan |
Heating rate |
1/-1 degree |
Furnace temperature |
≤ 45 degrees |
The following models elevator furnace size can be customized (see special custom)
Furnace model |
Furnace temperature |
Furnace chamber size(D*W*H) |
Voltage AC |
Power |
KJ-1600 |
0—1600C |
300*300*300mm |
24KW |
380V |
KJ-1600 |
0—1600C |
300*300*500mm |
28KW |
380V |
KJ-1600 |
0—1600C |
400*400*400mm |
32KW |
380V |
KJ-1600 |
0—1600C |
400*400*500mm |
40KW |
380V |
KJ-1600 |
0—1600C |
500*500*500mm |
50KW |
380V |
