kejia Furnace Co.,Ltd
--Professional Dental /Muffle/Tube/ Vacuum furnace&Heating Elements--

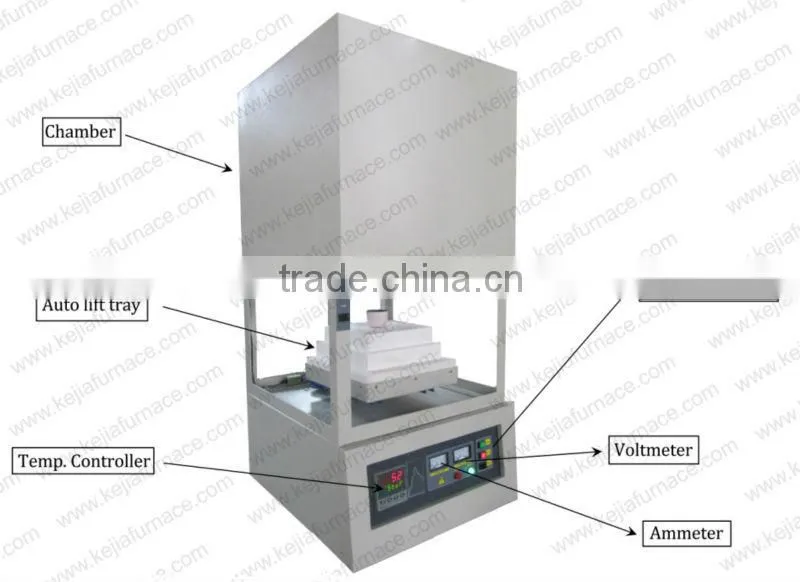

Bottom loading furnace for annealing sintering
Bottom loading furnace is a CE certified vertical high temperature muffle furnace. This furnace adopts lift type bottom structure, is more convenient to load and take material, the internal chamber heated from four sides, the temperature field is more uniform, using 1800 type heating element, working temperature 1650 ℃. And we have a variety of chamber size for your choice. The products are widely used in melting high purity glass, roasting, electronic ceramics, biological ceramics, magnetic materials and refractory metal, etc , they are ideal tools for sintering all types of materials, great for labs or college scientific research use.
Features of 1600c electric bottom loading furnace
1. Operation Temperature: 1600°C (1700℃ for short time).
2. Compact furnace chamber with auto lift and drop tray.
3. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina
fiber ceramic insulation.
4. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
5. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
6. Power control with 30 or 50 segments programmable.
Technical data of 1600c electric bottom loading furnace
Model |
KJ-B1200 |
KJ-B1400 |
KJ-B1700 |
Working Temperature |
1100°C (continuous) |
1300°C (continuous) | 1600°C (continuous) |
Maximum Temperature |
1200°C(<2hours) |
1400°C(<2hours) | 1700°C(<2hours) |
Heating element |
resistance wire with Mo |
SiC | MoSi2 |
Thermal couple |
K type |
S type | B type |
Temperature Control |
50 steps programmable and PID automatic control |
||
Heating Rate |
0~20°C/min (suggestion: ≤15°C) |
||
Temperature Accuracy |
+/-1°C |
||
Temperature uniformity |
+/-5°C |
||
Chamber material |
ceramic fiber |
||
Working Voltage |
110-415V, 60/50 Hz (or according to your requirement) |
||
Net Weight |
100 Kg |
||
Door open pattern |
lifting type |
||
Regular chamber size |
120x120x130mm 250x250x300mm 150x150x150mm 300x300x400mm 200x200x200mm 600x600x600mm |
||
Note: Customer design sizes and volume is accepted.
Package:The bell type muffle furnace is plastic paper inside, Polyfoam filled, Wooden box outside.
Shipping and Delivery: by air/sea, in two weeks after receiving the payment.
Payment: L/C T/T, West union,etc.
we are a furnace manufacturer, exporter and supplier in China,having years of experience in designing and producing furnaces.Responsible and talented production team ensures consistent product quality. High-quality materials and stringent quality control measures ensure that our products meet the highest level of customer satisfaction. Our products muffle furnace have been exported to Middle East, Europe and the United States,etc.
If there is any interest or demand,please feel free to get in touch.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Professional factory : We are manufacturer, specializing in laboratory furnaces.
After-Sales Service :
Terrific: after-sales service: 24 hours around in clock &12 months Warranty
Life-long maintenance service for the product.

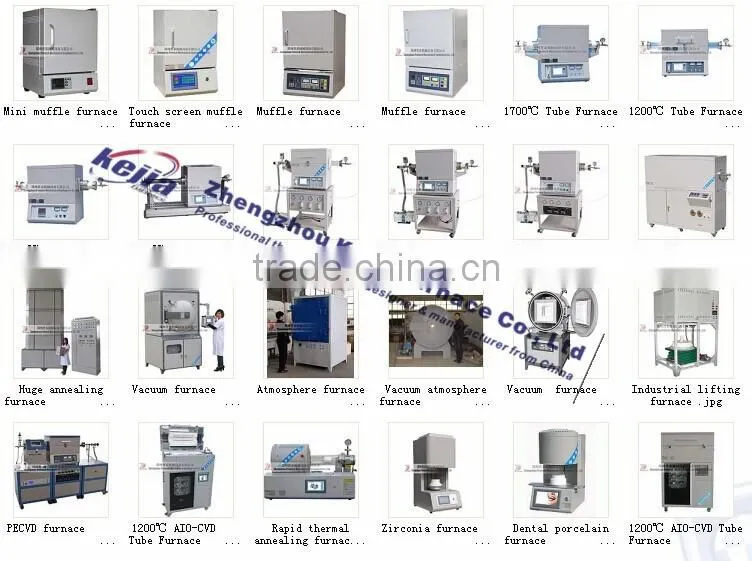

Pictures of our products:
1. Can you make the size as required?
Yes, the size can be customized.
2. Why that the max. temperature can just use less than 2 hours?
It will harm the heating elements when using max. temperature for too long time.
3. Can I send you my sintering material?
Yes, you can, and we can help you sinter the material free of charge .
4. What is the reason of “Power and heating element are OK, but furnace can’t be controlled by program” ?
Controller or related circuit may be damaged,please check controller. If not, please inform manufacturer.
5. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full
experience doing business in domestic and oversea.
6. We are not professional for operation and installation of your machine?
While it is not a stumbling block,our machine is easy to operate,
no need to professional training,and the instruction manual and
video sent to you are enough.What’s more,we have professional
engineers and they can solve all questions.
7. How about packaging ?………….if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,
plywood carton or as your requirement.Damage haven’t happened before,
if happen,we will arrange replacement.
8. We haven’t do business before,how can I trust your company and machine ?
We have been GOLD supplier for six years with no complaints on Alibaba.and our machine have exported to Eath Asia,South Asia,the middle East Asia,Africa etc. areas and have a good feedback.
