Stainless Steel Water Filter Housing
| Water Filter Housing Picture: | Basic Specifications: |
|
Application: Water Treatment
Materials: Stainless Steel 304

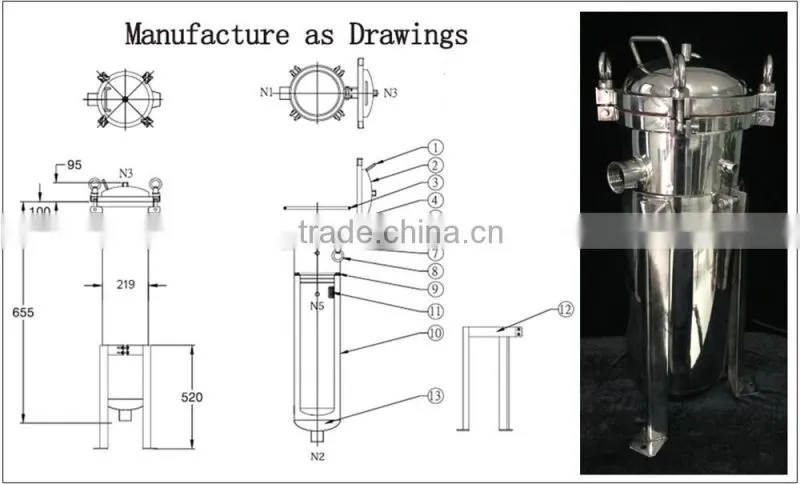

Size: 655mm
Surface Treatment: Electrolytic Oxidation outside/Acid Washing inside
Bag: #2 size |
* This 1 bag water filter housing canbe used #2 size bag and standard perforated basket as a strainer.
*** SINFT Liquid Bag Filter effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products.
*** Bag filter can be used with the standard #1, #2, #3, #4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result.
*** Eye Bolt Closure System.The user friendly, cost effective bag filter housing for high volume, multiple applications and processes.
*** The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Technical specification of Stainless Steel Water Filter Housing:
1. Material: SS304, SS316, SS316L
2. Design vessel pressure: 0.6-1.0Mpa
3. Operate temperature: -20-130°C
4. Filtering accuracy: 0.1-20um
5. Filter Bag type: 1#Bag, 2#Bag, 3#Bag, 4#Bag
6. Flow Type: Side Entry, Top Entry, S-Multi, B-Multi Bag Filter
7. Connection vessel: GB, ANSI, JIS, and other flange
8. Inlet/Out Dimension: 1", 1.5", 2", 2.5", 3", 3.5", 4"
9.Surface Finish: Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, echanical
Polishing, Ra≤0.5μm
10. Usage: widely used in Food & Beverage, Wine Industry, Medicine, Chemical Industry,
Electronic Industry and So On.
* We have professinal techinical and research department which can promise you a proffessional service for you.
Stainless Steel Water Filter Housing Services:
* Pre-sales Service: Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers the highest quality products at the most favorable price. Every customer has the chance to visit the working machine in the site before placing the order.
* During production Services: You can supervise your goods by yourself. We can offer you the Quality Supervision service by e-mail, photos, or video and update the data anytime.
* After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
Feel free to contact me = Ailcy
