SS 304 Water Filter Housing for Water Treatment

1. Standard packing: Bubble film inside, carton outside, then put into a wooden-case.
2. As your requirements.

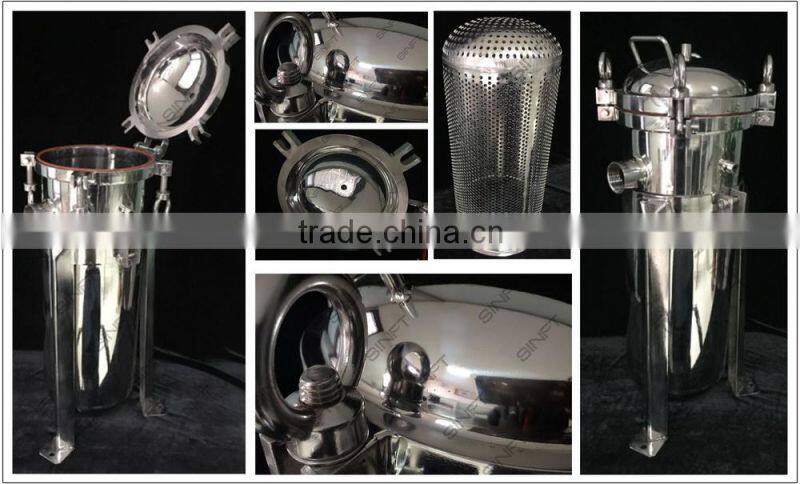

SS 304 Water Filter Housing for Water Treatment

Water Filter Picture:	Basic Specifications:
	Application: Water Treatment   Materials: SS 304 (Or SS 316L)   Size: Can be customized    Surface Treatment: Electrolytic Oxidation outside/Acid Washing inside   Bag: #1, #2, #3, #4 size bags or the standard perforated basket as a strainer

 * This 1 bag water filter housing canbe used #2 size bag and standard perforated basket as a strainer.

*** SINFT Liquid Bag Filter effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products.

*** Bag filter can be used with the standard #1, #2, #3, #4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result.

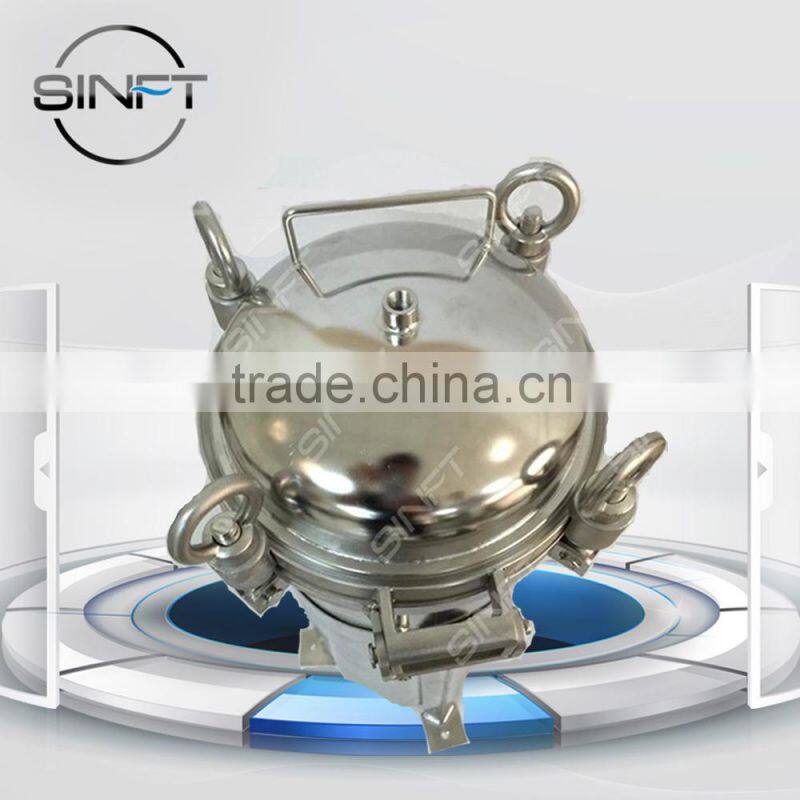

*** Eye Bolt Closure System.The user friendly, cost effective bag filter housing for high volume, multiple applications and processes.

*** The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

Technical specification of Stainless Steel Water Filter Housing:

     1. Material: SS304, SS316, SS316L

     2. Design vessel pressure: 0.6-1.0Mpa

     3. Operate temperature: -20-130°C

     4. Filtering accuracy: 0.1-20um

     5. Filter Bag type: 1#Bag, 2#Bag, 3#Bag, 4#Bag

     6. Flow Type: Side Entry, Top Entry, S-Multi, B-Multi Bag Filter

     7. Connection vessel: GB, ANSI, JIS, and other flange

     8. Inlet/Out Dimension: 1", 1.5", 2", 2.5", 3", 3.5", 4"

     9.Surface Finish: Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, echanical

                                   Polishing, Ra≤0.5μm

     10. Usage: widely used in Food & Beverage, Wine Industry, Medicine, Chemical Industry,

                         Electronic Industry and So On.

* We have professinal techinical and research department which can promise you a proffessional service for you.

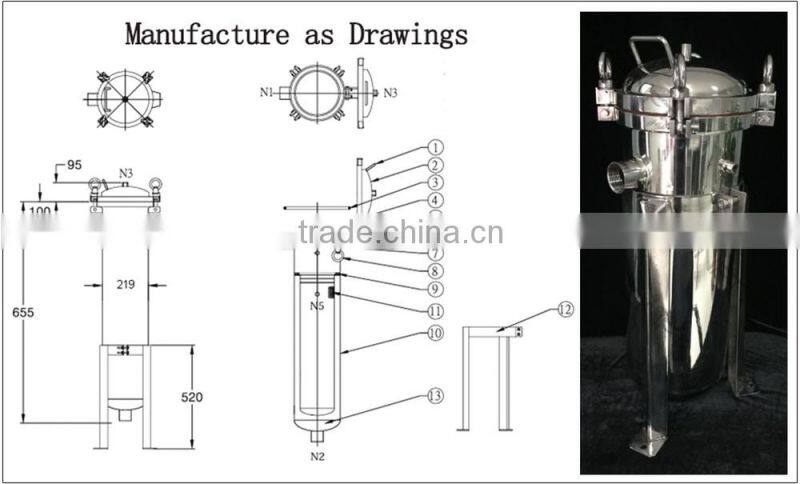

* We welcome you drawing and information of filter housing. We will produce the filter housing as per your needs.

SS 304 Water Filter Housing for Water Treatment Services:

 * Pre-sales Service: Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers the highest quality products at the most favorable price. Every customer has the chance to visit the working machine in the site before placing the order.

* During production Services: You can supervise your goods by yourself. We can offer you the Quality Supervision service by e-mail, photos, or video and update the data anytime.

* After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

Feel free to contact me = Ailcy:
