1.simple and stable2.easy operation
ntinuous working.

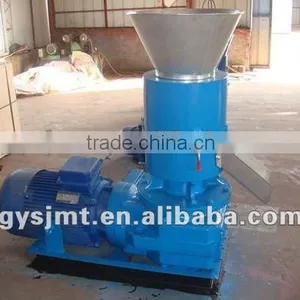

Alfalfa/sunflower waste pellet making machine. Skype: anna.jin29
1.Feature:
Flat-die pellet mill machine crude fiber is mainly applied to granulation. Such as
sawdust, rice husk, cotton stalk, cotton seed skins, weeds and crop stalks and other plant waste can also be applied to lio-fertilizer, organic manure, fertilizer, such as low-temperature granulation.
2.Function:
1) the use of technology: a unique three-in-one machines to complete low-temperature drying, cooling, screening the entire process. 2).Equipment: low investment and low operating costs.
3).Gear box life without refueling.
3. technical data
model | Output(kg/h) | Power(kw) | Particle specification(mm) | Dynamic configuration | Size(mm) | Weight(packaged)(kg) |
105 | 100 | 1.5 | 3-6 | Triangle-generation | 600*450*900 | 120 |
120 | 150 | 2.2 | 3-6 | Triangle-generation | 600*450*900 | 150 |
150 | 180 | 3 | 3-6 | Triangle-generation | 600*550*950 | 180 |
200 | 250 | 7.5 | 3-8 | Gear box | 1150*600*900 | 250 |
250 | 300 | 15 | 3-10 | Gear box | 1250*600*850 | 300 |
300 | 400 | 22 | 3-12 | Gear box | 1300*600*950 | 350 |
350 | 500 | 30 | 3-12 | Gear box | 1300*600*950 | 480 |
450 | 700 | 45 | 3-12 | Gear box | 1900*900*1800 | 1500 |
550 | 1000 | 55 | 3-12 | Gear box | 2200*100*1900 | 2000 |

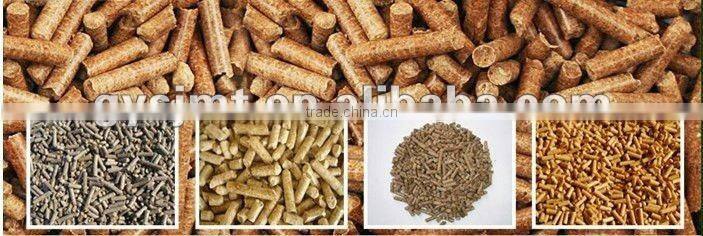

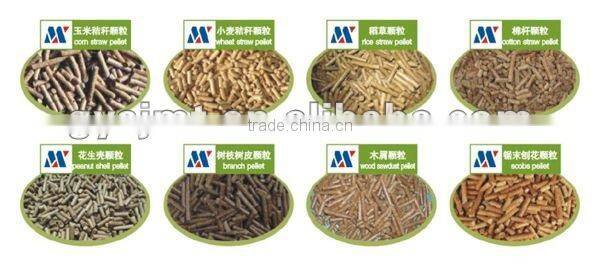

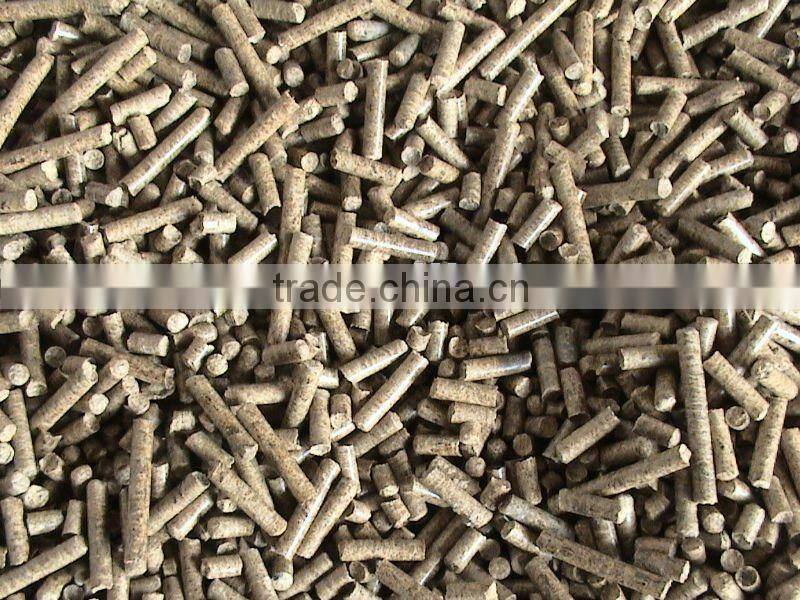

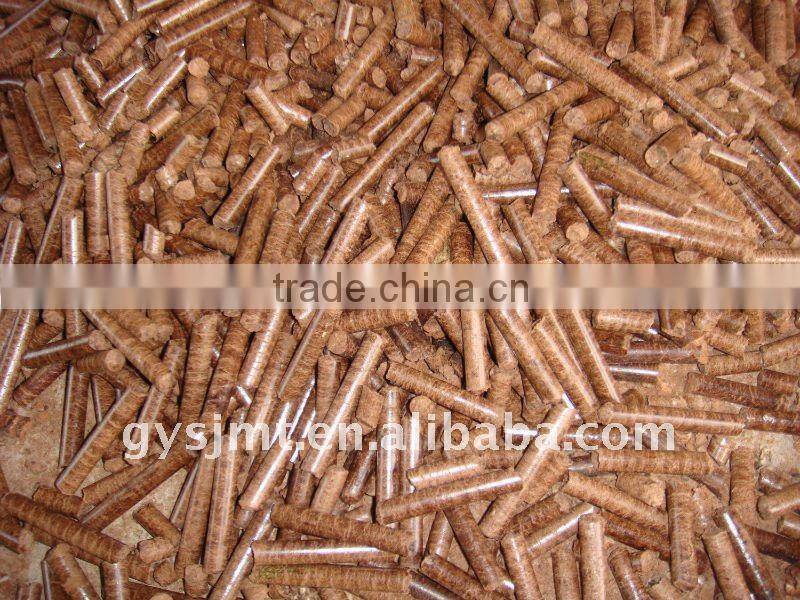

4. Final pellets

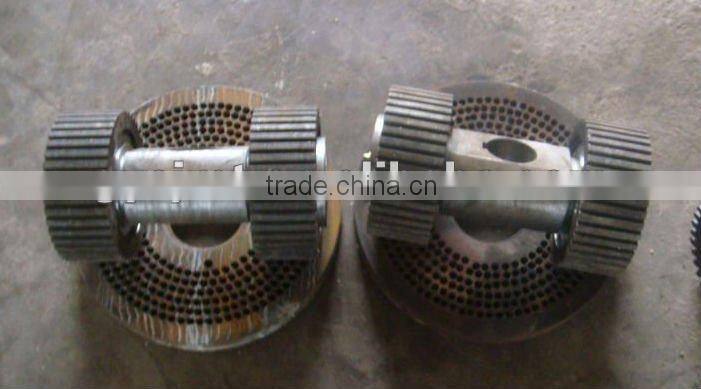

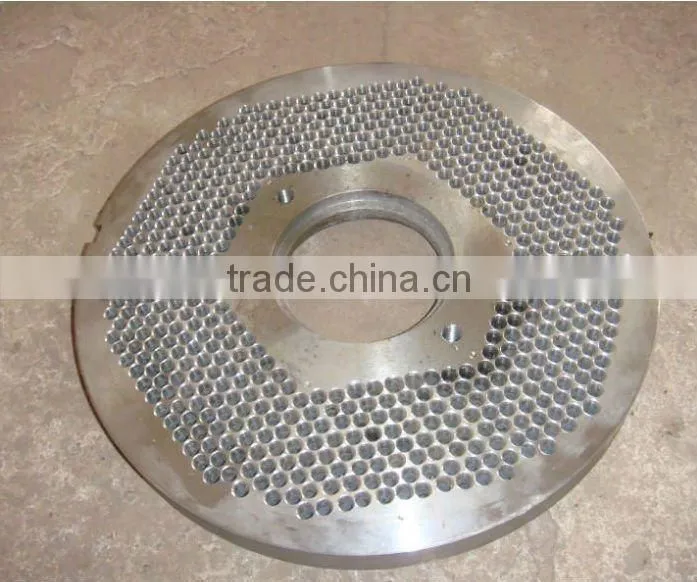

5. Spare parts
