Specifications
wood pellet mill with high quality1.for sawdust and hold CE
2.flat die type
3.pellet size:2-10mm

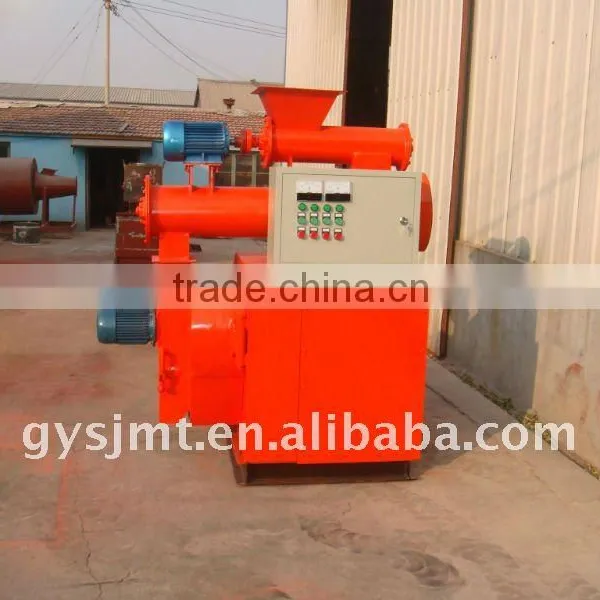

wood pellet mill with high quality
1. Features of wood pellet mill
• Can be used in Stoves and Boilers
• Flow like a liquid, ideal for automatic systems
• Improved combustion characteristics over raw material
• Can be used in small and large scale applications
• Easy to handle, store and transport
2. Raw materials
Pellets can be made from wood / sawdust/ foam / wheat / barley / cotton and fibre waste. They also need a wet ingredient, such as steam or molasses.
nical data
model |
Output(kg/h) |
Power(kw) |
Particle specification(mm) |
Dynamic configuration |
Size(mm) |
Weight(packaged)(kg) |
250 |
500/1000 |
22+1.5+0.55/22 |
3-8 |
Triangle-generation |
1650*1500*1550 |
1000 |
260 |
600/1500 |
22+1.5+0.55/22 |
3-8 |
Triangle-generation |
1650*1500*1550 |
1200 |
300 |
800/2000 |
30+1.5+0.55/30 |
3-8 |
Triangle-generation |
1750*1500*1600 |
1500 |
350 |
1000/3000 |
30+30+2.2+0.75/60 |
3-10 |
Gear box |
2300*1500*2200 |
2000 |
420 |
2000/5000 |
90+2.2+1.1/90 |
3-12 |
Gear box |
2500*1200*2300 |
3000 |
508 |
2000/8000 |
110+2.2+1.1/32 |
3-15 |
Gear box |
2500*1300*2400 |
3800 |
