Specifications
ring die belt-driven pelletizer1.high capacity:500-8000kg/h
2.more than 20 year experience
3.hold CE and ISO

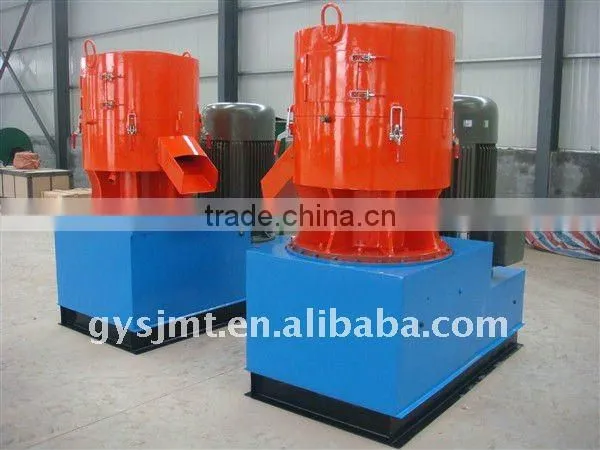

ring die belt-driven pelletizer
1. usage
Ring-die pelletizer is suitable for large farms and organic herbal medicine and chemical industry etc, and the raw materials contain straw, wood-dust, bamboo powder, cotton wood, peanuts shell, straw, clover, cotton seed shell etc and can mix with all kinds of powder materials. Raw materials water requirement is 15%-18% before granulating. The machine has compact structure, good appearance, high yield, less consumption, use convenient, reliable performance etc.
Our factory with diameter of 1.5,2,3,3.5 and 2.5,4,5,6,8,10 and 12 of the aperture ring die, user can choose according to their different needs.
2. technical data
model |
Output(kg/h) |
Power(kw) |
Particle specification(mm) |
Dynamic configuration |
Size(mm) |
Weight(packaged)(kg) |
250 |
500/1000 |
22+1.5+0.55/22 |
3-8 |
Triangle-generation |
1650*1500*1550 |
1000 |
260 |
600/1500 |
22+1.5+0.55/22 |
3-8 |
Triangle-generation |
1650*1500*1550 |
1200 |
300 |
800/2000 |
30+1.5+0.55/30 |
3-8 |
Triangle-generation |
1750*1500*1600 |
1500 |
350 |
1000/3000 |
30+30+2.2+0.75/60 |
3-10 |
Gear box |
2300*1500*2200 |
2000 |
420 |
2000/5000 |
90+2.2+1.1/90 |
3-12 |
Gear box |
2500*1200*2300 |
3000 |
508 |
2000/8000 |
110+2.2+1.1/32 |
3-15 |
Gear box |
2500*1300*2400 |
3800 |
