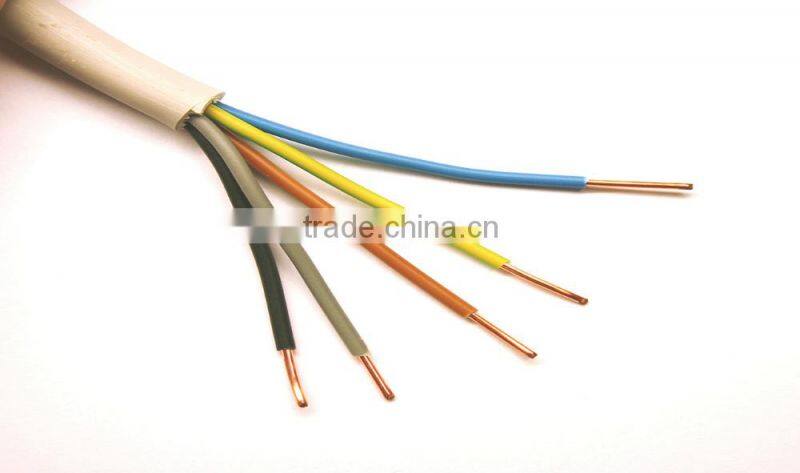

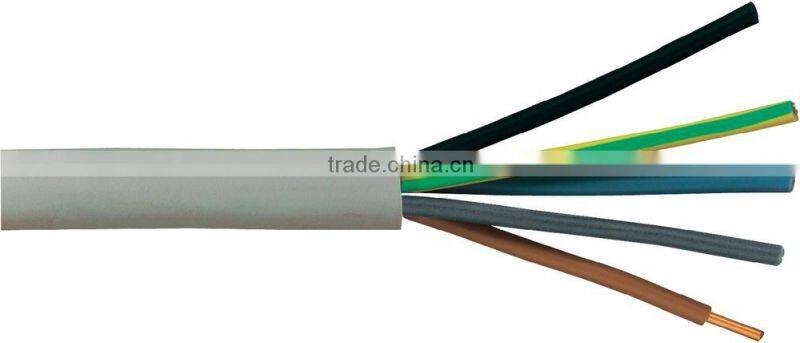

NYM, Electric Wire, 300/500 V, CU/PVC/PVC Cable (VDE 0250-204/HD 21.1) Application: For installation in, on or under plaster, in dry, damp or wet rooms as well as in walls and concrete. Also suitable for installation outdoors if protected against direct sun irradiation.

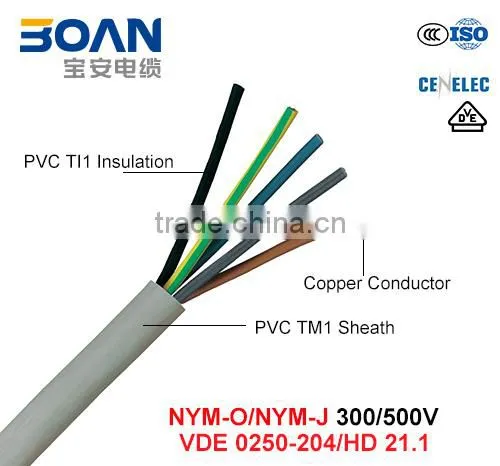

Conductor material: Bare copper
Insulation: PVC TI1
Sheathing material: PVC TM1
Colour of outer sheath: Gray RAL 7035
Flame retardant: VDE 0482-332-1-2/IEC 60332-1 Max.
Operating temperature, -40 - +70 ° C
Fixed: Temperature, moved/during, 5 - 70 ° C
Installation: Nominal voltage Uo: 300 V 300 V
Nominal voltage U: 500 V 500 V Test voltage: 2 kV
| part name | Rl. | Wi. | Ibl. | Rbv. | Wm. | DA. | Cu. | G. | |
| [Ω/km] | [mm] | [A] | [mm] | [mm] | [mm] | [kg/km] | [kg] | ||
| NYM-J 01X2,5 GR | RE | 7,41 | 0,7 | 23,2 | 1,4 | 5,8 | 24 | 70 | |
| NYM-J 01X4 GR | RE | 4,61 | 0,8 | 25,6 | 1,4 | 6,4 | 38 | 80 | |
| NYM-J 01X6 GR | RE | 3,08 | 0,8 | 27,2 | 1,4 | 6,8 | 58 | 105 | |
| NYM-J 01X10 GR | RE | 1,83 | 1 | 32 | 1,4 | 8 | 96 | 155 | |
| NYM-J 01X16 GR | RM | 1,15 | 1 | 36,4 | 1,4 | 9,1 | 154 | 230 | |
| NYM-J 01X25 GR | RM | 0,727 | 1,2 | 49,2 | 1,4 | 12,3 | 240 | 330 | |
| NYM-J 03X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 32,8 | 1,4 | 8,2 | 43 | 135 |
| NYM-J 03X1,5/TR GR | RE | 12,1 | 0,6 | 19,5 | 32,8 | 1,4 | 8,2 | 43 | 135 |
| NYM-J 03X2,5 GR | RE | 7,41 | 0,7 | 27 | 37,6 | 1,4 | 9,4 | 72 | 190 |
| NYM-J 03X2,5/TR GR | RE | 7,41 | 0,7 | 27 | 37,6 | 1,4 | 9,4 | 72 | 190 |
| NYM-J 03X4 GR | RE | 4,61 | 0,8 | 36 | 43,2 | 1,4 | 10,8 | 115 | 265 |
| NYM-J 03X6 GR | RE | 3,08 | 0,8 | 46 | 48,8 | 1,6 | 12,2 | 173 | 315 |
| NYM-J 03X10 GR | RE | 1,83 | 1 | 63 | 58,8 | 1,6 | 14,7 | 288 | 465 |
| NYM-J 04X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 35,2 | 1,4 | 8,8 | 58 | 160 |
| NYM-J 04X1,5/TR GR | RE | 12,1 | 0,6 | 19,5 | 35,2 | 1,4 | 8,8 | 58 | 160 |
| NYM-J 04X2,5 GR | RE | 7,41 | 0,7 | 24 | 40,8 | 1,4 | 10,2 | 96 | 230 |
| NYM-J 04X2,5/TR GR | RE | 7,41 | 0,7 | 24 | 40,8 | 1,4 | 10,2 | 96 | 230 |
| NYM-J 04X4 GR | RE | 4,61 | 0,8 | 32 | 48,4 | 1,6 | 12,1 | 154 | 330 |
| NYM-J 04X6 GR | RE | 3,08 | 0,8 | 41 | 53,2 | 1,6 | 13,3 | 230 | 460 |
| NYM-J 04X10 GR | RE | 1,83 | 1 | 57 | 64,4 | 1,6 | 16,1 | 384 | 690 |
| NYM-J 04X16 GR | RM | 1,15 | 1 | 76 | 76 | 1,6 | 19 | 614 | 1090 |
| NYM-J 04X25 GR | RM | 0,727 | 1,2 | 96 | 93,6 | 1,8 | 23,4 | 960 | 1640 |
| NYM-J 04X35 GR | RM | 0,524 | 1,2 | 119 | 102,8 | 1,8 | 25,7 | 1344 | 2090 |
| NYM-J 05X1,5 GR | RE | 12,1 | 0,6 | 17,5 | 38 | 1,4 | 9,5 | 72 | 190 |
| NYM-J 05X1,5/TR GR | RE | 12,1 | 0,6 | 17,5 | 38 | 1,4 | 9,5 | 72 | 190 |
| NYM-J 05X2,5 GR | RE | 7,41 | 0,7 | 24 | 44 | 1,4 | 11 | 120 | 270 |
| NYM-J 05X2,5/TR GR | RE | 7,41 | 0,7 | 24 | 44 | 1,4 | 11 | 120 | 270 |
| NYM-J 05X4 GR | RE | 4,61 | 0,8 | 32 | 52,8 | 1,6 | 13,2 | 192 | 410 |
| NYM-J 05X6 GR | RE | 3,08 | 0,8 | 41 | 58 | 1,6 | 14,5 | 288 | 540 |
| NYM-J 05X10 GR | RE | 1,83 | 1 | 57 | 70,8 | 1,6 | 17,7 | 480 | 850 |
| NYM-J 05X16 GR | RM | 1,15 | 1 | 76 | 84,8 | 1,8 | 21,2 | 768 | 1350 |
| NYM-J 05X25 GR | RM | 0,727 | 1,2 | 96 | 102,8 | 1,8 | 25,7 | 1200 | 1990 |
| NYM-J 05X35 GR | RM | 0,524 | 1,2 | 119 | 134 | 1,8 | 33,5 | 1680 | 2160 |
| NYM-J 07X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 42 | 1,4 | 10,5 | 101 | 235 |
| NYM-J 07X2,5 GR | RE | 7,41 | 0,7 | 27 | 50,4 | 1,6 | 12,6 | 168 | 350 |
| NYM-J 08X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 50 | 1,6 | 12,5 | 115 | 237 |
| NYM-J 10X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 57,2 | 1,6 | 14,3 | 144 | 330 |
| NYM-J 12X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 57,6 | 1,6 | 14,4 | 173 | 400 |
| NYM-J 16X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 63,2 | 1,6 | 15,8 | 230 | 457 |
| NYM-J 12X2,5 GR | RE | 7,41 | 0,7 | 27 | 61,6 | 1,6 | 15,4 | 288 | 660 |
| NYM-O 01X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 20,8 | 1,4 | 5,2 | 14,4 | 45 |
| NYM-O 01X2,5 GR | RE | 7,41 | 0,7 | 27 | 23,2 | 1,4 | 5,8 | 24 | 70 |
| NYM-O 01X4 GR | RE | 4,61 | 0,8 | 36 | 25,6 | 1,4 | 6,4 | 38 | 80 |
| NYM-O 01X6 GR | RE | 3,08 | 0,8 | 46 | 27,2 | 1,4 | 6,8 | 58 | 105 |
| NYM-O 01X10 GR | RE | 1,83 | 1 | 63 | 32 | 1,4 | 8 | 96 | 155 |
| NYM-O 01X16 GR | RM | 1,15 | 1 | 85 | 36,4 | 1,4 | 9,1 | 154 | 230 |
| NYM-O 02X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 31,2 | 1,4 | 7,8 | 29 | 115 |
| NYM-O 02X1,5/TR GR | RE | 12,1 | 0,6 | 19,5 | 31,2 | 1,4 | 7,8 | 29 | 115 |
| NYM-O 02X2,5 GR | RE | 7,41 | 0,7 | 27 | 35,6 | 1,4 | 8,9 | 48 | 157 |
| NYM-O 02X2,5/TR GR | RE | 7,41 | 0,7 | 27 | 35,6 | 1,4 | 8,9 | 48 | 157 |
| NYM-O 03X1,5 GR | RE | 12,1 | 0,6 | 17,5 | 32,8 | 1,4 | 8,2 | 43 | 135 |
| NYM-O 03X1,5/TR GR | RE | 12,1 | 0,6 | 17,5 | 32,8 | 1,4 | 8,2 | 43 | 135 |
| NYM-O 04X1,5 GR | RE | 12,1 | 0,6 | 17,5 | 35,2 | 1,4 | 8,8 | 58 | 160 |
| NYM-O 04X1,5/TR GR | RE | 12,1 | 0,6 | 17,5 | 35,2 | 1,4 | 8,8 | 58 | 160 |
| NYM-O 04X6 GR | RE | 3,08 | 0,8 | 32 | 53,2 | 1,6 | 13,3 | 230 | 460 |
| NYM-O 04X10 GR | RE | 1,83 | 1 | 57 | 64,4 | 1,6 | 16,1 | 384 | 690 |
| NYM-O 04X16 GR | RM | 1,15 | 1 | 76 | 76 | 1,6 | 19 | 614 | 1090 |
| NYM-O 04X25 GR | RM | 0,727 | 1,2 | 96 | 93,6 | 1,8 | 23,4 | 960 | 1640 |
| NYM-O 04X35 GR | RM | 0,524 | 1,2 | 119 | 102,8 | 1,8 | 25,7 | 1344 | 2090 |
| NYM-O 07X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 42 | 1,4 | 10,5 | 101 | 235 |
| NYM-O 12X1,5 GR | RE | 12,1 | 0,6 | 19,5 | 57,6 | 1,6 | 14,4 | 173 | 400 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
