High capacity Charcoal/coal powder extruder machine. Skype: anna.jin29
1. Principle of Work
Coal extruder machine, which can make the powder of coal to different coal blocks shapes. The working principle is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.
2.The Main Technical Data and Outsourcing Standard Parts
Type Item |
MBJ140 |
MBJ180 |
MBJ210 |
MBJ300 |
MBJ400 |
|
Capacity |
500kg/h |
1000kg/h |
1500kg/h |
2000kg/h |
3000kg/h |
|
Dimension of final products |
Diameter 20-40mm |
diameter 20-60mm |
diameter 20-80mm |
diameter 20-80mm |
diameter 20-80mm |
|
Spindle Speed |
46-60 rev/min |
39-60 rev/min |
35-60 rev/min |
35-60 rev/min |
35-60 rev/min |
|
Quantity of helical blade |
4 |
4 |
4 |
4 |
4 |
|
Motor |
Y160m-4 11kw |
Y180m-4 18.5kw |
Y200L-4 30kw |
Y225s-4 37kw |
Y315m-4 160kw |
|
Y160L-4 15kw |
Y180L-4 22kw |
Y225s-4 37kw |
Y225m-4 45kw |
|||
Speed reducer |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650-750 |
ZQ850 |
|
Bearing |
7511,211,210,1305 |
7614,314,313,1206 |
7619,319,318,1206 |
32320,320,319,1207 |
32322,322,321 |
|
Note |
This is the minimum speed of spindle. It can be adjusted on the basis of the current intensity, load and output. |
|||||

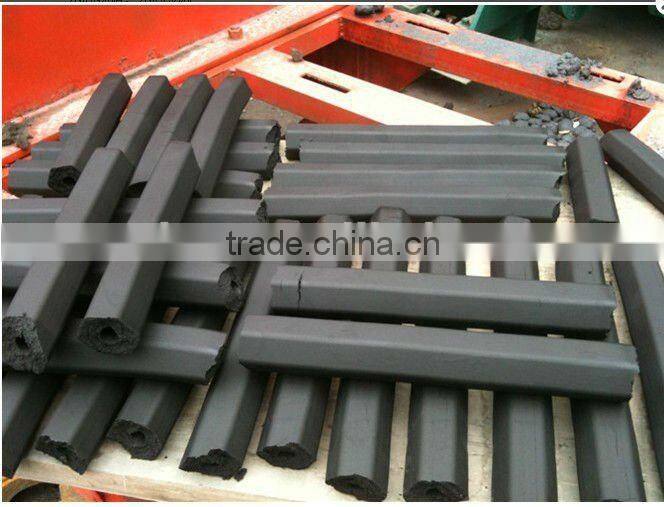

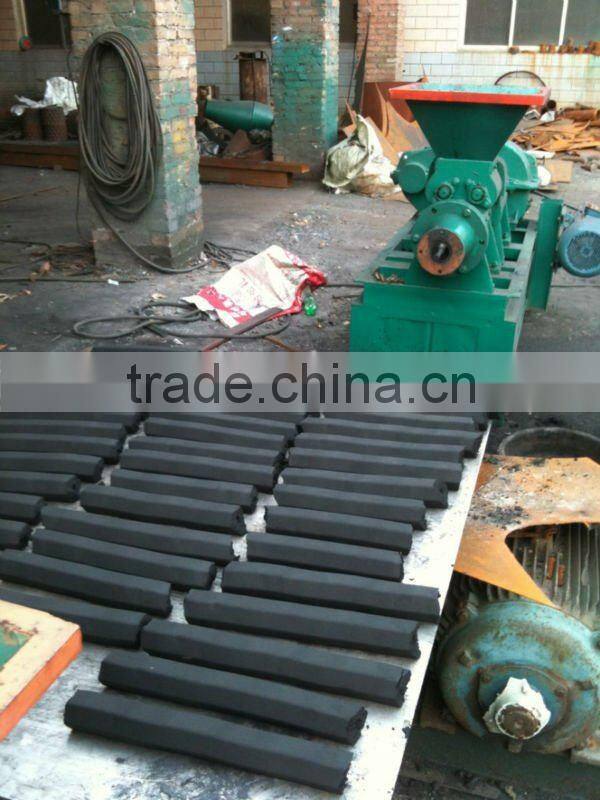

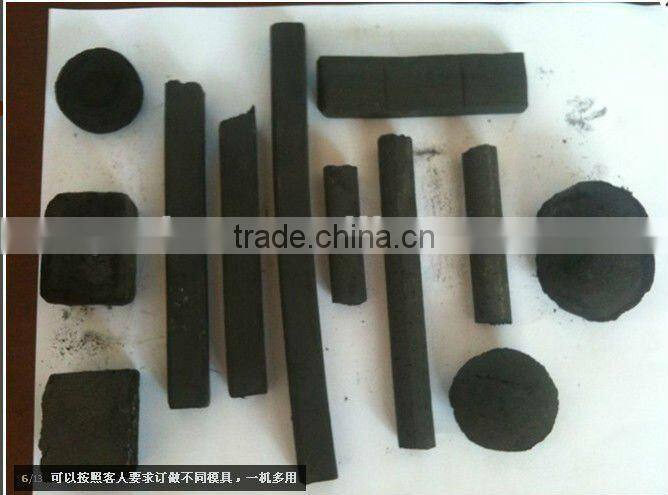

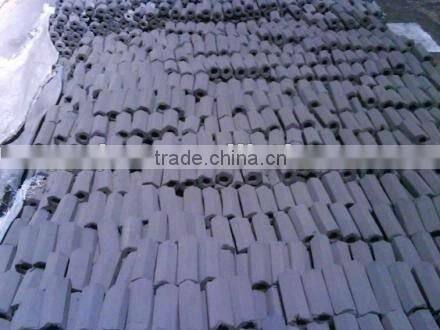

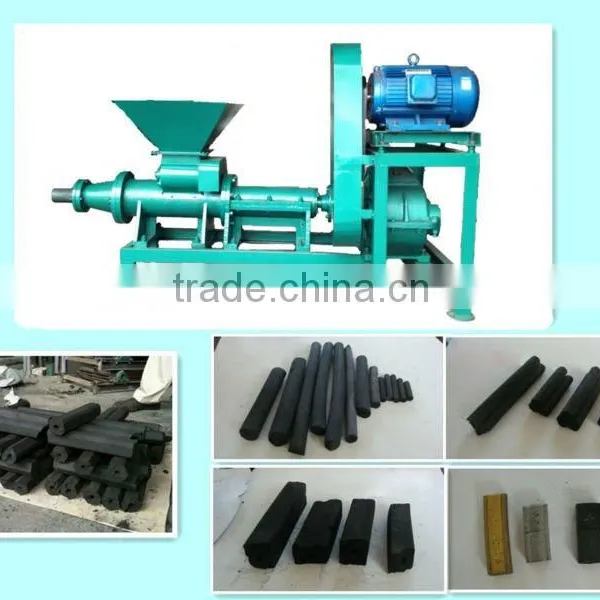

3. Final products:
Please contact :
