Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > Charcoal/coal Strip Extruding Machine From Licia

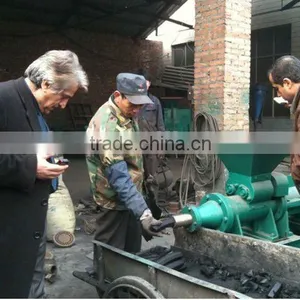

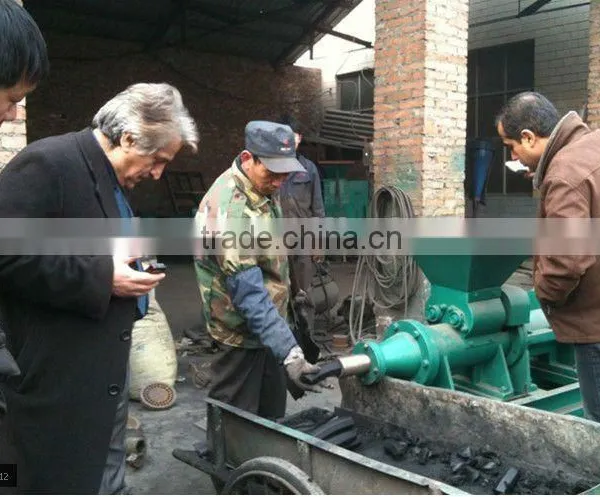

Charcoal/coal Strip Extruding Machine From Licia

Name: Charcoal/coal Strip Extruding Machine From Licia
Brand: Sanjin brand
SKU: 116452483
Availability: InStock

Charcoal/coal Strip Extruding Machine From Licia thumbnail-1

Charcoal/coal Strip Extruding Machine From Licia photo-1

US$ 1 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

charcoal machine, Other

Use:

produce biomass charcoal

Certification:

ISO

Contact Supplier Request Quote Chat Now

Gongyi Sanjin Charcoal Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or others

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type charcoal machine, Other

Use produce biomass charcoal

Certification ISO

Place of Origin Henan, China

Brand Name Sanjin brand

Specifications

Charcoal/coal strip extruding machine:
Modern techniques
quality is reliable
the pressure is strong.

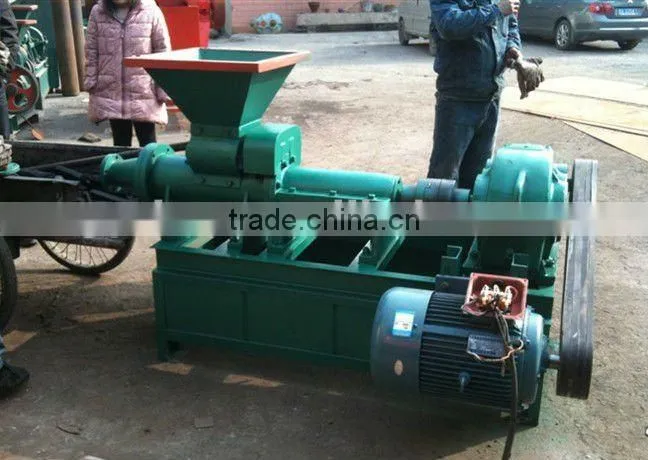

Charcoal/coal strip extruding machine from Licia

Introduction

Our stick shaping machine show the featurs of big capacity, low energy consumption, compact and durable. Many performance data such as capacity, coal bar density, eletricity consumption and wearable degree have reached advanced level. Our newly developed stick shaping machine can be used as charcoal powder shaping machine by replacement of some spare parts.

Working principle:

Coal bar machine can make powder-like raw coal to different shapes. Its working principle is: by the triangle belt, electromotor transmit the power to transmission. Transmission output shaft transmit the power to propeller shaft by floating coupling. Then the of propeller shaft extrude the coal material by the molding die head and produce the desired high-pressure coal bar

Technical data

Type Item	MBJ140	MBJ180	MBJ210	MBJ300	MBJ400
Type Item	MBJ140	MBJ180	MBJ210	MBJ300	MBJ400
Capacity	500kg/h	1000kg/h	1500kg/h	2000kg/h	3000kg/h
Dimension of final products	Diameter 20-40mm	diameter 20-60mm	diameter 20-80mm	diameter 20-80mm	diameter 20-80mm
Spindle Speed	46-60 rev/min	39-60 rev/min	35-60 rev/min	35-60 rev/min	35-60 rev/min
Quantity of helical blade	4	4	4	4	4
Motor	Y160m-4 11kw	Y180m-4 18.5kw	Y200L-4 30kw	Y225s-4 37kw	Y315m-4 160kw
Motor	Y160L-4 15kw	Y180L-4 22kw	Y225s-4 37kw	Y225m-4 45kw	Y315m-4 160kw
Speed reducer	ZQ350	ZQ400	ZQ500	ZQ650-750	ZQ850
Bearing	7511,211,210,1305	7614,314,313,1206	7619,319,318,1206	32320,320,319,1207	32322,322,321
Bearing	7511,211,210,1305	7614,314,313,1206	7619,319,318,1206	32320,320,319,1207	32322,322,321
