Help CenterCharcoal/coal Powder Making Machine
Related Products
-
HOT SALE Charcoal Briquette PressUS$ 2,000 - 6,000MOQ: 1 Set -
Charcoal Dust Rods Extruder MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
Various Shapes Product Coal Bar Briquetting MachineNegotiableMOQ: 1 Set
-
Various Shapes Product Coal Bar Press MachineNegotiableMOQ: 1 Set
-
Olive Coal Making MachineNegotiableMOQ: 1 Set
Specifications

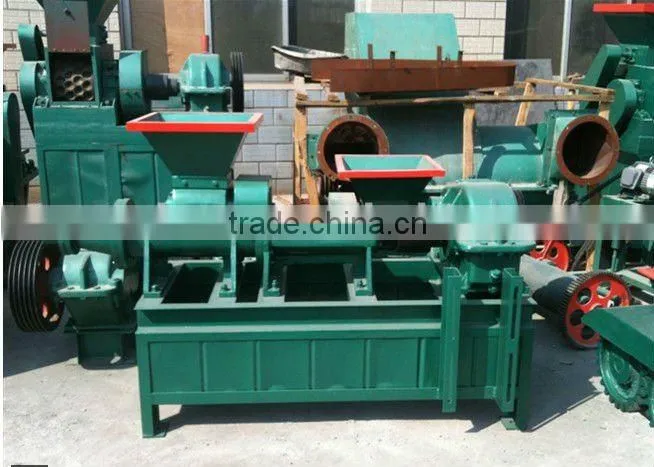

charcoal/coal powder making machine1. stable performance
2. energy saving
3. high productivity

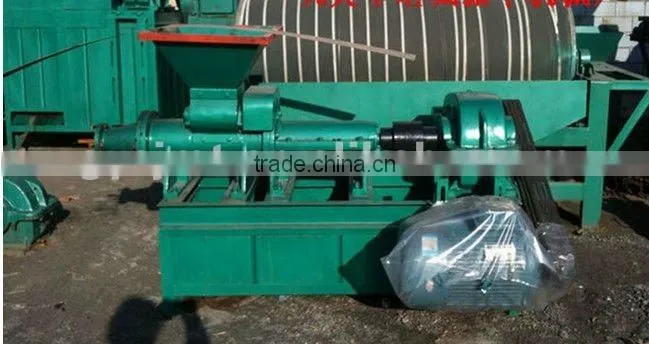

charcoal/coal extruder machine
1.Principle of Work

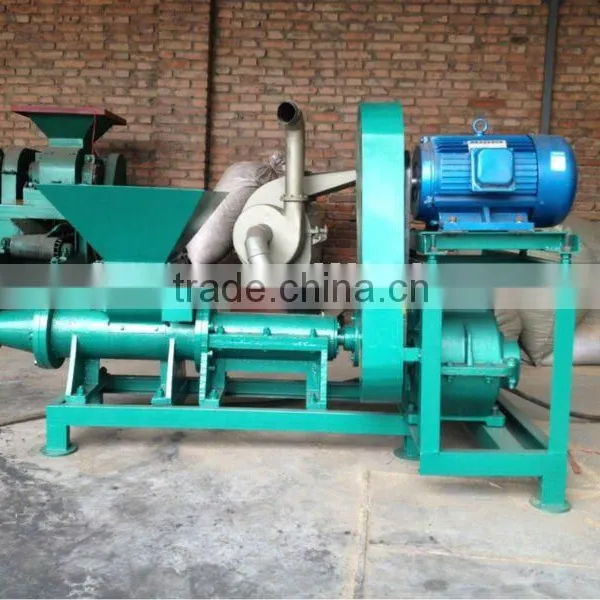

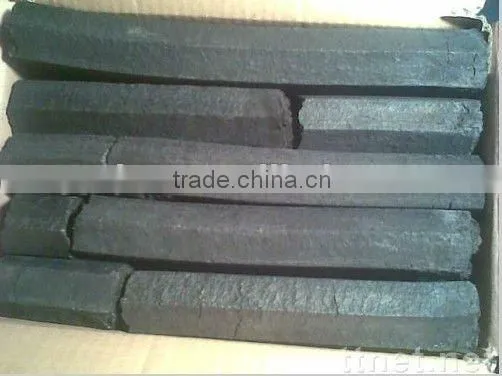

Coal extruder machine, which can make the powder of coal to different coal blocks shapes. The working principle is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.
2.The Main Technical Data and Outsourcing Standard Parts
Type Item |
MBJ140 |
MBJ180 |
MBJ210 |
MBJ300 |
MBJ400 |
Capacity |
500kg/h |
1000kg/h |
1500kg/h |
2000kg/h |
3000kg/h |
Dimension of final products |
Diameter 20-40mm |
diameter 20-60mm |
diameter 20-80mm |
diameter 20-80mm |
diameter 20-80mm |
Spindle Speed |
46-60 rev/min |
39-60 rev/min |
35-60 rev/min |
35-60 rev/min |
35-60 rev/min |
Quantity of helical blade |
4 |
4 |
4 |
4 |
4 |
Motor |
Y160m-4 11kw |
Y180m-4 18.5kw |
Y200L-4 30kw |
Y225s-4 37kw |
Y315m-4 160kw |
Y160L-4 15kw |
Y180L-4 22kw |
Y225s-4 37kw |
Y225m-4 45kw |
||
Speed reducer |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650-750 |
ZQ850 |
Bearing |
7511,211,210,1305 |
7614,314,313,1206 |
7619,319,318,1206 |
32320,320,319,1207 |
32322,322,321 |
Note |
This is the minimum speed of spindle. It can be adjusted on the basis of the current intensity, load and output. |
||||
