Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Z94 Series Automatic Small Nail Making Machine

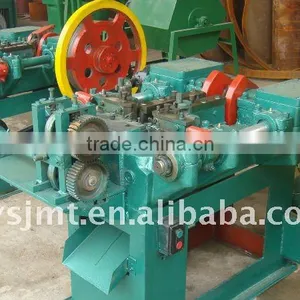

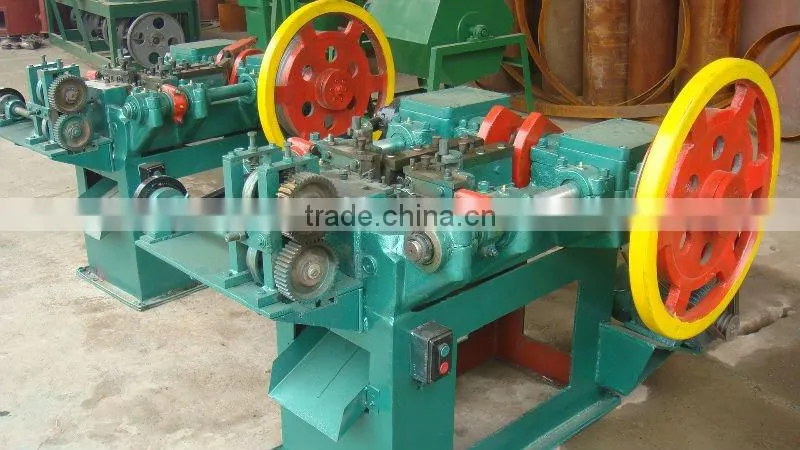

Z94 Series Automatic Small Nail Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
sanjin machine
Model Number:
2c,3c,4c,5c,5.5c
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Henan, China
Brand Name
sanjin machine
Model Number
2c,3c,4c,5c,5.5c
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.easy to operate2.higher capacity
3.energy saving
Z94 Type C New Generation High Speed, Low Noise, Automatic small nail making machine in china.This Z94 series,new type C small nail making machine in china adopt plunger structure and oil pipe lubrication so as to ensure the features such as high speed,low noise and less impact. Especially, it can make the high quality of clout nails and other special nails used for high speed coil nail welder and nail gun.
|
 Technical data |
Unit |
Z94 -6.5C |
Z94 -5.5C |
Z94 -4C |
Z94 -3C |
Z94 -2C |
Z94 -1C |
Dia of nail max |
mm |
6.5 |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
Dia of nail min |
mm |
4.5 |
3.7 |
2.8 |
1.8 |
1.2 |
0.9 |
Length of nail max |
mm |
200 |
150 |
100 |
75 |
50 |
25 |
Length of nail min |
mm |
100 |
80 |
50 |
30 |
16 |
9 |
Designed capacity |
pcs/min |
160 |
200 |
280 |
320 |
350 |
450 |
Motor power |
kw |
11 |
5.5 |
4 |
3 |
2.2 |
1.5 |
Weight(approx) |
kg |
5000 |
2500 |
2000 |
1600 |
1400 |
1200 |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1995
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
