Coil Nail Machine

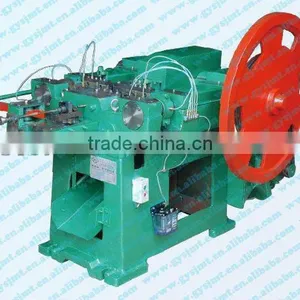

Coil Nail Machine photo-1
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
sanjin machine
Model Number:
Z94-2C
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name sanjin machine
Model Number Z94-2C

Specifications

automatic wire nail machine
1.diameter of nail:0.9-6.5mm
2.length of nail:9-150mm
3.capacity:450-160pcs/min

Automatic wire nail machine

Main feature of automatic wire nail machine:

Z94 Type C New Generation High Speed, Low Noise, Automatic wire nail machine

This new type wire nail  machines adopt plunger structure and oil pipe lubrication so as to ensure the features such as high speed,low noise and less impact. Especially, it can make the high quality of clout nails and other special nails used for high speed coil nail welder and nail gun.



This automatic wire nail machines have the reasonable structure ,excellent performance, advanced craftwork and the quality of products reaches the international advanced level.



This automatic wire nail machine can make all kinds of round steel. steel nail. oil rivet nail, corrugated nail, double cap nail. U nail. twist nail. horizontal line nail. pneumatic gun nail(also named code nail, straight nail, line nail or midge nail).

 Specification of automatic wire nail machine:



Technical data

Unit

Z94 -6.5C

Z94 -5.5C

Z94 -4C

Z94 -3C

Z94 -2C

Z94 -1C

Dia of nail max

mm

6.5

5.5

4.5

3.4

2.8

1.6

Dia of nail min

mm

4.5

3.7

2.8

1.8

1.2

0.9

Length of nail max

mm

200

150

100

75

50

25

Length of nail min

mm

100

80

50

30

16

9

Designed capacity

pcs/min

160

200

280

320

350

450

Motor power

kw

11

5.5

4

3

2.2

1.5

Weight(approx)

kg

5000

2500

2000

1600

1400

1200

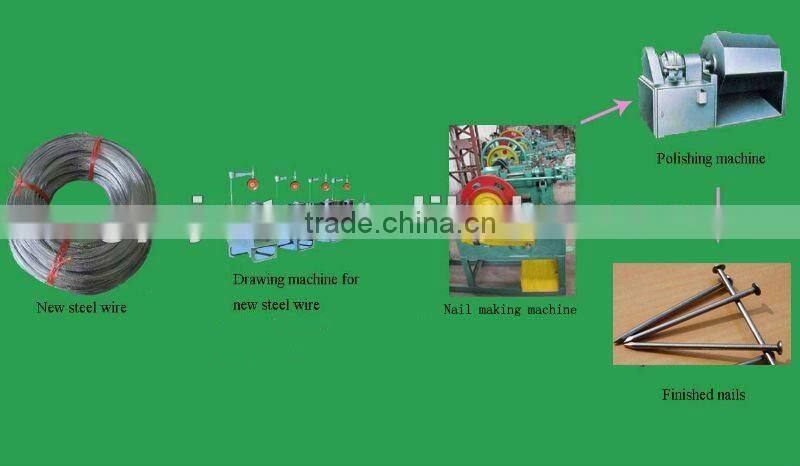

 Processing flow of automatic wire nail machine:

 steel wire ----wires-drawing ----nail-making ----polishing---- packingCoil nail machine

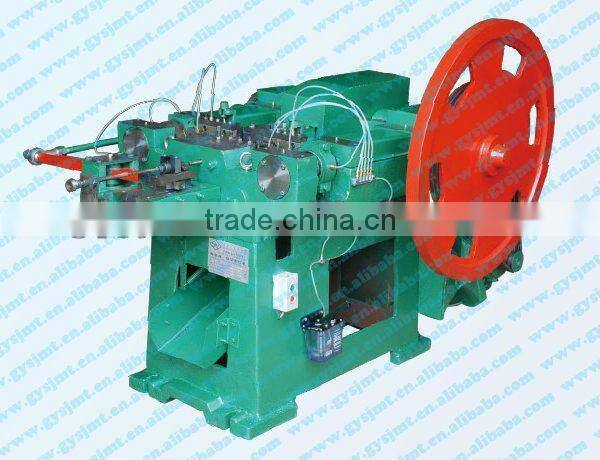

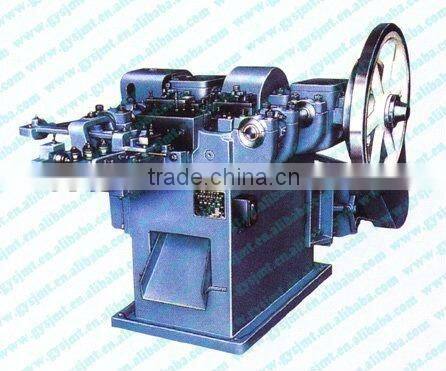

The show of automatic wire nail machine:

Coil nail machineCoil nail machine

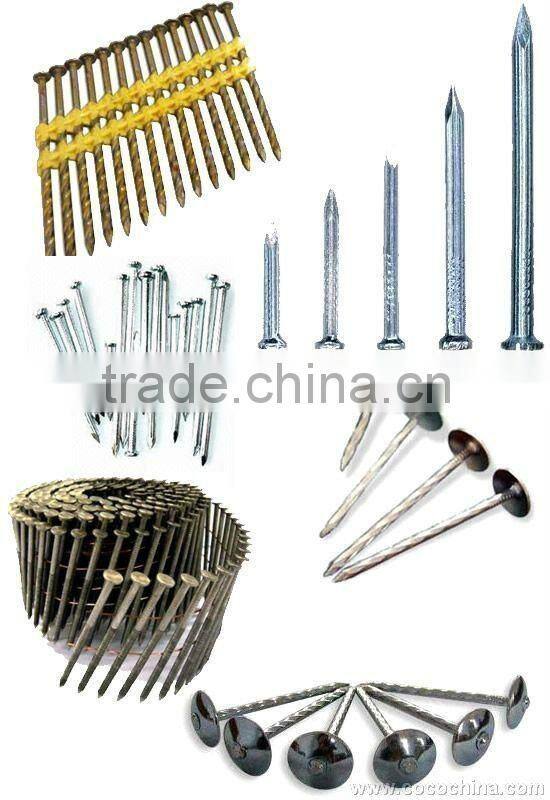

 The end products--nails of automatic wire nail machine:



 Coil nail machine
