Specifications
Common steel iron nail machine1.diameter of nail:2.8-4.5mm
2.length of nail:50-100mm
3.capacity:260pcs/min
4.power:4kw
Steel wire nail machine Steel wire nail machine
Main feature of Steel wire nail machine:
Name:Z94 Type C New Generation High Speed, Low Noise, Steel wire nail machine
This new type Steel wire nail machine adopt plunger structure and oil pipe lubrication so as to ensure the features such as high speed,low noise and less impact. Especially, it can make the high quality of clout nails and other special nails used for high speed coil nail welder and nail gun.
This automatic Steel wire nail machine have the reasonable structure ,excellent performance, advanced craftwork and the quality of products reaches the international advanced level.
This Steel wire nail machine can make all kinds of round steel. steel nail. oil rivet nail, corrugated nail, double cap nail. U nail. twist nail. horizontal line nail. pneumatic gun nail(also named code nail, straight nail, line nail or midge nail).
Specification of Steel wire nail machine:
|
Technical data |
Unit |
Z94 -6.5C |
Z94 -5.5C |
Z94 -4C |
Z94 -3C |
Z94 -2C |
Z94 -1C |
Dia of nail max |
mm |
6.5 |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
Dia of nail min |
mm |
4.5 |
3.7 |
2.8 |
1.8 |
1.2 |
0.9 |
Length of nail max |
mm |
200 |
150 |
100 |
75 |
50 |
25 |
Length of nail min |
mm |
100 |
80 |
50 |
30 |
16 |
9 |
Designed capacity |
pcs/min |
160 |
200 |
280 |
320 |
350 |
450 |
Motor power |
kw |
11 |
5.5 |
4 |
3 |
2.2 |
1.5 |
Weight(approx) |
kg |
5000 |
2500 |
2000 |
1600 |
1400 |
1200 |

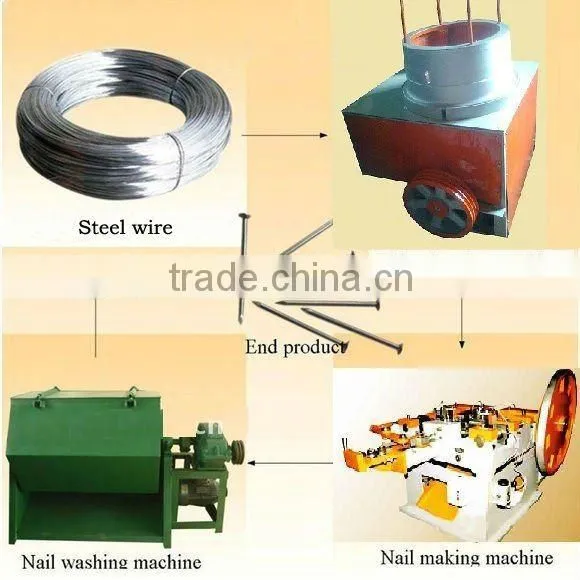

Processing flow of Steel wire nail machine:
steel wire ----wires-drawing ----nail-making ----polishing---- packing

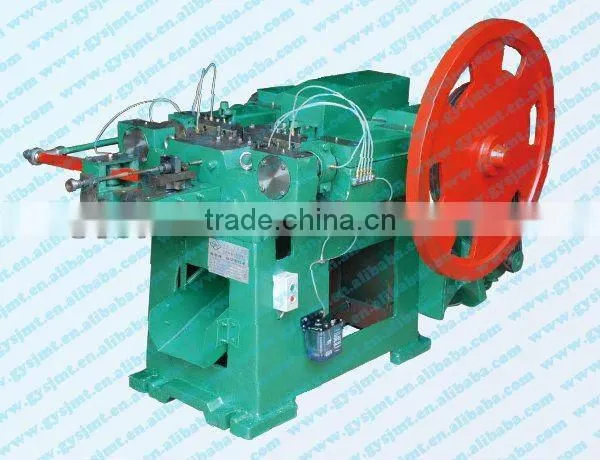

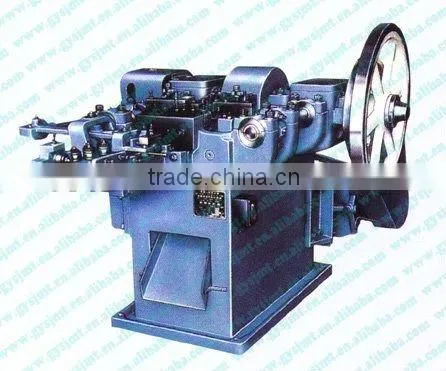

The show of Steel wire nail machine:

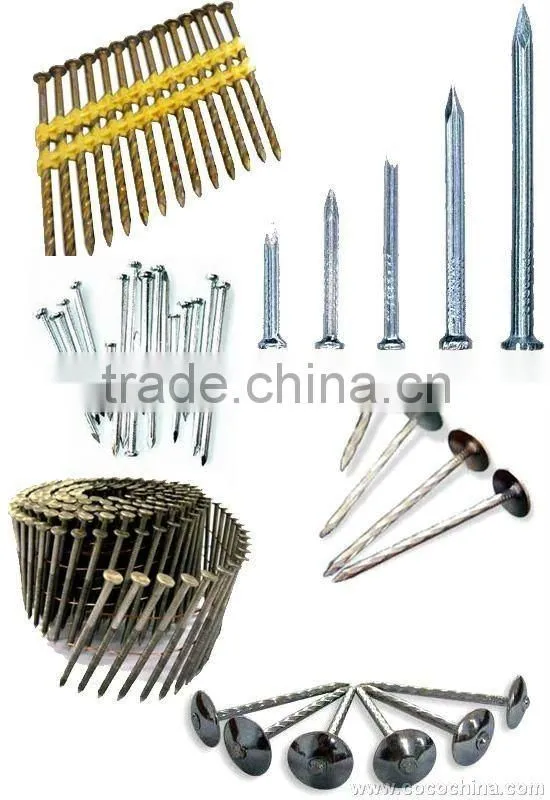

The end products--nails of Steel wire nail machine:
