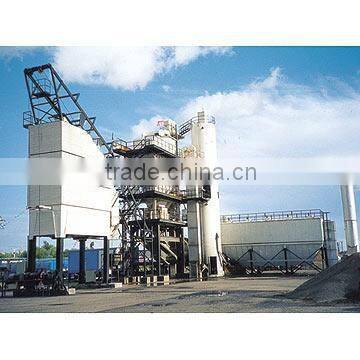

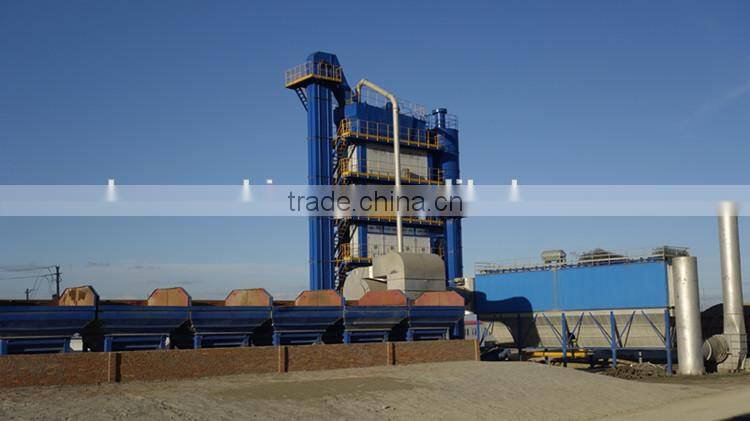

HM brand LB1000 asphalt batch mix plant FOR SALE with BEST PRICE

HM BRAND LB1000 asphalt batch mix plant FOR SALE with BEST PRICE

 specification

1.Competitive price, best service

2.ISO CE certificate

3.High quality,low cost

4.Best after-sale service

Advantages of asphalt batch mix plant

1.Comparatively lower operating and maintenance costs.

2.High efficient muti fuel burner for the drying and mixing drum is provided.

3.Thermally insulated drying drum.

4.asphalt batching plant is with modular units and designed for easy transportation and fast installation.

5.Minimum civil work required to be done at site.

6.The control panel is designed for ease of operation.

7.Ease of access for fast maintenance helping you to achieve maximum productivity.

8.Also available with wet dust collector in place of bag house filter for countries where pollution control norms are not stringent. Cheapest spare parts in the industry.

9.User friendly PLC control panel provided with option to store various types of hot mix recipes with possibility to change the recipes frequently.

The technical parameter

Model                                                              LB1000      LB1500       LB2000         LB3000         LB4000

Max theory productivity (t/h)                               80                 120            160              240              320

mixing tank capacity (kg)                                    1000             1500         2000            3000                4000

Aggregate measuring accuracy (%)                   ±0.5               ±0.5            ±0.5             ±0.5                ±0.5

Powder measuring accuracy (%)                        ±0.5               ±0.5             ±0.5            ±0.5                ±0.5

Asphalt measuring accuracy (%)                        ±0.3               ±0.3             ±0.3             ±0.3               ±0.3

Discharge height (m)                                           3.3                  3.3               3.3              3.3                 3.3

Dust cleaning efficiency (mg/Nm3)                      ≤100              ≤100             ≤100            ≤100             ≤100

The finished material temperature(°C)                160                 160               160             160               160

Total Power (kw)                                                   230                 360               490           660                 860

 Voltage (V)                                                          380                 380               380           380                  380

Main structure OF ASPHALT BATCH MIX PLANT

 Aggregate feeder by frequency conversion, reliable performance. The hopper is provided with an isolating net, and the feeding door is adjustable, and the lack of material is provided with an alarm; the main and passive roller of the belt conveyor is arranged on the side.

2.  Drying heating system

Drying drum wheel friction drive, smooth transmission, uniform stress, external insulation layer, reduce heat loss, improve the thermal efficiency; internal patent structure of drying drum provided material blade, high heat exchange rate, fuel consumption and low, discharge opening is provided with a temperature measuring device; fuel diversification choice; fuel is realized with mechanical coal feeding, automatic ignition, furnace automatic rotating, automatic walking, real-time temperature control function.

3.  Measurement system

Hot aggregate metering device: built-in pressure relief channel, guarantee the accuracy of the weighing signal stability; Weighing size door thickness, in combination with program automatically added impulse, high measuring accuracy.

Powder metering device: powder measurement using the double helix conveyer, new old powder, according to the superposition of proportion measurement can be realized with the method of measurement before delivery, at the same time conveying screw mixer, effectively guarantee the powder and stir evenly.

Metering and asphalt spraying device: asphalt secondary measurement, real-time dynamic tracking; High pressure spray shower type asphalt patent structure; The anti asphalt overflow protection device.

4.  Gas path system

Using the German FESTO solenoid valve, cylinder, reliable performance, long service life; gas path connection using quick connector, operation is simple and fast;

Air source after the water treatment, clean not plug, extend the service life of the cylinder; reserve gas source interface, easy to clean and other pneumatic tools.

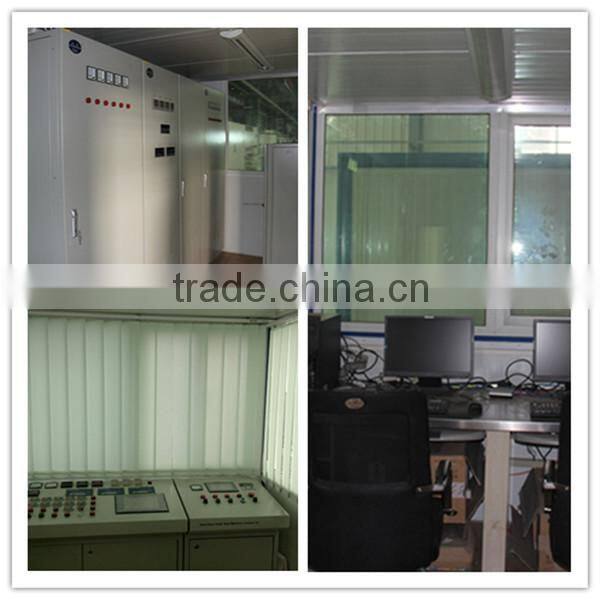

5.  Electrical control system

Main elements adopt international famous brand, stable and reliable operation; separation of strong and weak electricity by the main control room, comfortable office environment; industrial Ethernet and field bus technology, data transmission real-time and efficient; only know, semi - automatic and manual control of the, is convenient and flexible; maintenance predict, fault diagnosis and early warning, statements complete function, print function and practical; double Kang Yu operation, process dynamic display

Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality  asphalt mixing plant,  concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.

Certificates and customers

1. Why dose the customs choose our HAOMEI concrete mixer?

Specialize on manufacturing only asphalt mixing plant

Commitment used to serve clients as their solution partner.

What's the quality of your concrete mixer?

Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.

What’s more, LDX200Asphalt mixing plant is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.

2. When do you deliver the goods?

less than 30 days after the deposit.
