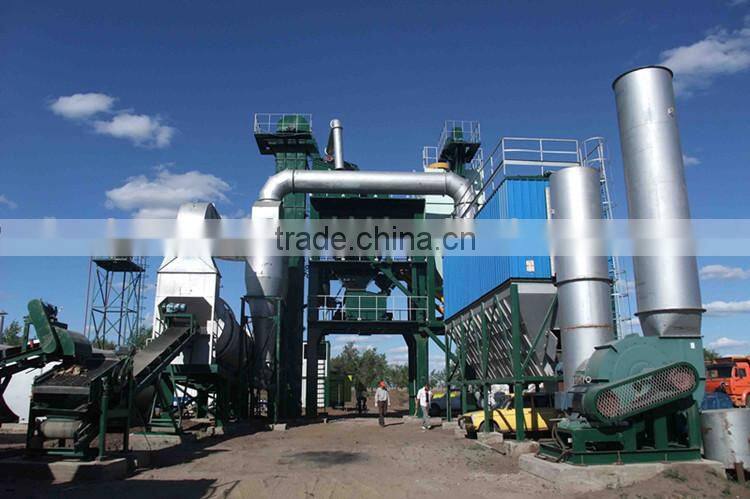

High quality new YLB Mobile Asphalt Plant with the Best Price
Product Features of YLB Series
1.Modular design, convenient and fast to move and install.
2.Screening, hot storage, weighting and mixing are on one folding frame, can realize main tower "one truck to trail".
3.Few transport vehicle, installation foundation need no special handle.
4.Compact design, cover very small area.
5.Accurate screening, weighting, batch mix can guarantee high quality.
6.International classic quality control system, has long distance fault detect and maintain function.
7.Each integration trailer is designed with "distributed" power distribution cabinet; all the connecting cables are connected before delivery, more convenient and safe.
.
Technical Parameters of YLB Series
Model YLB600 YLB800 YLB1000 YLB1500 YLB2000
Capacity 48 t/h 64 t/h 80 t/h 120 t/h 160 t/h
Mixer Capacity 600 kg/batch 800 kg/batch 1000 kg/batch 1500 kg /batch 2000 kg/batch
Fuel ConsumptionDiesel consumption: 5.5-7 kg/ton
Weighing PrecisionHot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2%
Hot AsphaltTemperature 130℃-165℃ (adjustable)
Air Emissions ≤ 20 mg/Nm³
Working Noise ≤ 70 db(A)
Operation Full Auto/Manual Operation
Installation Power 167 kW 208 kW 266 kW 333 kW 347 kW
Voltage 220V/380V-50Hz (adjustable)
Plant CovArea Length 35 m 40 m 40 m 45 m 50 m
Width 28 m 30 m 3 0 m 35 m 40 m
Height 15 m 15 m 15 m 17 m 17 m
Total Weight 79 t 115 t 128 t 153 t 205 t
DocumentsLay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate.
Main Structure& System of asphalt mixing plant
Cold Aggregate Feed Bin
Feature:
Steel frame foundation, each cold feed bin is modular design
The quantity (4/ 5/ 6 or more) of the cold feed bin is optional as your requirements.
. Drying Drum
Feature:
1.Steel frame foundation. The drum is made by heat resistance steel boiler plate.
2.Four-wheel friction drive, smooth transmission, low noise and long service life
3.The drive reducer adopts hard tooth surface reducer, with large load capacity and impact resistance.
4.The specially designed "butterfly" elastic connection plate will be more uniformly forced after the drum
5.heated expansion. It completely solved the elastic plate heat cracking problem.
6.The roller and roller carrier shaft using high quality alloy steel forging with long service life.
7.The external drum using high quality thermal insulation material plus stainless steel mask packaging, with favorable heat preservation performance and neat and beautiful appearance
Dust Collection System for asphalt plant
Feature:
Combined with primary gravity dust collecting and secondary bag house dust collector
The bag house dust collecting adopts high voltage pulse cleaning with less dust residue.
The bag is made of DuPont high efficiency dust filtering material, with low loss and long life.
The recycling dust can be reused and reduce environmental pollution.
Emission concentration is not more than 20mg/Nm3
Vibrating screen for Asphalt Plant
Feature:
Specifically designed for the asphalt mixing plant, the special vibrating screen will meet the requirements better.
The high wear-resistant screen mesh (65MN) with longer service life and lower maintenance costs.
The main parts are equipped with dust cover which can effectively prevent the dust. The operation environment is more eco-friendly.
Screen adopts drawer-type structure which makes the replacements and maintenance fast and convenient.
The front shield with roller support makes move back and forth more easily.
Vibrating screen bearings adopt international brand SFK

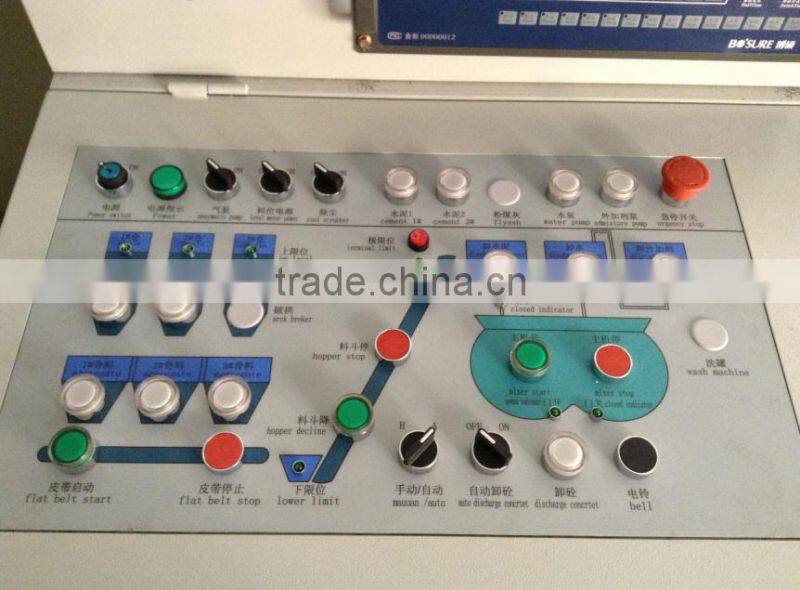

operation system
Feature:
Siemens electrical components
Siemens PLC (with remote detection and diagnosis function)
Siemens weighing module

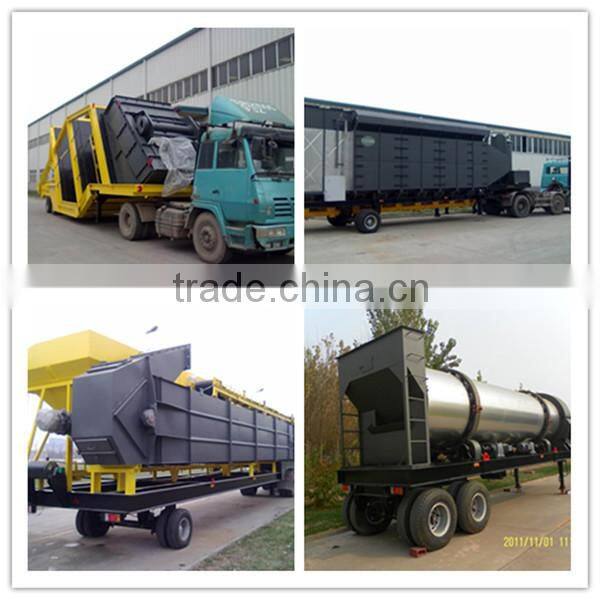

Pictures of Packing and shipping
The machine will be shipped under our supervision with careful packing, and it cant damage the products during the packing.
Pictures of packing and delivering
Pre-sale service
Suggest the best suitable products for customers according to their requirement, with sincere attitude
Try our best to Offer the technical service before installment.
Give our customers training for main problems and solution, maintenance and so on
During sale service
Supervising the whole process of producing and shipment and making sure our product deliver with good condition in time.
Offer all the necessary technical data to customer.
After sale service
Offer installment, debugging, and repairing service after customer receiving our products.
Offer work-site training.
Solve the customer’s complain at first time and try to arrive at the work site once get your notice.
We record every sold product on installment, debugging, and repairing situation. And provide professional maintenance advice.
We will visit customer timely to learn customer’s advice and new demand

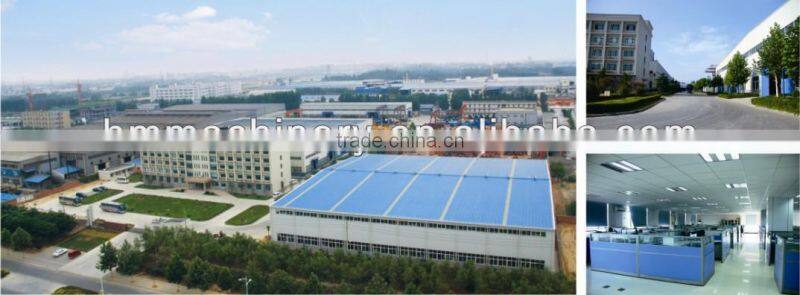

Haomei machinery equipment co.,Ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality asphalt mixing plant, concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS" to cooperate with clients from all over the world. Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches.
1. Why dose the customs choose our HAOMEI concrete mixer?
Specialize on manufacturing only asphalt mixing plant
Commitment used to serve clients as their solution partner.
What's the quality of your concrete mixer?
Rest assured that our products have got ISO, CE certificated. We have the professional team for the products' study and development.
What’s more, JS500 concrete mixer is on sale with a competitive price and I believe you will not miss this chance. We sincerely hope we can establish business relationship between us and welcome you visit our factory.
2. When do you deliver the goods?
less than 30 days after the deposit.
