787mm-2100mm Small Type Tissue Paper Machine,waste Paper Pulp
787mm-2100mm small type Tissue paper machine,waste paper pulp
Technical parameters
1. Output paper style: high& medium grade tissue paper;
2. Raw material: recycle paper, wood pulp;
3. Output paper weight: 16-40g/m2;
4. net paper width: 1092mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed
Structure of main part
1. Cylinder section: 1000mm×1450mm cylinder mould 1set, 380mm×1450mm couch roll 1set, rubber
hardness HSD 38±2.
2. Dryer section: 2000mm×1450mm dryer can 1set, 350mm×1450mm touch roll 1set, mechanical
press device. Rubber hardness HSD 90±2.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
All Equipments
NO. |
item |
quantity(set) |
1 |
1092mm tissue paper making machine |
1 |
2 |
double layer Exhausted hood of dryer can |
1 |
3 |
Φ700mm axial-flow ventilator |
1 |
4 |
Model-33 Roots vacuum pump |
1 |
5 |
1092mm winding machine |
1 |
6 |
1092mm rewinding &perforating machine |
1 |
7 |
1092mm paper cutting machine |
1 |
8 |
Suction box |
1 |
9 |
3m3high consistency hydrapulper |
1 |
10 |
0.9m2 High frequency vibration screen |
1 |
11 |
Φ380mm double disc pulp refiner |
1 |
12 |
35m3 bleacher |
2 |
13 |
Φ700mmThruster |
4 |
14 |
606sand remover 3 pcs |
1group |
15 |
4 inch pulp pump |
4 |
16 |
1ton boiler(burn coal) |
1 |
All accessory electric motor
NO. |
item |
power(kw) |
grade |
quantity(set) |
1 |
1092mm tissue paper making machine |
11 |
adjustable speed motor |
1 |
2 |
Φ700mm axial-flow ventilator |
4 |
4 |
1 |
3 |
1092mm rewinding &perforating machine |
3 |
adjustable speed motor |
1 |
4 |
1092mm paper cutting machine |
2.2 |
4 |
1 |
5 |
model 33 roots vacuum pump |
5.5 |
4 |
1 |
6 |
3m3high consistency hydrapulper |
37 |
6 |
1 |
7 |
0.9m2high frequency vibration screen |
3 |
4 |
1 |
8 |
Φ380mm double disc refiner |
37 |
4 |
1 |
9 |
35m3 pulp washer |
3 |
4 |
2 |
10 |
Φ700mm thruster |
11 |
6 |
4 |
11 |
4inch pulp pump |
5 |
4 |
4 |
12 |
1ton boiler(burn coal) |
5.5 |
4 |
2 |
Raw materials
Working flow

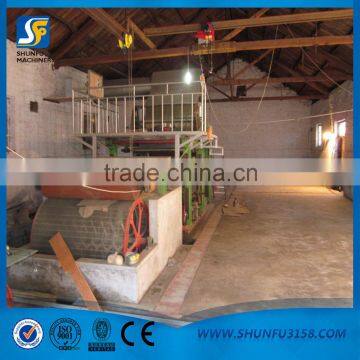

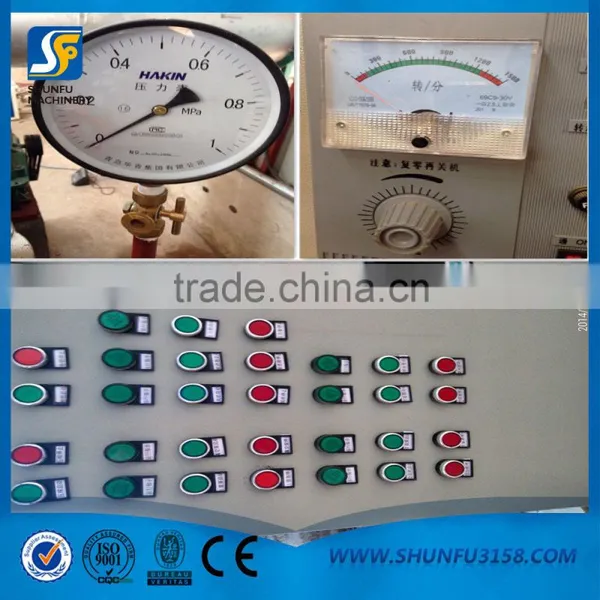

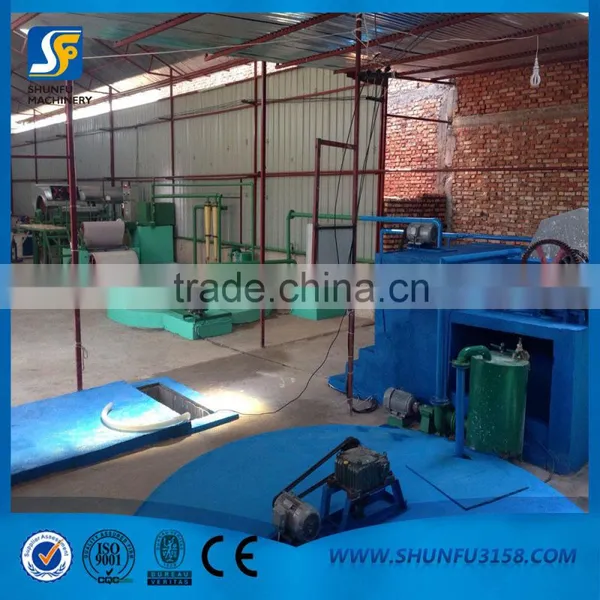

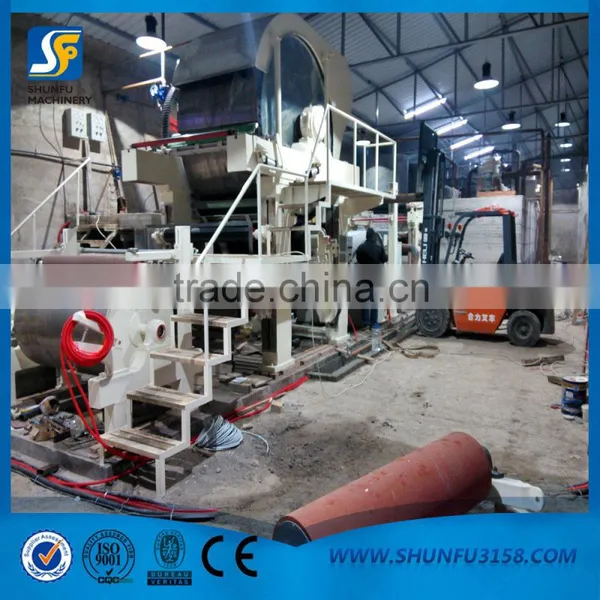

Main parts photos
After-sales service
1.we will delivery the machine as soon as possible according to your requirement,within 20days;
2.We will send rich practiced experience engineers to you to install and test the machine and train
your worker for free;
3.We will give you one year guarantee time after the machine can run well;
4.After one year,we can guide and help you to maintain the machines;
5.every 2 years,we can help to overhaul the complete machines for free;
6.we will send you spare part in lower price.
Company information
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper
egg tray making machine and paper processing equipment. Our products had been certificated
by ISO9001 and exported to many countries, such as Uzbekistan, Russia,Kyrgyzstan, Nigeria, Ukraine,Botswana,Libya, Algeria, El Salvador, Lebanon, Moldova,Bolivia.
Qinyang Shunfu Paper Making Factory professional in manufacturing Paper making machine.
We can design and prodcue product line according to customer's requirement.
Welcome to visit our factory!
