family and industrial use mini napkin paper machine Quality Choice
- 15 Set / Sets per Month
- Qingdao/Tianjin
- Automatic paper recycling machine for produce craft paper from www.frdpapermachine.com
- A4 copy paper manufacturing machine for sale
- 1575 mm high quality kraft paper manufacturing machine for sale
- CE 3200mm corrugated paper machine,carton recycled paper making machine
- 787mm toilet paper making machine for small toilet paper machine
- Whole Paper Making Production Line/Paper Making Machine/Pulp Making Machine
Product Details
Condition: | New | Product Type: | Paper Napkin Machine | Processing Type: | Embossing Machine |
Place of Origin: | Henan, China | Brand Name: | shun fu | Model Number: | 1092mm |
Voltage: | 220V/380V | Power(W): | 200-400KW | Dimension(L*W*H): | Configuration |
Weight: | 1500kg | Certification: | Other, ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
family and industrial use mini napkin paper machine
Technical parameters
1. Output paper style: high& medium grade tissue paper;
2. Raw material: recycle paper, wood pulp;
3. Output paper weight: 16-40g/m2;
4. net paper width: 1092mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7 Rail gauge:1880mm;
8 Drive way: AC inverter speed
Structure of main part
1. Cylinder section: 1000mm×1450mm cylinder mould 1set, 380mm×1450mm couch roll 1set,
rubber hardness HSD 38±2.
2. Dryer section: 2000mm×1450mm dryer can 1set, 350mm×1450mm touch roll 1set,
mechanical press device. Rubber hardness HSD 90±2.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
All Equipments
NO. | item | quantity(set) |
1 | 1092mm tissue paper making machine | 1 |
2 | double layer Exhausted hood of dryer can | 1 |
3 | Φ700mm axial-flow ventilator | 1 |
4 | Model-33 Roots vacuum pump | 1 |
5 | 1092mm winding machine | 1 |
6 | 1092mm rewinding &perforating machine | 1 |
7 | 1092mm paper cutting machine | 1 |
8 | Suction box | 1 |
9 | 3m3high consistency hydrapulper | 1 |
10 | 0.9m2 High frequency vibration screen | 1 |
11 | Φ380mm double disc pulp refiner | 1 |
12 | 35m3 bleacher | 2 |
13 | Φ700mmThruster | 4 |
14 | 606sand remover 3 pcs | 1group |
15 | 4 inch pulp pump | 4 |
16 | 1ton boiler(burn coal) | 1 |
All accessory electric motor
NO. | item | power(kw) | grade | quantity(set) |
1 | 1092mm tissue paper making machine | 11 | adjustable speed motor | 1 |
2 | Φ700mm axial-flow ventilator | 4 | 4 | 1 |
3 | 1092mm rewinding &perforating machine | 3 | adjustable speed motor | 1 |
4 | 1092mm paper cutting machine | 2.2 | 4 | 1 |
5 | model 33 roots vacuum pump | 5.5 | 4 | 1 |
6 | 3m3high consistency hydrapulper | 37 | 6 | 1 |
7 | 0.9m2high frequency vibration screen | 3 | 4 | 1 |
8 | Φ380mm double disc refiner | 37 | 4 | 1 |
9 | 35m3 pulp washer | 3 | 4 | 2 |
10 | Φ700mm thruster | 11 | 6 | 4 |
11 | 4inch pulp pump | 5 | 4 | 4 |
12 | 1ton boiler(burn coal) | 5.5 | 4 | 2 |
Euipment Details
Raw material

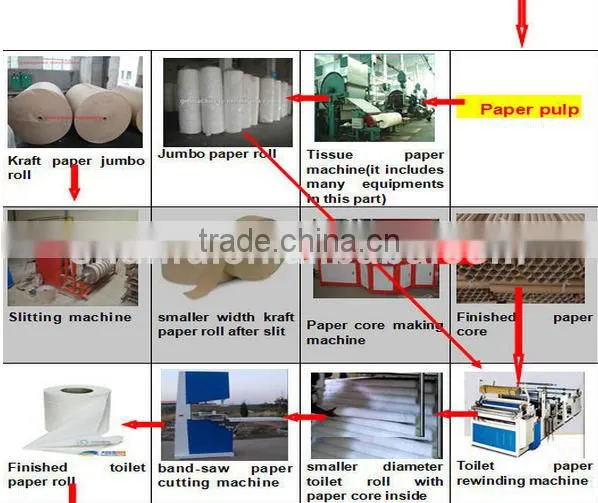

Flow chart

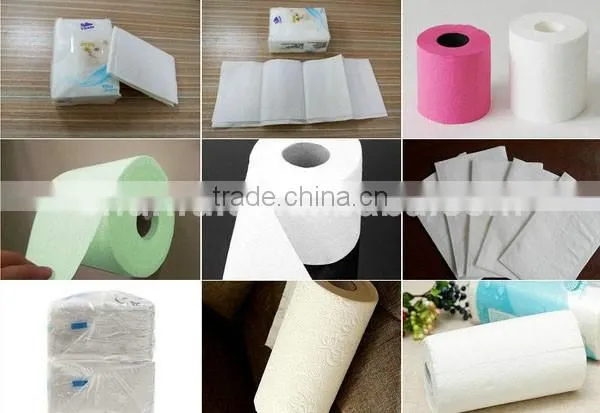

Finished product
Packaging and transportation
Company information
How to contact us
