787mm-2100mm small type Tissue paper machine,1-6T/D, waste paper,
pure wood pulp
Technical parameters
1. Output paper style: high& medium grade tissue paper;
2. Raw material: recycle paper, wood pulp;
3. Output paper weight: 16-40g/m2;
4. net paper width: 1092mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed
Structure of main part
1. Cylinder section: 1000mm×1450mm cylinder mould 1set, 380mm×1450mm couch roll 1set, rubber
hardness HSD 38±2.
2. Dryer section: 2000mm×1450mm dryer can 1set, 350mm×1450mm touch roll 1set, mechanical
press device. Rubber hardness HSD 90±2.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
All Equipments
NO. |
item |
quantity(set) |
1 |
1092mm tissue paper making machine |
1 |
2 |
double layer Exhausted hood of dryer can |
1 |
3 |
Φ700mm axial-flow ventilator |
1 |
4 |
Model-33 Roots vacuum pump |
1 |
5 |
1092mm winding machine |
1 |
6 |
1092mm rewinding &perforating machine |
1 |
7 |
1092mm paper cutting machine |
1 |
8 |
Suction box |
1 |
9 |
3m3high consistency hydrapulper |
1 |
10 |
0.9m2 High frequency vibration screen |
1 |
11 |
Φ380mm double disc pulp refiner |
1 |
12 |
35m3 bleacher |
2 |
13 |
Φ700mmThruster |
4 |
14 |
606sand remover 3 pcs |
1group |
15 |
4 inch pulp pump |
4 |
16 |
1ton boiler(burn coal) |
1 |
All accessory electric motor
NO. |
item |
power(kw) |
grade |
quantity(set) |
1 |
1092mm tissue paper making machine |
11 |
adjustable speed motor |
1 |
2 |
Φ700mm axial-flow ventilator |
4 |
4 |
1 |
3 |
1092mm rewinding &perforating machine |
3 |
adjustable speed motor |
1 |
4 |
1092mm paper cutting machine |
2.2 |
4 |
1 |
5 |
model 33 roots vacuum pump |
5.5 |
4 |
1 |
6 |
3m3high consistency hydrapulper |
37 |
6 |
1 |
7 |
0.9m2high frequency vibration screen |
3 |
4 |
1 |
8 |
Φ380mm double disc refiner |
37 |
4 |
1 |
9 |
35m3 pulp washer |
3 |
4 |
2 |
10 |
Φ700mm thruster |
11 |
6 |
4 |
11 |
4inch pulp pump |
5 |
4 |
4 |
12 |
1ton boiler(burn coal) |
5.5 |
4 |
2 |
Process Flow Diagram
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——
bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure
sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——
blanket——paper making machine——drying——roll paper——the big finished jumbo paper
—— process machine

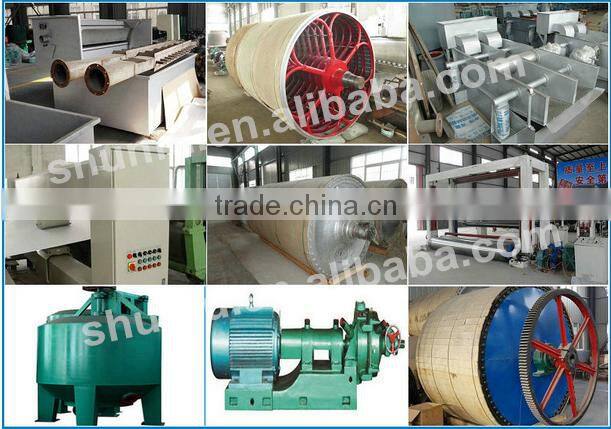

Main machines
After Sale Service
1,The company strictly in accordance with the signed device configuration and technical
requirements, according to the national industry standard for design and manufacturing, and
guaranteed to the user's device is compliant qualified products.
2,After the commencement of the contract, within ten days of the equipment design and manufacturing
company, End-user installation process coordination, convergence,and inspection;business contacts
on both side of the letter have to be back within 8 hours.
3,In accordance with the mutually agreed time and the cycle for equipment installation, and
commissioning.
4,Equipment quality and shelf life of one year,the vulnerability is not within the guarantee period.
Package of quality roller shelf life of six months. Refers to all goods shipped to the user. The date of
acceptance for the quality of shelf life.
5,The quality warranty period, the company free of charge to provide the necessary technical
services. Occurred as a result of equipment design, manufacturing quality problems lead to
equipment, the company will responsible for replacement and maintenance.
6,After shelf life, the company provide customers with technical services for life, and long-term to price
7,The company responsible for all production technologies an installation, conferred to production
workers, ensure that the church workers to operate.
