LF-UV-2000S ozone meter/ozone sensor/ozone analyzer
Technical Parameters:
Measure range: 0-200 g/m3;
Display resolution: 0.01 g/m3;
Pump suction gas flow: 1.0L±0.2L/min;
Input pressure: <0.1MPa;
Zero drift: < 0.1%.FS (MAX±0.2 g/m3)
The sampling hole diameter: diameter of 6 (6mm*4mm)
Detection accuracy: ±3% readings
Communication mode: RS-485;
Output mode: 4-20mA, linear;
Power supply: AC 110-220V;
Size: 155*78*240mm;
Hole size: 145*68mm;
Note: 1mg/L=1g/m3=467PPM
Net weight: 2KGS;
Technical characteristics
Measuring principle: Lambert's law and Bill's law;
Test method: Double beam UV absorption method;
Light source: long-life UV lamp (wavelength 253.7nm);
Light pool: Separate style light pool;
Intelligent compensation: Light source automatic compensation function;
Automatic zero: Zero calibration every1 ;

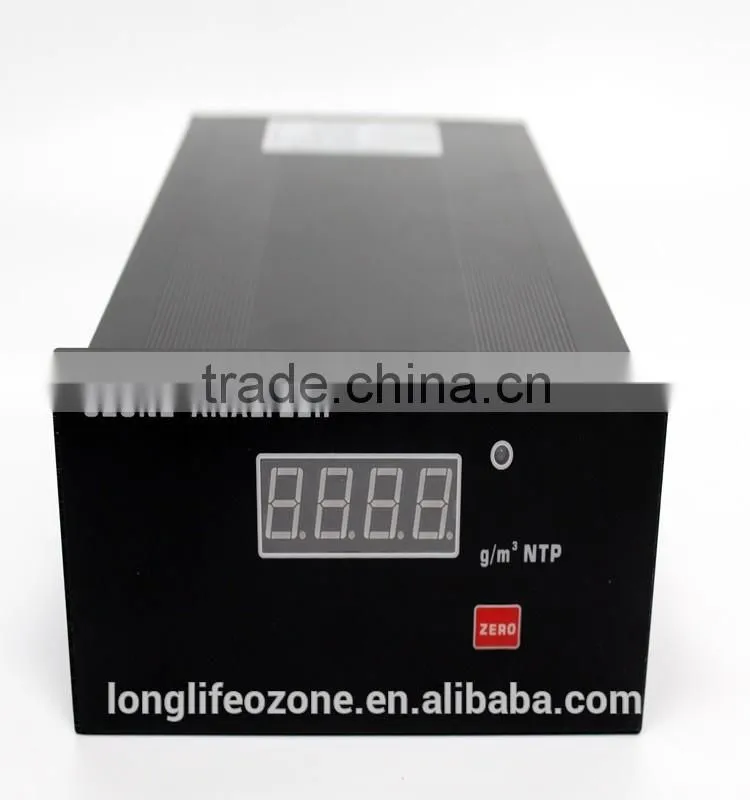

Data show: High-definition digital backlight display and easy to read;

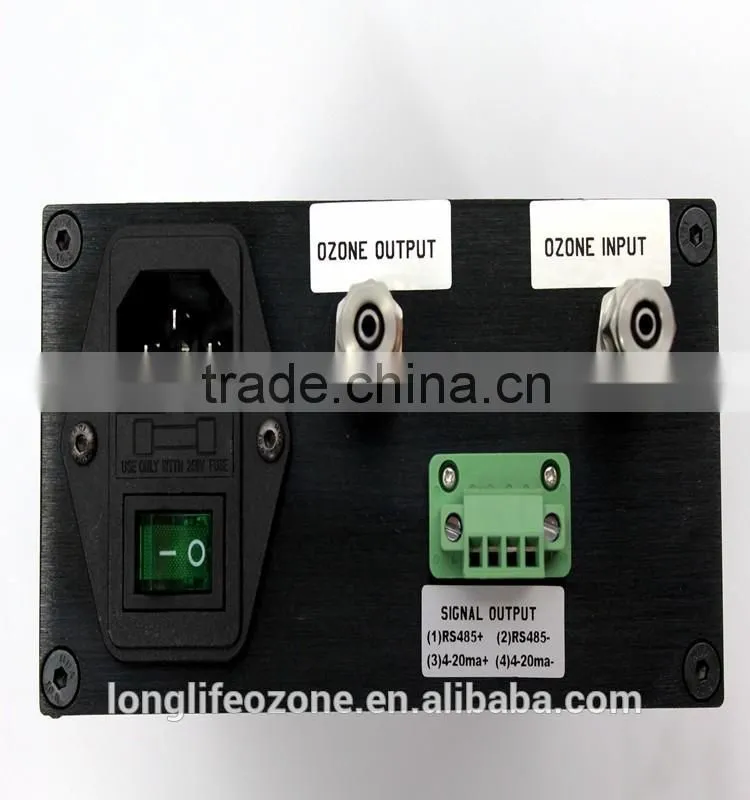

Function: 4-20mA output current signal; RS485 communication;

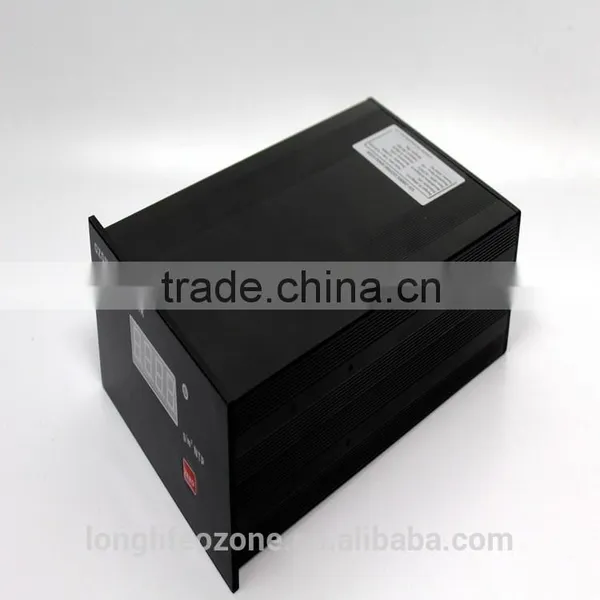

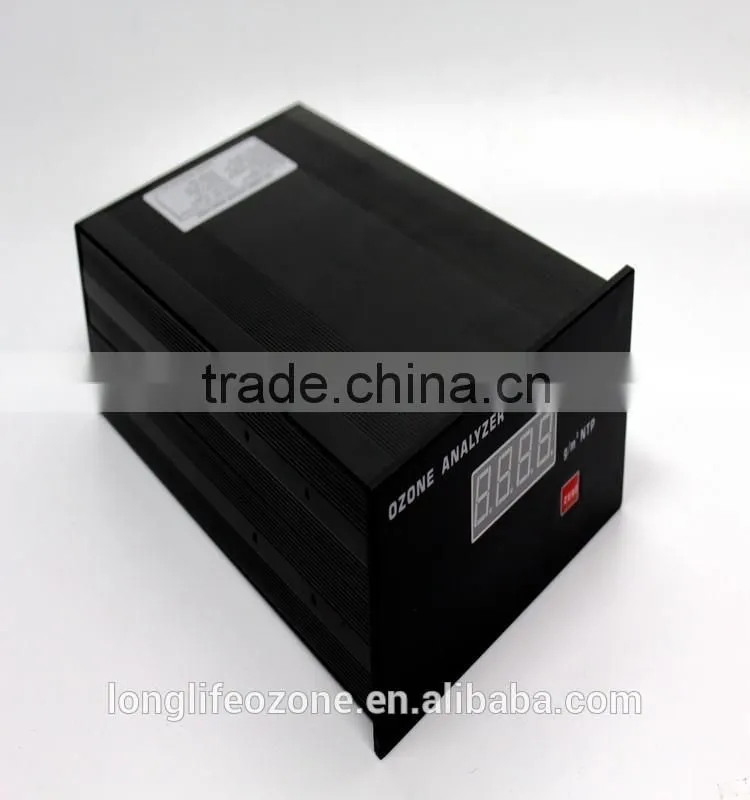

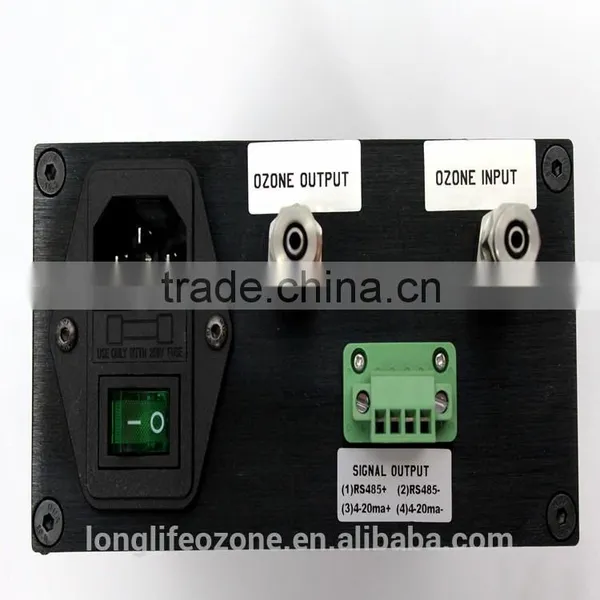

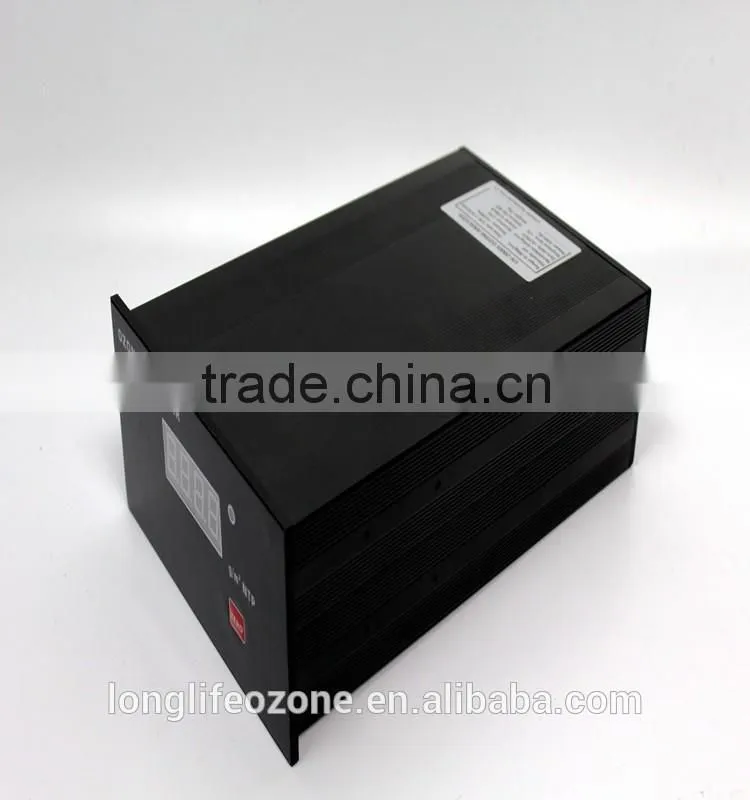

Main Product Photo

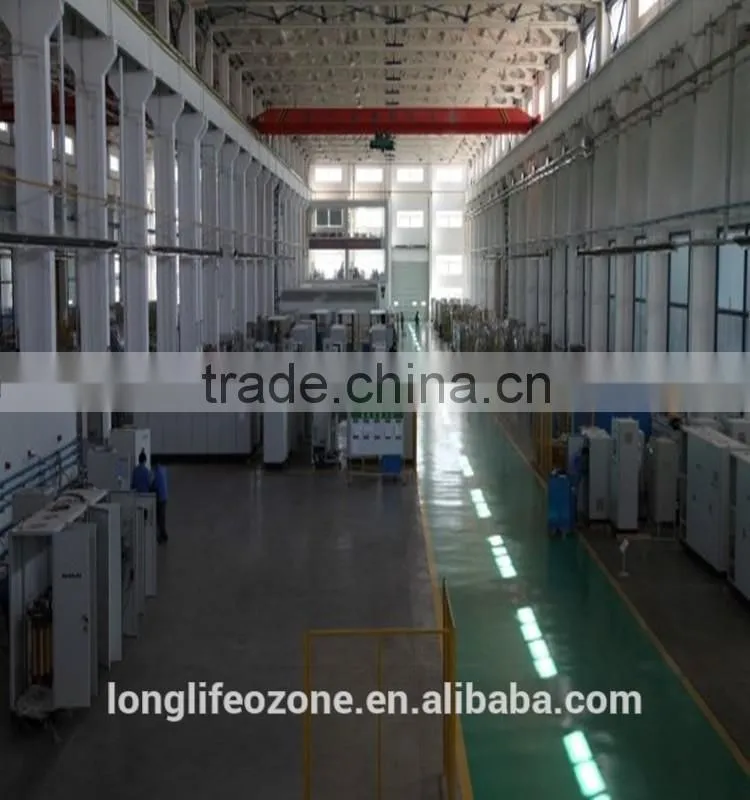

Factory

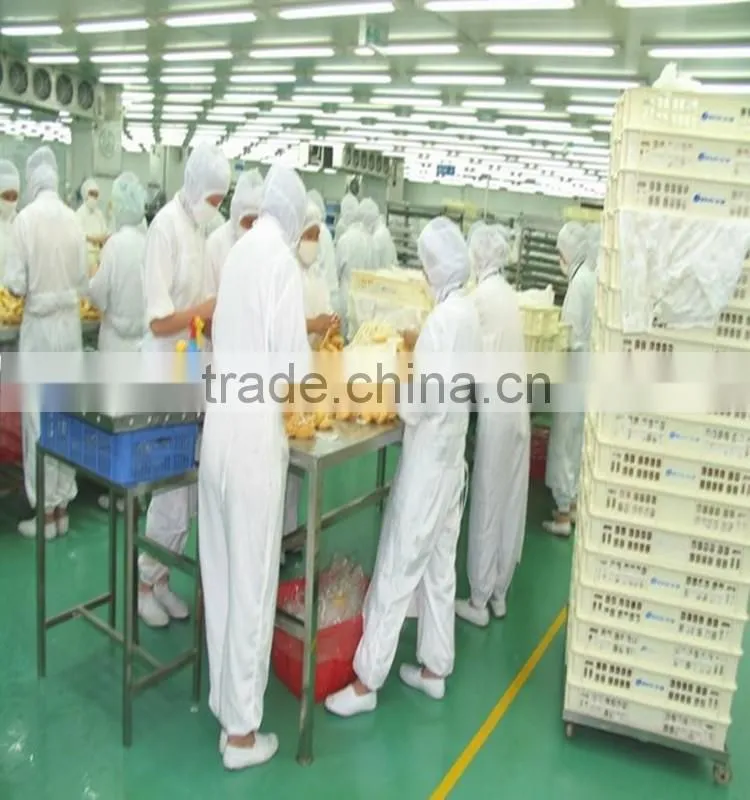

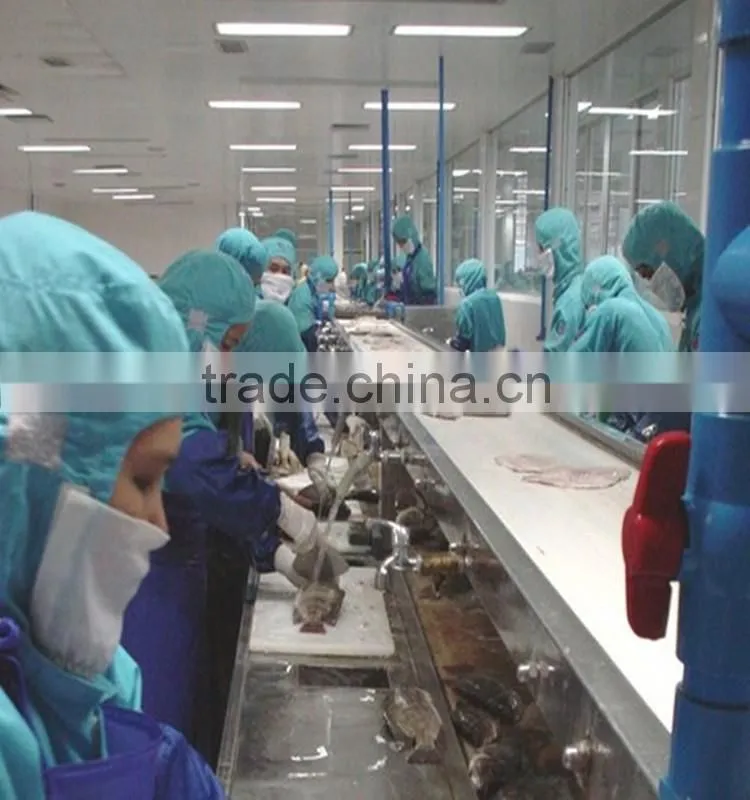

Application
Certificate
