Rebar Thread Rolling Machine LBG-40E

Specifications

Rebar Thread Rolling Machine LBG-40E
1.Dimension(L*W*H):1050*440*1000mm
2.Thread Angle:60/70/75
3.Voltage:380V 50HZ
4.MOQ:1

Production Description

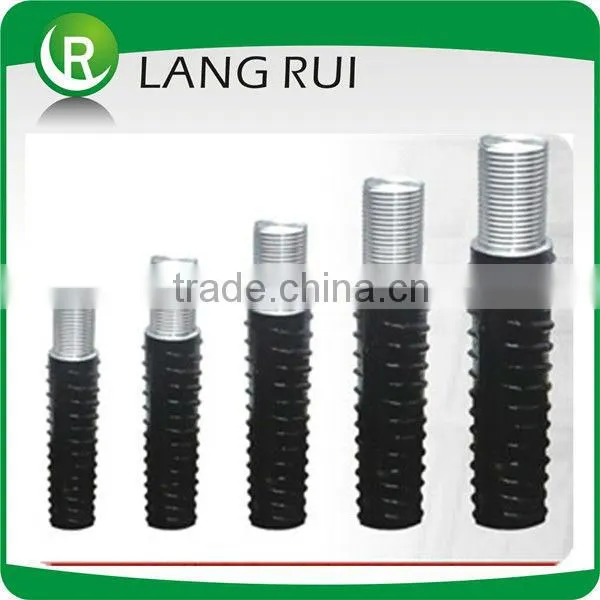

• LBG-40E is equipment which mainly used to process the ribbed rebar to make parallel thread screw
• It can process the ribbed rebar of Φ 14-Φ 40mm,grade HRB335and HRB400

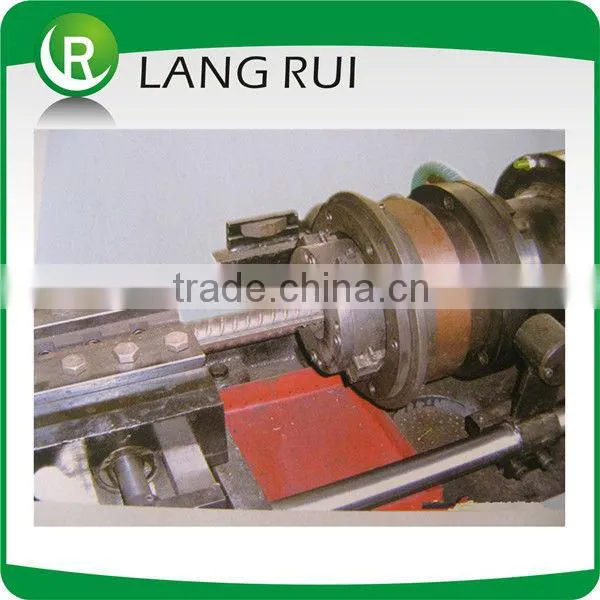

• LBG-40E rebar thread rolling machine can complete the screw thread making in one time loading which contains rib peeling rolling and stamping

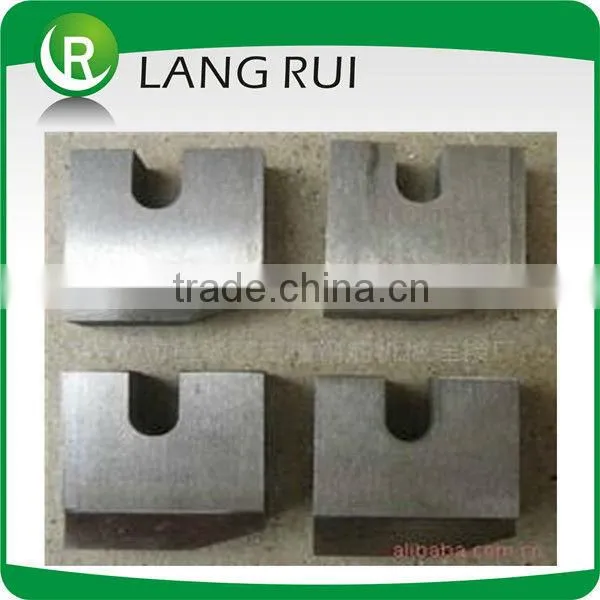

• The operation principle of rebar thread rolling machine, first use cutter to cut the rib ,then use rolling wheel to roll into parallel thread screw It can process the ribbed rebar of Φ 14-Φ 40mm. operation is simple ,and Easy construction





Specification

SPEC.LIST FOR THREAD ROLLING MACHINE
Type	Power Voltage (V)	Power Rate (Kw)	Max.Thread length(mm)	Net Weight (KG)	Thread Angle	Machining Diameter (mm)	Overall Dimensions   (mm)
40E	380V50Hz	4	100	500	60º	Φ16-Φ40	1050×440×1000



	Dia. of Rebar	Φ14-Φ22	Φ25-Φ32	Φ36-Φ40

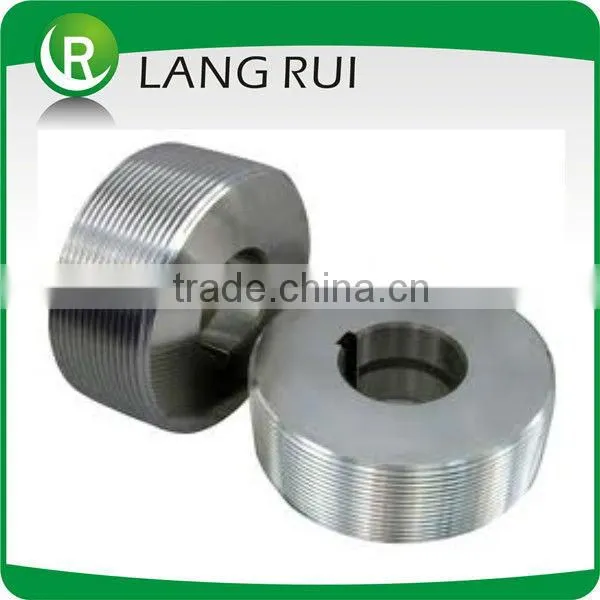

	Outer Dia. Of Threading Roller	60mm	60mm	56mm
There are 3 sizes:	Length	45mm	45mm	45mm
Size Φ16-Φ22	Inner Diameter	30mm	30mm	30mm
Size Φ25-Φ32	Thread Pitch	2.5mm	3mm	3mm
Size Φ36-Φ40	Material	Gr12Mov

Our Advantages







1.From raw material to finished product.

2.Strict raw material inspection system.

3.Online testing system.

4.Perfect production process.

5.Strictly control quality for each process

6.Fasthigh-quality, comprehensive after-sales service.
