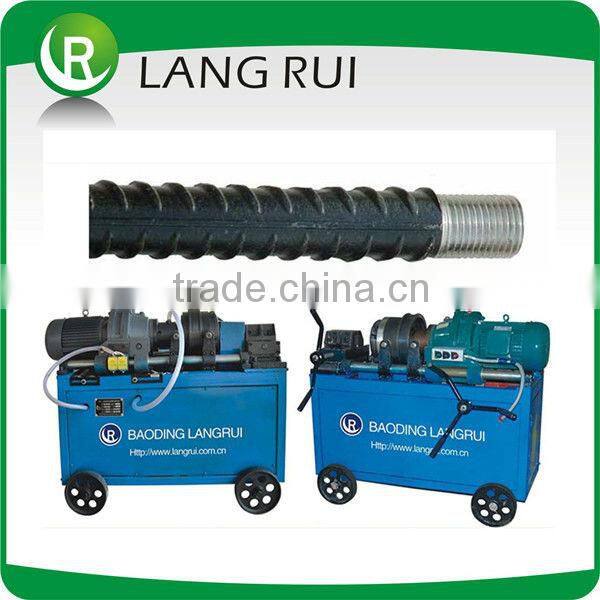

Rebar Straight Thread Rolling Machine

Specifications

Rebar Straight Thread Rolling Machine
1.Dimension(L*W*H):1050*440*1000
2.Thread Angle:60/70/75
3.Voltage:380V 50HZ
4.MOQ:1

Production Description

LBG-40E is equipment which mainly used to process the ribbed rebar to make parallel

thread screw.



It can process the ribbed rebar of Φ 14-Φ 40mm,grade HRB335and HRB400.



LBG-40E rebar thread rolling machine can complete the screw thread making in one

time loading which contains rib peeling rolling and stamping



The operation principle of Rebar Straight Thread Rolling Machine , first use cutterto cut

the rib ,then use rolling wheel to roll into parallel thread screw It can process the ribbed

rebar of Φ 14-Φ 40mm. operation is simple ,and Easy construction.



Name	Technical data
Brand	Langrui
Weight	500 kg
Dia of rebar	14mm-40mm
Voltage	380 V 50 HZ
Rotate speed	40-62 r/min
Place of Origin	Hebei, China
Motor Potor	4 kw
Length of thread	100 mm
Model	LBG-40E







Rolling Wheel Specification

	Dia. of Rebar	Φ14-Φ22	Φ25-Φ32	Φ36-Φ40
	Outer Dia. Of Threading Roller	60mm	60mm	56mm
There are 3 sizes:	Length	45mm	45mm	45mm
Size Φ16-Φ22	Inner Diameter	30mm	30mm	30mm
Size Φ25-Φ32	Thread Pitch	2.5mm	3mm	3mm
Size Φ36-Φ40	Material	Gr12Mov







Application

1.Rebar Straight Thread Rolling Machine  can process rebars of HRB 335 and HRB 400

with dia from 14 mm to 40 mm.

2.Rebar Straight Thread Rolling Machine  has the unique self opeining die head. The

rebar is clamped only once and the rebar head with screw thread can be processed

within 30 seconds.

3.The processing of the parallel thread adopts sold rolling technology . The rebar head

has no false thread. The thread size is precise.

4.The process does not destroy the bottom diameter of the base material. The splicing

strength is stronger than that of the parent material

5.Reasonable design. There is only one handpiece left and right-handed thread , which

is quite easy to operate and maintain. The cutting tool can be replaced for only 3-5 minutes
