High Quality LBG-40E Rebar Rolling Machine

Name: High Quality LBG-40E Rebar Rolling Machine
Brand: Langrui
SKU: 115778309
Availability: InStock

US$ 1,000 - 2,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Langrui

Model Number:

LBG-TM-40E

Hebei Langrui Environmental Engineering Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Langrui

Model Number LBG-TM-40E

After-sales Service Provided Engineers available to service machinery overseas

Specifications

High Quality LBG-40E Rebar Rolling Machine
1.Rotate speed:40-62 r/min
2.Thread Angle:60/70/75
3.Voltage:380V
4.MOQ:1set

Brand name: Langrui

Rebar No.: rebar dia for 14mm-40mm

Model Name: High Quality LBG-40E Rebar Rolling Machine

Voltage:380V

Head Rotate Speed: 40-62r/min

The Max Thread Length:100mm

Feature: Easy and convenient operation; No Pollution; No more Material Waste; No striction of the weather

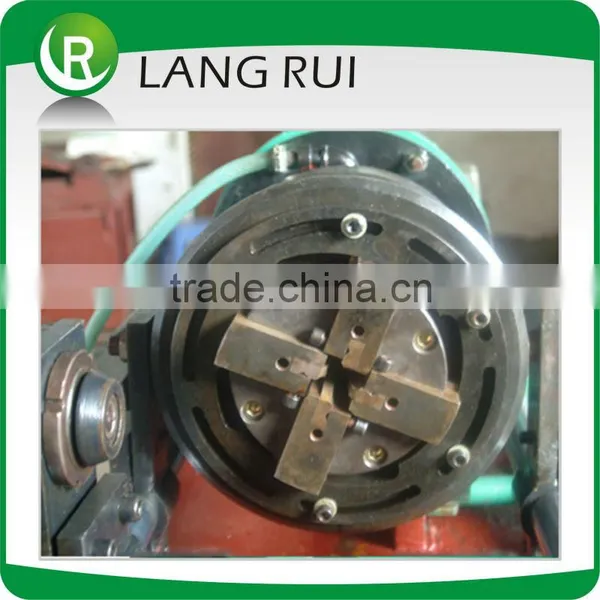

Details show

Application

can process rebars of HRB 335 and HRB 400 with dia from 14 mm to 40 mm.
has the unique self opeining die head. The rebar is clamped only once and the rebar head with screw thread can be processed within 30 seconds.
The processing of the parallel thread adopts sold rolling technology . The rebar head has no false thread. The thread size is precise.
The process does not destroy the bottom diameter of the base material. The splicing strength is stronger than that of the parent material
Reasonable design. There is only one handpiece left and right-handed thread , which is quite easy to operate and maintain. The cutting tool can be replace only 3-5 minutes

Rolling Wheel Specification:

	Dia. of Rebar	Φ16-Φ2	Φ25-Φ32	Φ36-Φ 40
	Outer Dia. Of Threading Roller	78.3mm	70mm	60mm
	Outer Dia. Of Threading Roller	78.3mm	70mm	60mm
There are 3 sizes:	Length	45mm	45mm	45mm
Size Φ16-Φ22	Inner Diameter	30mm	30mm	30mm
Size Φ25-Φ32	Thread Pitch	2.5mm	3mm	3.5mm
Size Φ36-Φ40	Material	Gr12Mov
