Enery Saving Mini Ball Mill

Enery Saving Mini Ball Mill thumbnail-1
Enery Saving Mini Ball Mill photo-1
US$ 5,258 - 98,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao; Lian Yungang; Shanghai Ningbo etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 22
Capacity(t/h) 1.1-3.5
Place of Origin Henan, China
Brand Name Tengfei
Model Number 900*3000
Dimension(L*W*H) 7.3 x 3.4 x 2.8 m
Weight 4.6 t
Certification ISO; CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Mini Ball Mill:
1. Wet overflow ball mill
2. Low energy consumption
3. Whole base support, high quality

Mini Ball Mill





 Henan Teng Fei Machine Manufacturing Co., Ltd. is a professional machine mining manufacturer with decades of years' experience. Our mainproduct are Grinding Mill, Raymond Mill, Superfine Grinder, Crushers,Dryer,Ball Mill, Sand making&washing machines, vibrating screens, etc.







Product Description
Type Mineral Ore Powder Making
Input Size 20 mm
Discharge Size 0.075-0.89 mm
Proceed Materials Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, copper ore, gold ore,quartz, active carbon, carbon black, ceramic, coal, ect.
Application Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

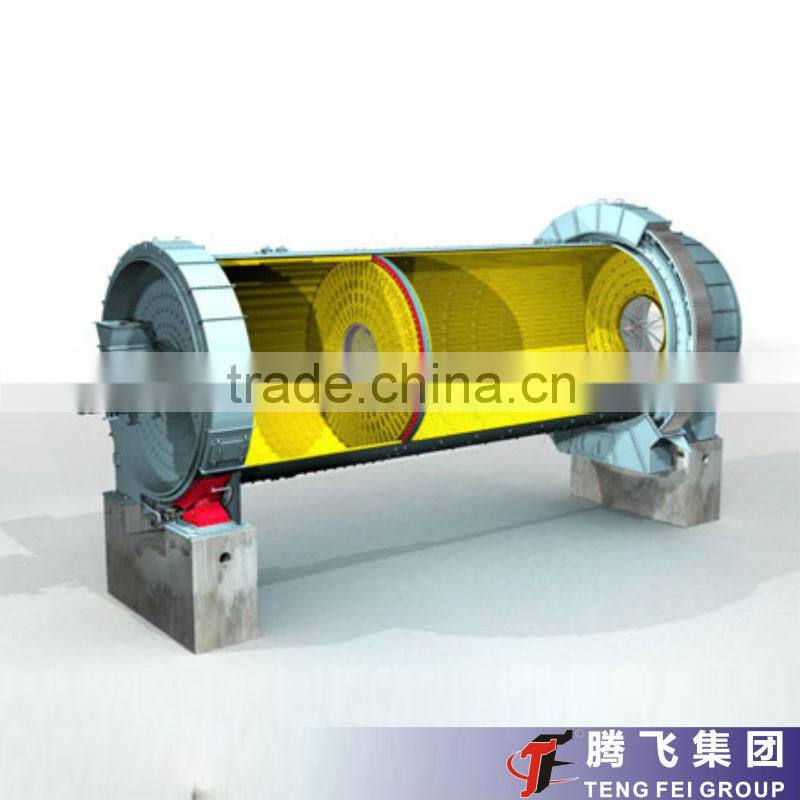

Working Principle:

The Ball Mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth.Then the whole grinding process is ended.

Enery Saving Mini Ball Mill


Mini Ball Mill Parameters:



Model

Speed of bucket(r/min)

Weight of ball (t)

Size of feed opening (mm)

Size of outputting feed(mm)

Production( t/h)

Power( KW)

Φ900×1800

38

1.5

≤20

0.075-0.89

0.65-2

18.5

Φ900×3000

38

2.7

≤20

0.075-0.89

1.1-3.5

22

Φ1200×2400

32

3.8

≤25

0.075-0.6

1.5-4.8

45

Φ1200×3000

32

5

≤25

0.075-0.4

1.6-5

45

Φ1200×4500

32

7

≤25

0.075-0.4

1.6-5.8

55

Φ1500×3000

27

8

≤25

0.075-0.4

2-5

90

Φ1500×4500

27

14

≤25

0.075-0.4

3-6

110

Φ1500×5700

27

15

≤25

0.075-0.4

3.5-6

132

Φ1830×3000

24

11

≤25

0.075-0.4

4-10

180

Φ1830×6400

24

23

≤25

0.075-0.4

6.5-15

210

Φ1830×7000

24

25

≤25

0.075-0.4

7.5-17

245

Φ2200×5500

21

30

≤25

0.075-0.4

10-22

370

Φ2200×6500

21

30

≤25

0.075-0.4

14-26

280

Φ2200×7500

21

33

≤25

0.075-0.4

16-29

475







Product Display

 Enery Saving Mini Ball MillEnery Saving Mini Ball Mill





FAQ

1.How is the quality of your products?

Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.



2.Guaranteed:

If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund



3.How about price?

  Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.



4.Why should we choose you?

Chose happens because of quality, then price, we can give you both.

Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust

Enery Saving Mini Ball Mill
