Specifications
Saving Ball Machine1. Simple structure
2. Low operating cost
3. Low power consumption
4. Special design
Saving Ball Machine
- Saving Ball Machine is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type.
- There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Model |
Speed of bucket (r/min) |
Weight of ball (t) |
Size of feed opening (mm) |
Size of outputting feed (mm) |
Production (t/h) |
Power (Kw) |
Weight (t) |
Φ900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
Φ900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
Φ1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
Φ1200×3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
12.8 |
Φ1200×4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
13.8 |
Φ1500×3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
17 |
Φ1500×4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
21 |
Φ1500×5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
24.7 |
Φ1830×3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
28 |
Φ1830×6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
34 |
Φ1830×7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
36 |
Φ2200×5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
48.5 |
Φ2200×6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
52.8 |
Φ2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
56 |

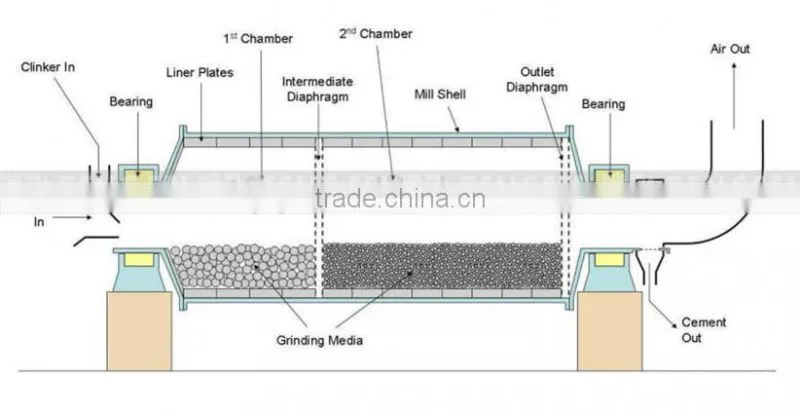

Work Principle of Saving Ball Machine
Saving Ball Machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

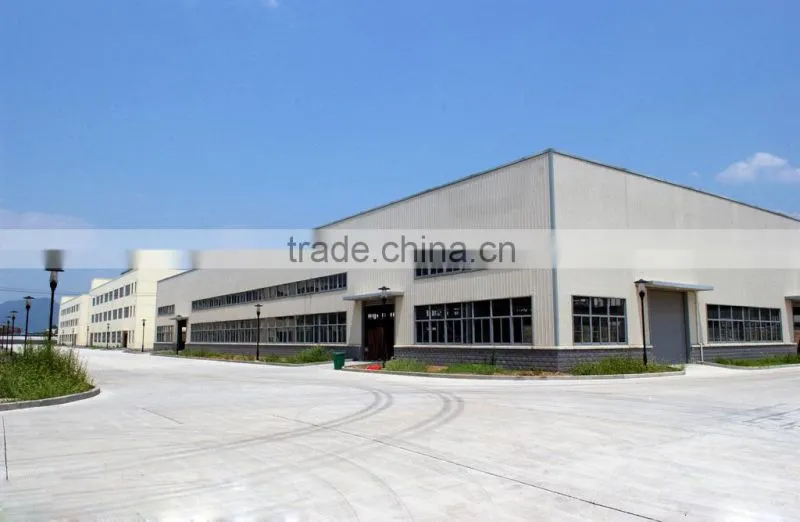

Our Factory
OUR AIM :
Begin from customer demand ; End with customer satisfaction
High quality of after-sales service symbolizes our brand and our ability. We pursue not only the good quality of our products, but also the good after-sales services. Your satisfaction with us is our final purpose.
