Large Capacity Overflow Type Wet Ball Mill

Large Capacity Overflow Type Wet Ball Mill thumbnail-1
Large Capacity Overflow Type Wet Ball Mill photo-1
US$ 5,258 - 98,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 90 kw
Capacity(t/h) 2-5
Place of Origin Henan, China
Brand Name TengFei
Model Number 1500 x 3000
Dimension(L*W*H) 7.3 x 3.4 x 2.8 m
Weight 17 t
Certification ISO, CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Ball Mill Wet
1. Wet overflow ball mill
2. Low energy consumption
3. Whole base support, high quality
4. Mn liner, durable

Large Capacity Overflow Type Wet Ball Mill





Product Description



Overview

A ball mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. Ball mills include two types: dry ball mill and wet ball mill.Besides, ball mill can also be divided into grid type and overflow type,according to different discharging ways.



 Large Capacity Overflow Type Wet Ball Mill



Application

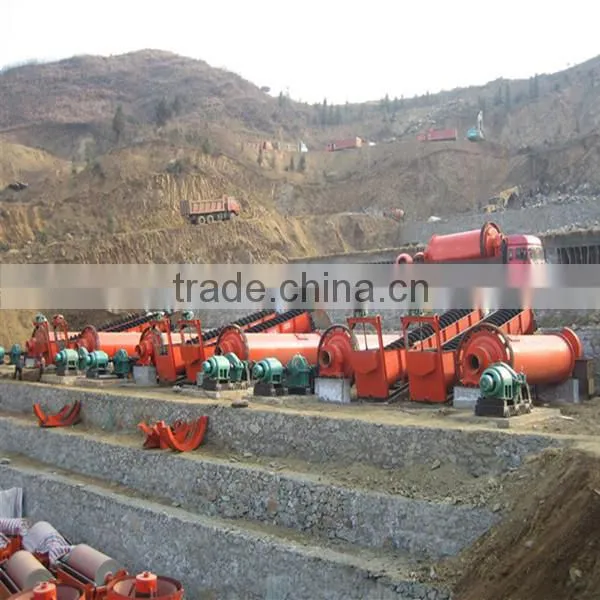

Ball mill is the key equipment to grind the materials after they are primarily crushed, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and other production industries. It also can be applied to the dry type and wet type grinding for all kinds of ores and other grind-able materials.





Large Capacity Overflow Type Wet Ball Mill     Large Capacity Overflow Type Wet Ball Mill

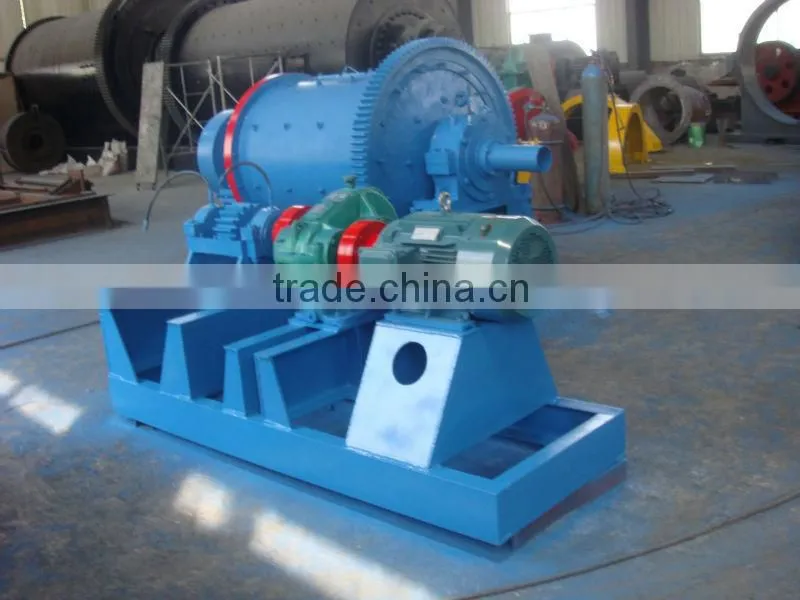

Basic Structure

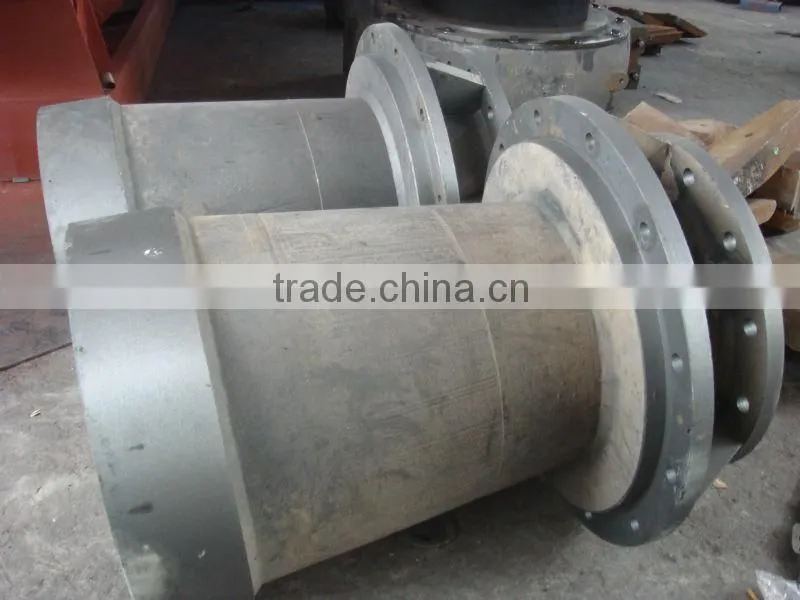

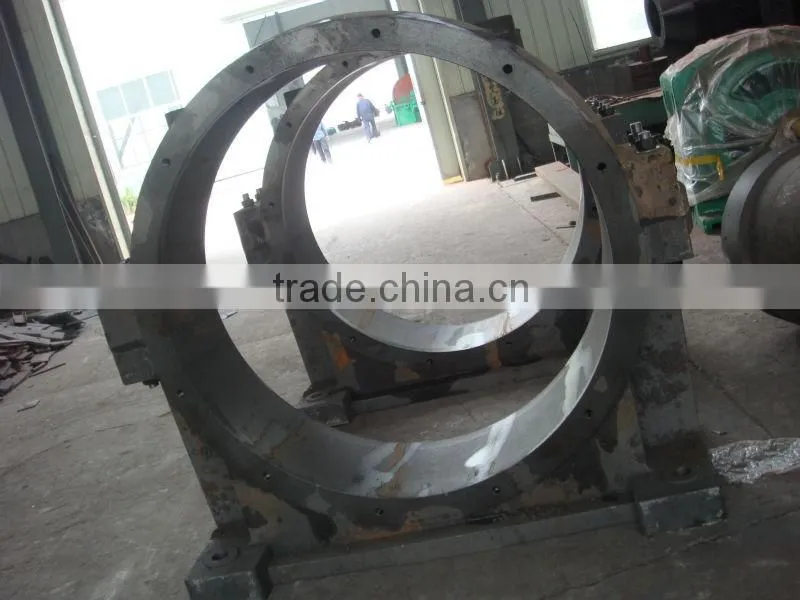

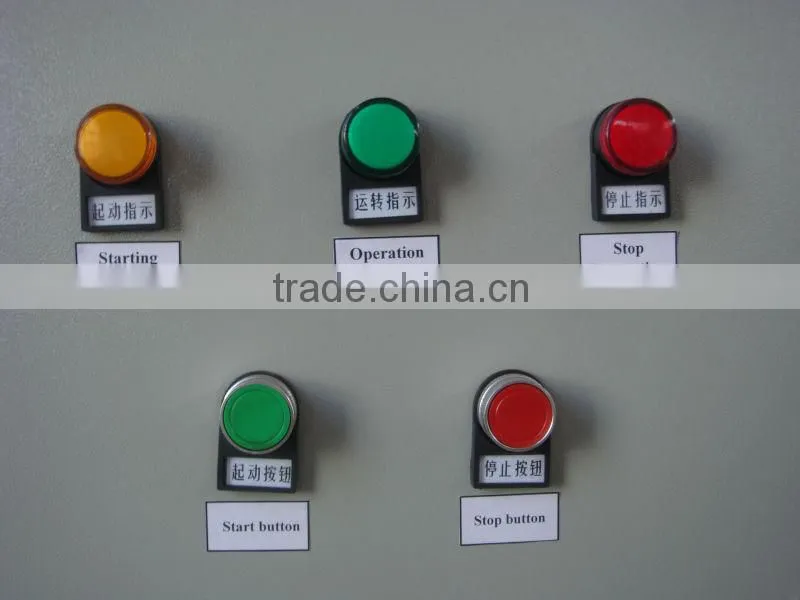

Ball mill is mainly composed of feeding part, discharging part, rotation part and driving part which includes gear box, small transmission gearwheel, electric motor and electric control. The hollow shaft adopts steel casting, the inner liner can be dismantled and changed, and the rotation gearwheel uses casting hobbing processing and inside the cylinder there are wearable liners which has good wear-resistance. This machine has stable operation and reliable performance.

Large Capacity Overflow Type Wet Ball Mill    Large Capacity Overflow Type Wet Ball Mill





Large Capacity Overflow Type Wet Ball Mill      Large Capacity Overflow Type Wet Ball Mill





Working Principle

Ball mill is a horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material evenly goes into the first chamber from the feeding inlet through the hollow shaft in a spiraling way. Inside the first chamber, there are stage liners and ripple liners as well as different kinds of steel balls. The shell rotates to generate eccentricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material.

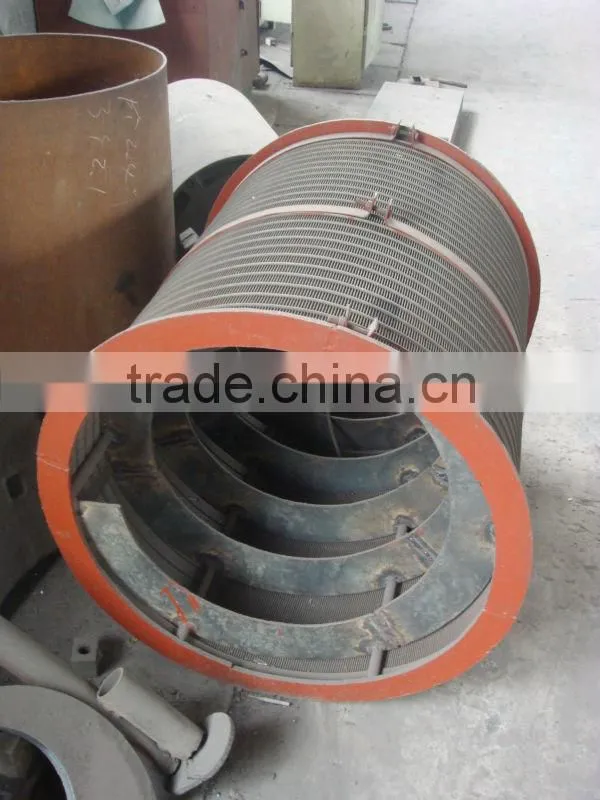

After the primary grinding, material enter the second chamber through segregate screen. In the second chamber, there are flat liners and steel balls which will further grind the material. After the secondary grinding, material is discharged from the discharging screen. Then the whole grinding process ends.

Large Capacity Overflow Type Wet Ball Mill



    Large Capacity Overflow Type Wet Ball Mill





Features

1. The main bearing is made of full diameter and double self-aligning rod bearing, instead of the former sliding bearing, which reduces friction and energy consumption. So the grinding machine is easy to start.

2. The ball mill is with big diameter discharging mouth and high production capacity.

3. Feeders include joint feeder and drum feeder, whose structure is simple and split installation.

4. Ball mill has no inertial impaction and is operated smoothly, which reduces the time of parking to maintain and increase its efficiency.



Technical Date

Model

Speed of

bucket

(r/min)

Weight of

ball (t)

Size of feed

opening (mm)

Size of

outputting

feed (mm)

Production

(t/h)

Power

(Kw)

Weight

(t)

Φ900×1800

38

1.5

≤20

0.075-0.89

0.65-2

18.5

3.6

Φ900×3000

38

2.7

≤20

0.075-0.89

1.1-3.5

22

4.6

Φ1200×2400

32

3.8

≤25

0.075-0.6

1.5-4.8

45

12.5

Φ1200×3000

32

5

≤25

0.075-0.4

1.6-5

45

12.8

Φ1200×4500

32

7

≤25

0.075-0.4

1.6-5.8

55

13.8

Φ1500×3000

27

8

≤25

0.075-0.4

2-5

90

17

Φ1500×4500

27

14

≤25

0.075-0.4

3-6

110

21

Φ1500×5700

27

15

≤25

0.075-0.4

3.5-6

132

24.7

Φ1830×3000

24

11

≤25

0.075-0.4

4-10

180

28

Φ1830×6400

24

23

≤25

0.075-0.4

6.5-15

210

34

Φ1830×7000

24

25

≤25

0.075-0.4

7.5-17

245

36

Φ2200×5500

21

30

≤25

0.075-0.4

10-22

370

48.5

Φ2200×6500

21

30

≤25

0.075-0.4

14-26

280

52.8

Φ2200×7500

21

33

≤25

0.075-0.4

16-29

475

56

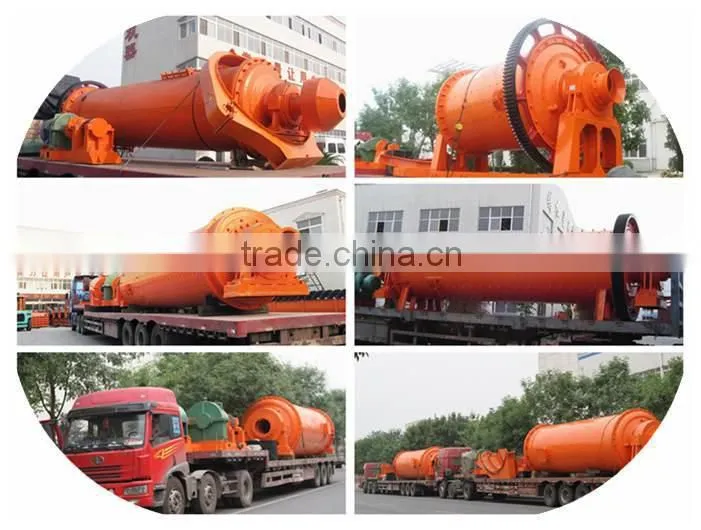

Packaging and Shipping

Ways of Packing:

1. Sand blasting, coat with high quality paint;

2. Product wrap by PP-Bubble;

3. Load container, Spear Parts in wooden case.

Transportation:

1. By sea Freight;

2. We will remind you before boat arrival.

Large Capacity Overflow Type Wet Ball Mill




Quality Control

Quality is our moral category, our products are worth it's price, products are our moral standing, we firmly believe that we would be punished by the market without good quality.

  Large Capacity Overflow Type Wet Ball Mill





International Communication

Green industry and internationalization is the strategic thought of Fote. We tries best to integrate the advanced technology, excellent talents and advanced concep into the company development, which will give support to the pace, stragegy and development of Fote's internationalization and make our business partners use the most suitable products.

Large Capacity Overflow Type Wet Ball Mill     Large Capacity Overflow Type Wet Ball Mill







Our Services



1>Pre-sale services: Enthusiasm



We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.



2>Sale services: Servant



Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.



3>After-sale services: Faithfulness



To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.



4>We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.







FAQ







1>How is the quality of your products?



Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.



2>What guarantee do you provide?



If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.



3>How about price?



Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
