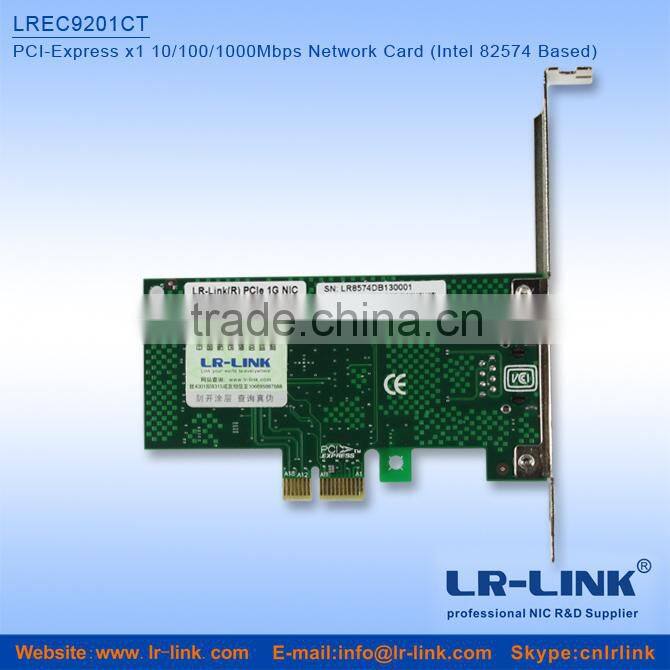

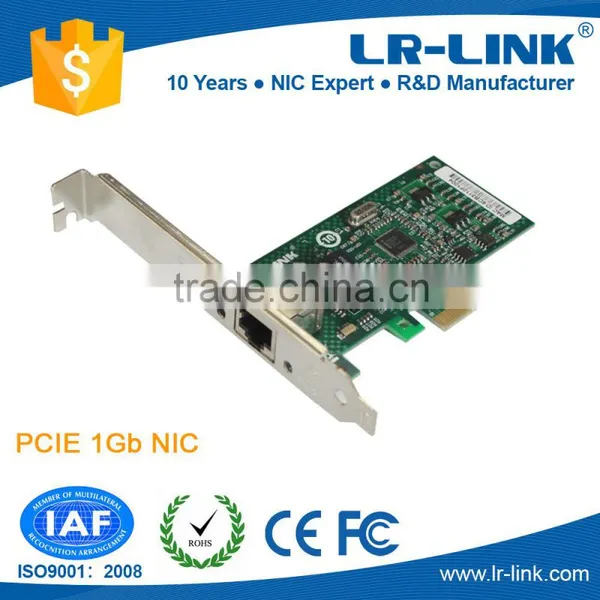

LREC9201CT PCI-Express x1 10/100/1000Mbps Network Card (Intel 82574 Based)
PCI Express*1 Gigabit Performance to the Desktop
Key Features
High-performance, self-configuring 10/100/1000Mbps connection for PCI Express* slots
Easy installation, maintenance, and advanced management capabilities
Low-cost, low-power, compact design
Features
Intel® 82574L Gigabit Ethernet Controller
Interrupt moderation
PCI Express* x1 slot compatible
Compatible with Fast Ethernet and Ethernet
10/100/1000 Mbps auto-negotiation
Support for most network operating systems
Advanced configuration and power interface (ACPI); Wake on LAN* (WoL); Preboot Execution Environment (PXE)
Remote Management Support
Intel® PROSet Utility for Microsoft* Device Manager
Advanced cable diagnostics
Intel backing
Optimized queues: 2 Transmit (Tx) and 2 Receive (Rx)
MSI-X support
Connectivity You Can Count On
For PCs with PCI Express (PCIe*) slots, the LREC9201CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, LREC9201CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10,100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
Enhancing Desktop Performance
Fast servers and server connections are important for high network performance. However, server speed cannot overcome the drag of slow desktop performance. When a desktop PC initiates a transaction with the network server, the server quickly performs its portion of the transaction, but must wait for the desktop PC to complete its part of the transaction. The slower the PC, the longer the server must wait for transaction completion before moving to the next transaction. With PCI Express Gigabit performance to the desktop, transactions on the PC side complete significantly faster, allowing the network to service more transactions faster.
PCI Express Makes GigabitEthernet Even Faster
PCI Express is the third-generation I/O standard with performance that supercedes the previous PCI and PCI-X* slot standards. The key to PCIe performance is its higher dedicated I/O bandwidth. Unlike the PCI bus, which shares its I/O resources with all devices on the bus, PCIe dedicates its I/O to a single device. The LREC9201CT Desktop Adapter allows you to take advantage of this dedicated I/O by combining Gigabit Ethernet with PCI Express to provide high-performance network connectivity for desktops with PCI Express slots. Make the LREC9201CT Desktop Adapter your choice for applications utilizing rich media content such as video streaming, web applications, music, and gaming.
Quick and Easy Installation
The LREC9201CT Desktop Adapter is supported by Intel PROSet Utility for Microsoft* Device Manager and Intel PRO intelligent install. Intel PROSet simplifies adapter installation and gives you point-and-click power for configuring and managing all of your Intel Network Connections.
General
Product codes: LREC9201CT

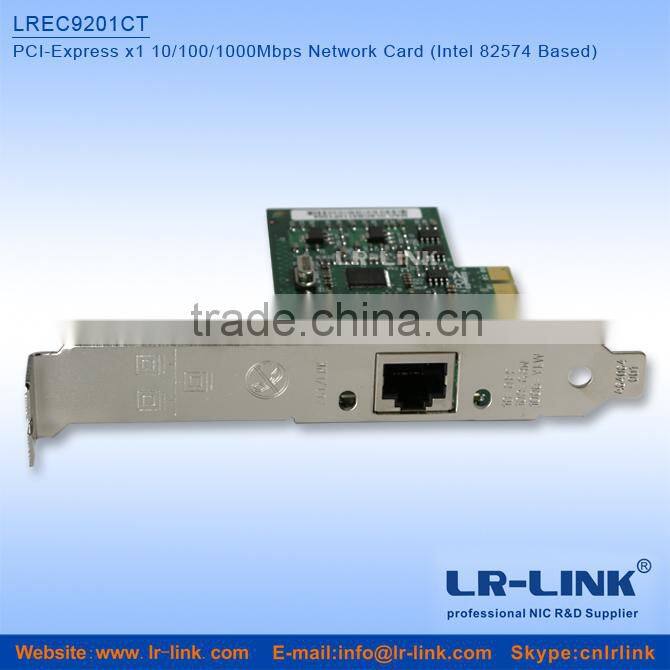

Connectors: RJ-45
IEEE standards/network topology: 10/100/1000BASE-T
Wiring : Category-5 UTP, 4-pair
Adapter Product Features
Intel® PROSet Utility for easy configuration and management
ROHS
Plug and play specification support: Standard
Auto-negotiation, full-duplex capable
Integrated media access control (MAC) and physical layer (PHY)
Cable distance:
•100m Category-5 for 1000/100 Mbps;
•Category-3 for 10 Mbps
9 KB jumbo frames

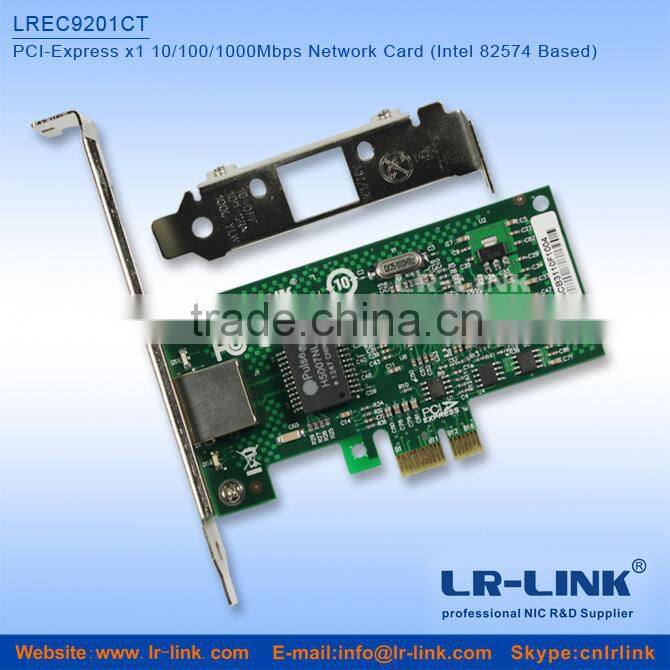

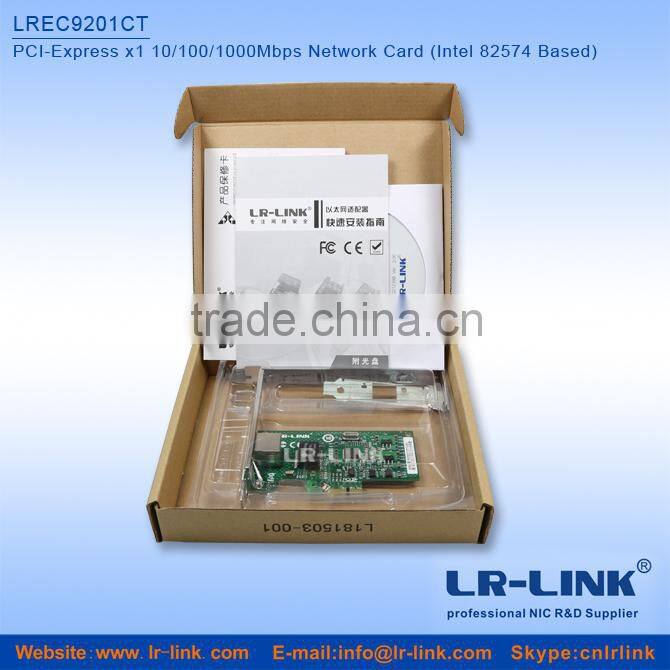

Ships with full-height bracket installed, low-profile bracket added in package
Network Management
Wired for Management (WfM) baseline v2.0
DMI 2.0 support and Windows Management
Instrumentation (WMI) and SNMP-Remote Installation Services (RIS)
ACPI* 1.0 power management
Wake on LAN* support over PCI Express*
PXE 2.0 enabled through boot read-only memory (ROM)
Advanced Software Features
Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
TCP checksum offload – transition control
protocol (TCP), user diagram protocol (UDP), Internet protocol (IP)
IEEE 802.1p*, Intel(R) Priority Packet 8
TCP segmentation/large send offload
Teaming support
Interrupt moderation
Technical Features
Data rate supported per port: 10,100, and 1000 Mbps
Bus type: PCI Express 1.1 (2.5 GT/s)
Bus width: x1 lane PCI Express operable in x1, x4, x8, x16 slots
Bus speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
Interrupt levels: INTA, MSI, MSI-X
IEEE support: 802.3z*
Controller-processor: Intel® 82574L
Typical power consumption: 1.9W
Operating temperature: 0° C to 55° C (32° F to 131° F)
Storage temperature: -40° C to 70° C (-40° F to 158° F)
Storage humidity: 90% non-condensing relative humidity at 35° C
LED Indicators: LINK/ACTIVITY LED: off=NO LINK; on=LINK; blinking=ACTIVITY
SPEED LED: off=10 Mb; green=100 Mb; yellow=1000 Mb
Network Operating Systems (NOS) Software Support
Windows 2000
Windows XP 32-bit (64-bit)
Windows Server 2003 32-bit (64-bit)
Windows Vista 32-bit (64-bit)
Windows 7 32-bit (64-bit)
Windows 8 32-bit (64-bit)
Windows Server 2008 32-bit (64-bit)
Windows Server 2008 R2 32-bit (64-bit)
Windows Server 2012 32-bit (64-bit)
DOS, Novell ODI
Novell Netware 5.x,6.x
Linux 2.4 series kernel and 2.6.x ,3.x
FreeBSD 7.x and later
UnixWare / OpenUnix 8
Sun Solaris x86
VMWare
