Specifications
1.PCI lan rj45 ethernet 10/100 network adapter card2.Realtek RTL8139D chipest
3.Full/Half duplex mode
4.BootROM for diskless

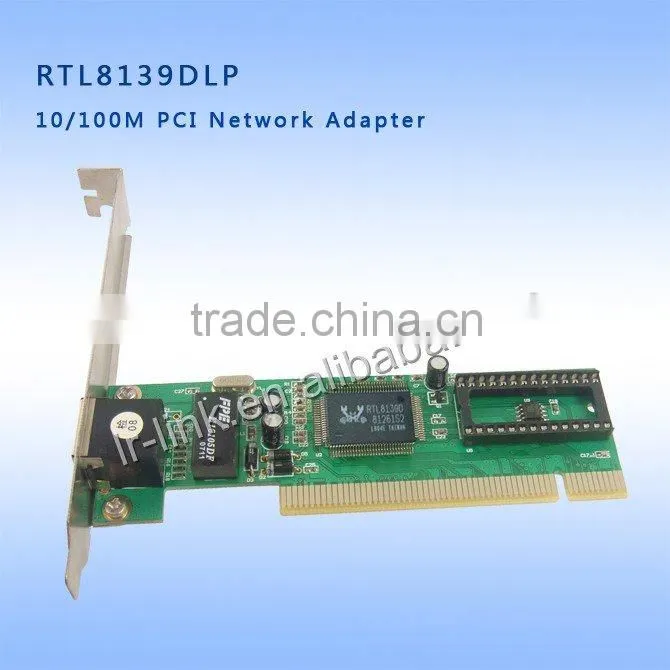

RTL8139D 32bit realtek RTL8139D PCI lan rj45 ethernet 10/100 network adapter card
Spotlight:
10/100M PCI Adapter.
Complies with IEEE 802.3/802.3u Ethernet Standard.
Descriptions:
The RTL8139D Fast Ethernet Adapter is a highly integrated and cost-effective Fast Ethernet Adapter that provides 32-bit performance, PCI bus controller, and full compliance with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX specifications and IEEE 802.3x Full Duplex Flow.
RTL8139D keeps low cost and eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. Supports both 10Mbps and 100Mbps network speed both in Half-Duplex and Full-Duplex transfer modes, using Auto-Negotiation technology to detect the network speed. It also can be widely used in most modern Operating System.
RTL8139D includes a socket for a boot ROM and can be used in diskless workstations, providing network security and easy management.
Features:
Supports Full Duplex and Half Duplex transfer modes
Provides BOOTROM socket
Supports IEEE 802.3x flow control for Full Duplex mode
Provides diagnostic software
One LED indicator for monitoring link/activity
Supports drivers for Win98SE/Me/NT/2000/XP/Vista/Linux/Novell Netware
Specifications:
Standards and Protocols |
IEEE 802.3, 802.3u, 802.3x CSMA/CD, TCP/IP, PCI Revision 2.1/2.2 |
Interface |
32-bit PCI |
Transmission Rate |
10/100Mbps for Half-Duplex mode 20/200Mbps for Full-Duplex mode |
Flow Control |
IEEE 802.3x Flow Control (Full-Duplex) |
Port |
10/100Mbps RJ45 |
Slot |
1 BOOTROM slot |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
LED Indicator |
Link/Act |
Safety & Emission |
FCC, CE |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) |
Operating System |
Win98SE/Me/NT/2000/XP/Vista/Linux/Novell Netware |
