Specifications
1.LREC7200MT Gigabit PCI card2.internal 82540 chipest
3.Diskless for internet cafe with PXE
4.Hot sales
5.High quality
LREC7200MT Intel 82540 PCI Gigabit Single RJ45 Network Card,network card brand

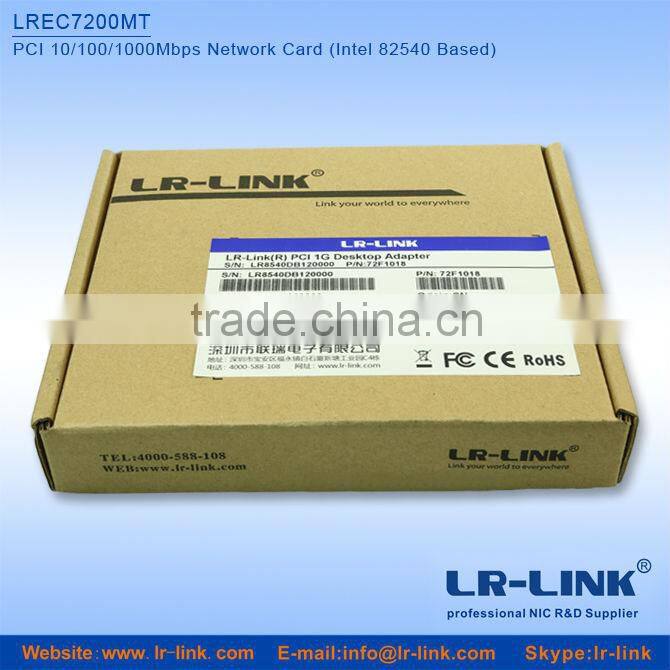

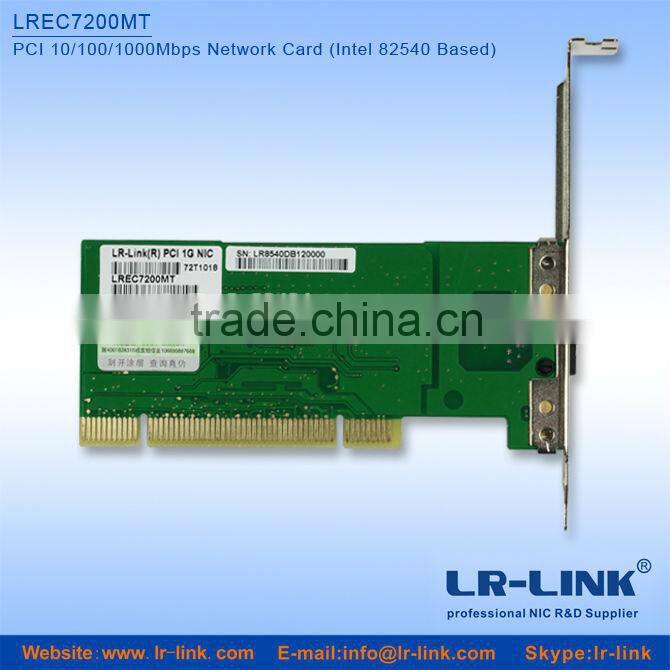

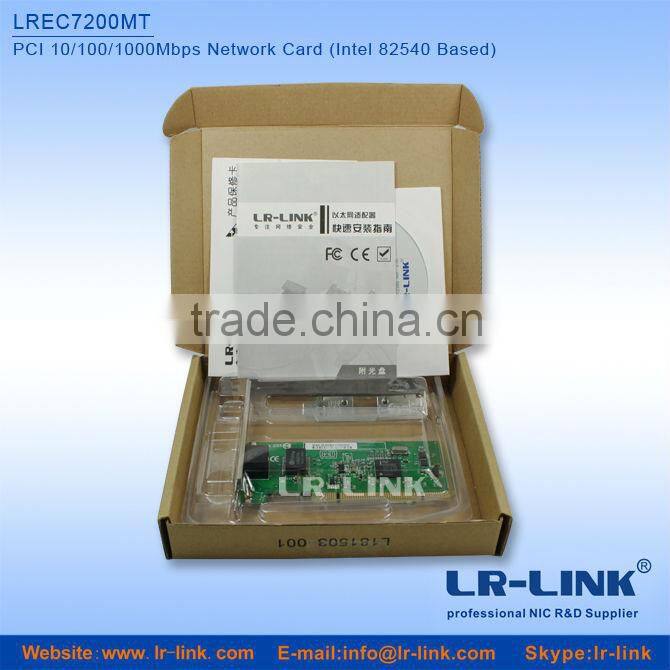

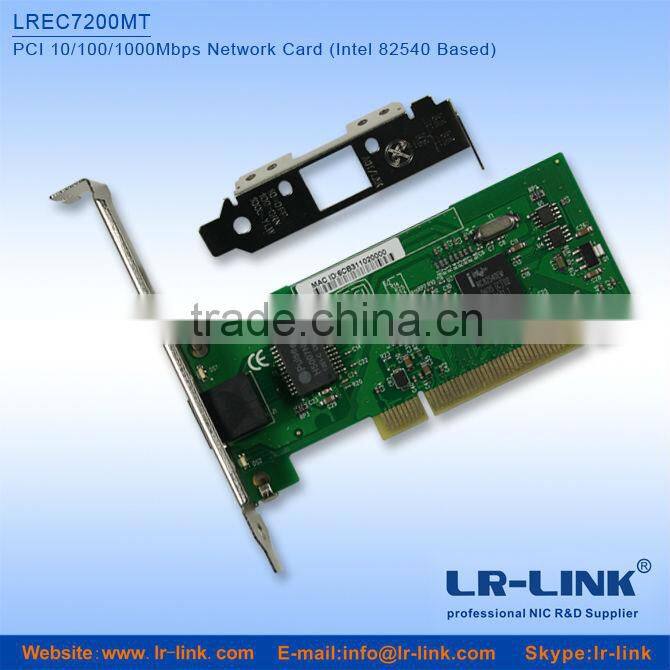

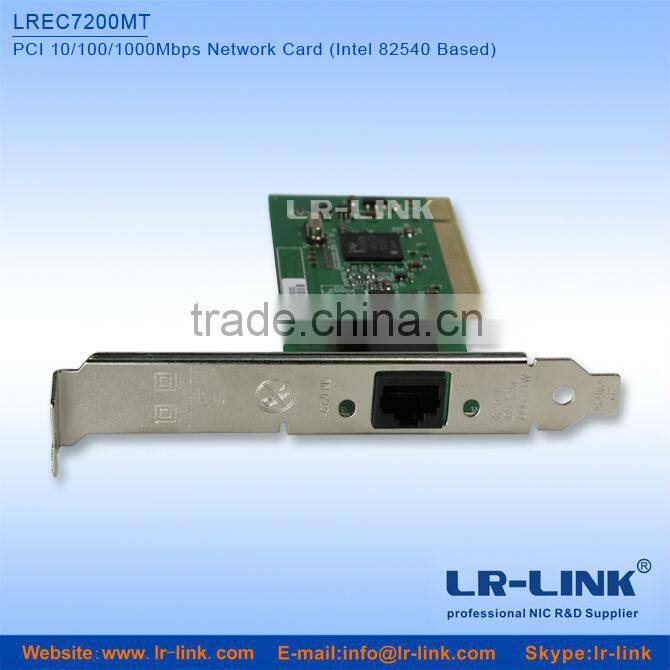

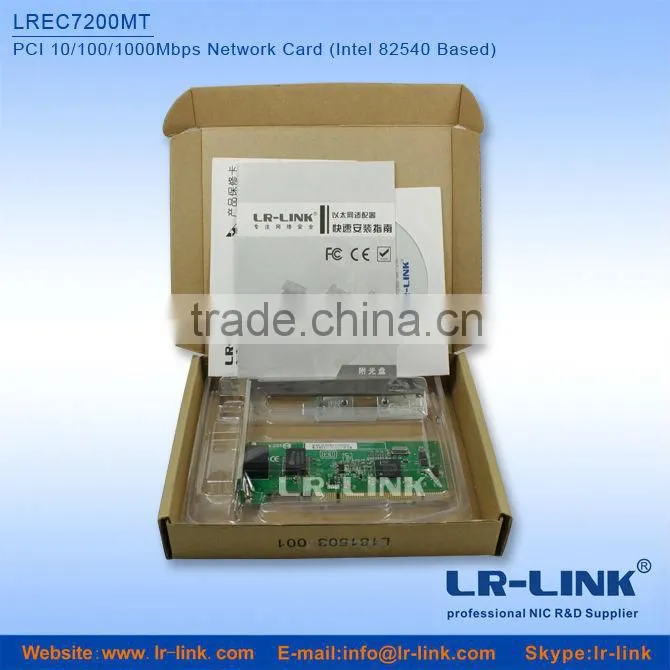

LREC7200MT PCI 10/100/1000Mbps Network Card (Intel 82540 Based)
Easy Desktop Migration to Gigabit Copper Performance
Now you can benefit from the Intel® PRO/1000 MT Desktop Adapters that maximize system performance and increase end-user productivity for mainstream PCs.
Next-generation desktops will feature high-bandwidth applications encompassing voice, data, streaming video,
video conferencing, and long distance storage area networks t will be hindered by Fast Ethernet technology. Fortunately, most networks are running over standard Category-5 cable that sup Gigabit speeds, allowing desktops to realize the full potential of high bandwidth applications.
The Intelligent Way to Connect
High performance and flexibility through 10/100/1000 auto-negotiation—systems that are currently running at 10 Mbps or 100 Mbps can be upgraded with the LREC7200MT Desktop Adapter now, whether Gigabit switching is currently available or not. According to the Gartner Group, the average life of a PC is three years1. By integrating an Intel® PRO Gigabit Network Connection now, IT managers will save time, money and downtime when the network is upgraded
later because the LREC7200MT will automatically detect and run at the higher speed when it becomes available.
Easy, cost-effective migration to Gigabit Ethernet over existing Category-5 cabling—Category-5 cabling allows easy migration to faster networks and 10/100/1000Mbps flexibility to scale bandwidth as your network grows.
Lower support costs through advanced management capabilities—the LREC7200MT supports Wired for Management (WfM) 2.0, DMI 2.0, and SNMP for remote troubleshooting and management, as well as PXE 2.0 and WoL for remote boot and software installations.
Software also includes the Intel® PROSet II Utility for easy configuration.
Features
Intel® 82540EM Gigabit Controller
Compatible with Fast Ethernet and Ethernet
PCI 2.2 32-bit 33/66 MHz
10/100/1000 Mbps
Category-5 Cabling
Interrupt Moderation
ACPI, WoL, PXE
SNMP/DMI, WfM
Meets IEEE 802.3ab technology
Advanced Cable Diagnostics
Support for many NOSs
Specification
GENERAL
Connectors: RJ-45
IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
Wiring: Cat-5, 4 pair
ADAPTER PRODUCT FEATURES
Intel® SingleDriver™ technology
Plug and Play Specification Support
Easy Installation, Intel® PROSet II Utility
Auto-negotiation, Full-duplex Capable
Bus Type
Bus Speed: PCI 2.2
Bus Speed: 32/33, 32/66
NETWORK MANAGEMENT
Wired for Management (WfM) Baseline v2.0
DMI 2.0 Support, WMI & SNMP-manageable
Offline Diagnostics
Intel® Boot Agent
ACPI Power Management
Wake on LAN*
ADVANCED SOFTWARE FEATURES
IEEE 802.1Q VLANs
IEEE 802.3x Flow Control
TCP Checksum Offload
IEEE 802.1p, Intel® Priority Packet II
TECHNICAL FEATURES
Data Rate(s) Supported per Port: 10, 100, 1,000 Mbps
Integrated Memory: 64 KB
Interrupt Levels: INTA
IEEE Support: 802.2 and 802.3ab
Data Path Width: 32-bit PCI
Data Transfer Mode: Bus-master DMA
Controller—Processor: Intel® 82540EM
Typical Power Consumption: 800 mA @+5 VDC
Operating Temperature: 0–55°C
Operating Humidity: 85% at +55°C
NOS SOFTWARE SUPPORT
Windows ME
Windows CE
Windows 98
Windows 98SE
Windows NT 4.0
Windows NT Terminal Server
Windows Server 2000
Windows XP 32-bit(64-bit)
Windows 7 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Server 2008 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
MAC OS
Novell ODI
OS/2 Warp
SCO Open Server
Sun Solaris x86
OS Independent
DOS, Novell ODI
FreeBSD 4.X,5.X,6.X,7.X
NetWare ,NetWare5.0,5.1,6.0,6.5
Linux with 2.2.20 to 2.6.X kernels
OpenUNIX 8.0 (Caldera), UnixWare 7.x
Ordering Information:
M/N | Description |
LREC7200MT | PCI 10/100/1000Mbps Network Card (Intel 82540 Based) |
PS: The above details is just for reference,if there is any change,no inform will have.
