Specifications
1.100Mbps dual port lan card2.Intel 82546 chipset
3.in stocks

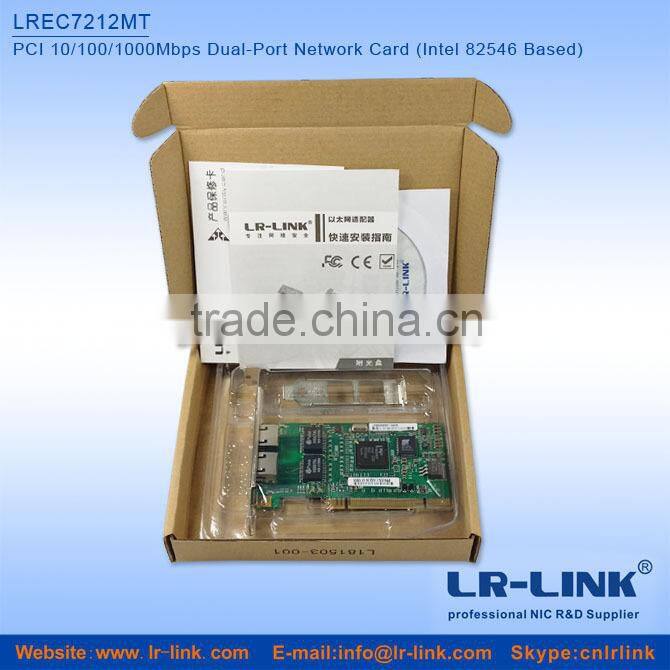

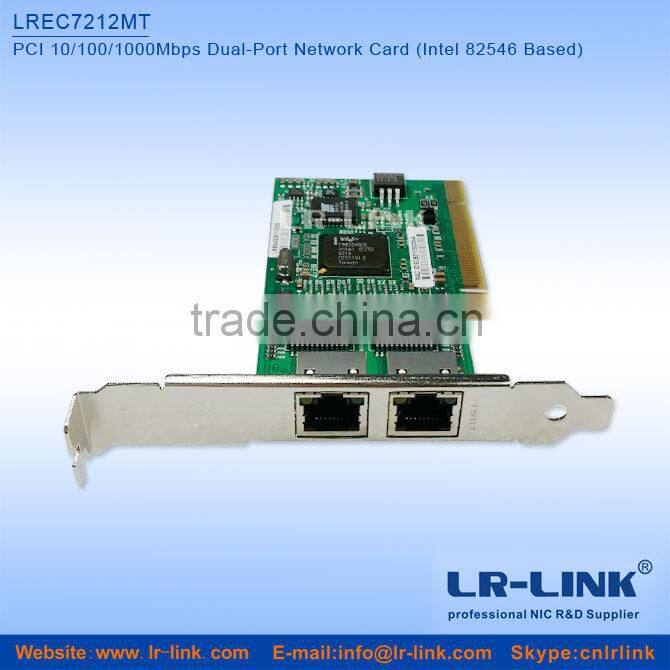

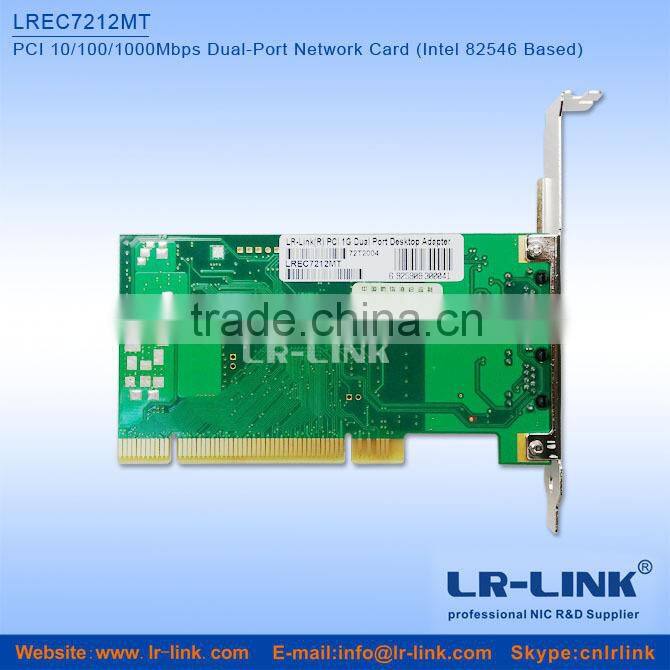

LREC7212MT Intel 82546 Chipset PCI Dual Port Network Adapter
The Intelligent Way to Connect
Featuring flexible, auto-negotiating 10/100/1000 Mbps performance, the LREC7212MT Server Adapter is designed to automatically scale with growing networks.
A compact form factor and swappable low-profile bracket allow this dual port Gigabit adapter to fit in even high-density, rack-mounted 1U and 2U servers. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.
Features:
WIDESPREAD COMPATIBILITY
Support for most NOSs
Intel® SingleDriver™ technology
Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters
Supports 32-bit PCI 1.0 or PCI 2.2 buses
Remote Management Support (WfM, RIS, SNMP/DMI)
IEEE 802.3ab Compatibility
NEW FEATURES IN THE INTEL PRO/1000 MT DUAL PORT SERVER ADAPTER
Intel® 82546 Gigabit Controller
Full-height and low-profile, screw-on brackets included with each adapter
Advanced Cable Diagnostics
Large Send Off-load/TCP Segmentation Off-load
Expanded Advanced Server Features
GIGABIT-OVER-COPPER ADVANTAGES
Gigabit speeds on Category-5 cable networks
Compatible with Fast Ethernet
Auto-sensing, self-configuring 10/100/1000 Mbps performance
SPECIFICATIONS
IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX,1 000BASE-T
ADAPTER PRODUCT FEATURES:
Intel® SingleDriver™ technology
Plug and Play Specification Support Standard
Easy Installation, Intel® PROSet Utility and
Intel® PRO Intelligent Install
Auto-negotiation, Full-duplex Capable
Includes a Low-profile and a Full-height Bracket
Cable Distance
NETWORK MANAGEMENT:
Wired for Management (WfM) Baseline v2.0
Enabled for Servers
DMI 2.0 Support, WMI & SNMP-manageable
Offline Diagnostics
Dynamic Cable Diagnostics
Intel® Boot Agent
ACPI Power Management
Wake on LAN*
PXE 2.0
ADVANCED SOFTWARE FEATURES
Adapter Fault Tolerance
Switch Fault Tolerance
Adaptive Load Balancing
Fast EtherChannel*1
Gigabit EtherChannel*1
IEEE 802.3ad (Link Aggregation Control
Protocol)*1
Test Switch Configuration
PCI Hot Plug* and Active PCI*
802.1Q VLANs
802.3x Flow Control
TCP Checksum Offload
IEEE 802.1p
TCP Segmentation/Large Send Off-load
Interrupt Moderation
Save and Restore
TECHNICAL FEATURES
Data Rate(s) Supported per Port 10, 100 and 1,000Mbps
Bus Type PCI/PCI-X
Bus Width 32- or 64-bit
Bus Speed (MHz) 33/66/100/133
Onboard Memory 128 KB
Interrupt Levels INTA
IEEE Support 802.3ab
Hardware Certifications FCC A, CE
Data Transfer Mode Bus-master DMA
Controller—Processor Intel® 82546
Typical Power Consumption 1A at +5VDC
Operating Temperature 0–55°C
Operating Humidity 85% at +55°C
NOS SOFTWARE SUPPORT
Microsoft Windows* Server 2003 and 2000
Microsoft Windows* XP 32- and 64-bit Editions
Microsoft Windows NT* 4.0
Linux* 2.4.x or later (32- and 64-bit)
FreeBSD 4.x or later
Novell Netware* 4.11, 4.2, 5.0, 5.1, 6.0
SunSoft Solaris* 7, 8
UnixWare* 7.x, OpenUNIX 8 (ddi8)
SCO5
