SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module


Product Description

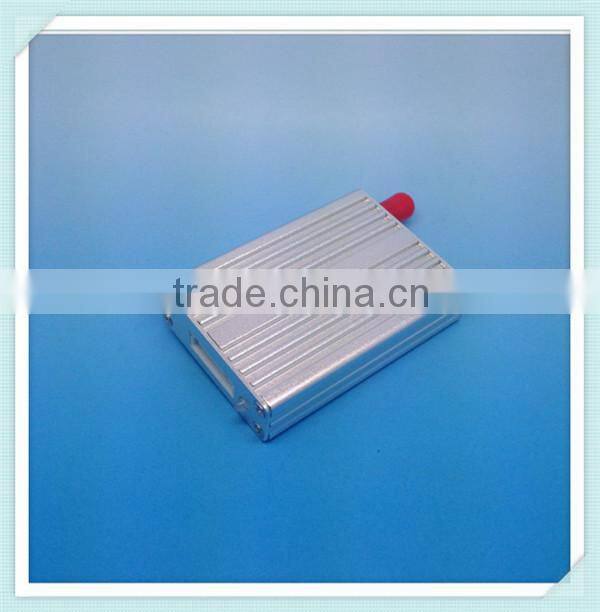

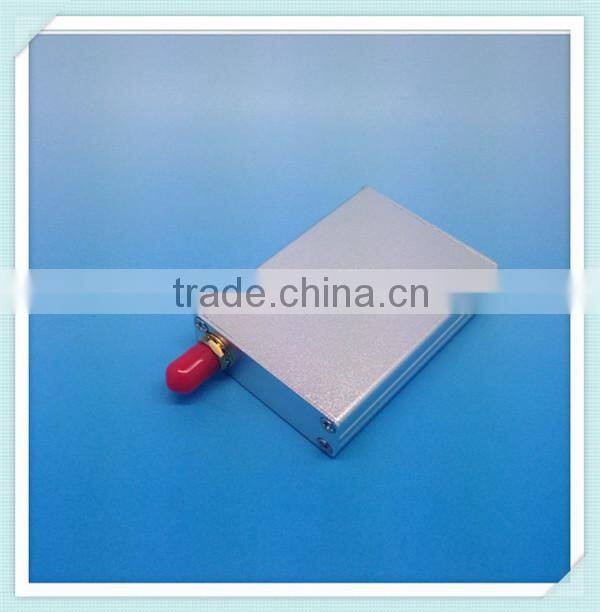

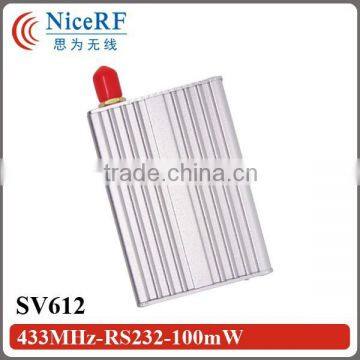

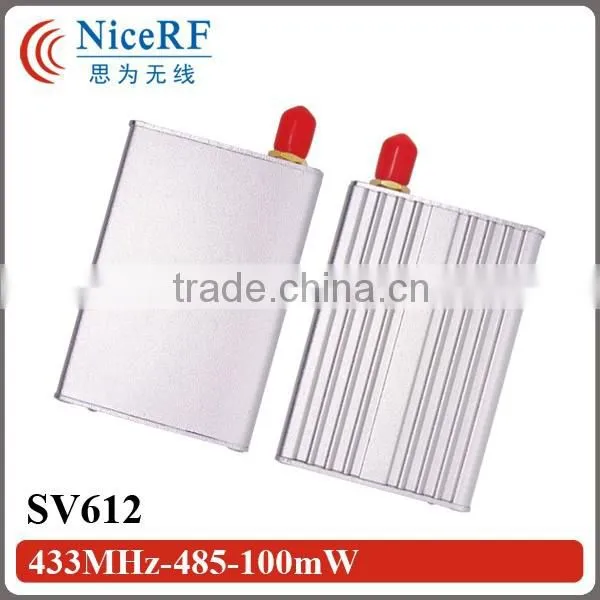

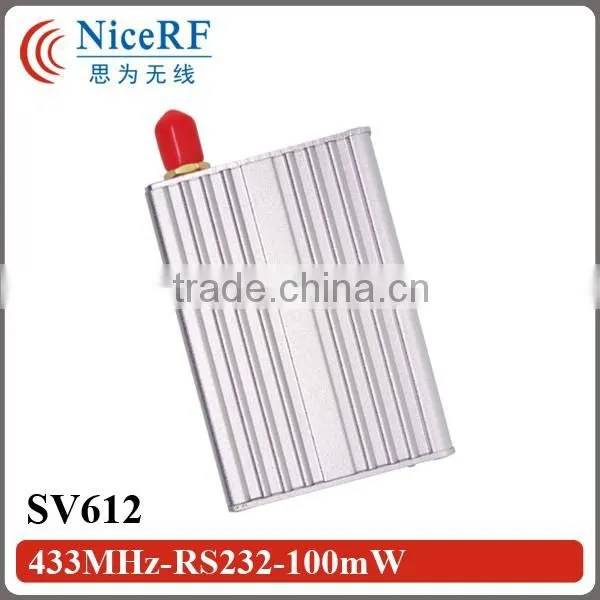

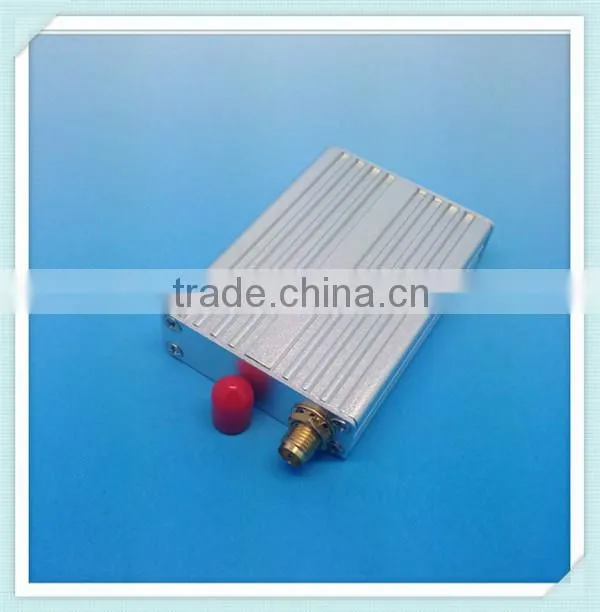

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module


SV612 is highly-integrated RF module, which adopts high performance Si4432 from Silicon Labs. It has 3 optional Interface (TTL, 232, 485). SV612 has high sensitivity and 100mW output power to achieve long RF range and reliable RF communication. SV612 comes with many parameters which are configurable, such as:  frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device. The features of long distance, wide working voltage and simple parameters configuration make SV612 wildly used in many fields.



Electronic parameters

Brand  NiceRF
Product SV612 433mhz home automation module
Parameter Min. Typ. Max. Unit Conditions
Operation conditions
Supply Voltage 2.8 5 6 V TTL level
4.5 5 5.5 V RS232/485 level
Operating Temperature -40 25 85 ℃
Current consumption
RX Current   25   mA TTL level
  34   mA 485 level
  32.7   mA 232 level
TX current   95   mA 20dBm
Sleep Current   <5   uA TTL level
RF parameters
Frequency 414.92 433.92 453.92 MHZ 433MHZ
470.92 470.92 509.92 MHZ 470MHZ
849.92 868.92 888.92 MHZ 868MHZ
895.92 914.92 934.92 MHZ 915MHZ
Air data rate 1.2 9.6 115.2 Kbps GFSK
Output power -1 / 20 dBm
Sensitivity   -121   dBm 1.2kbps





 Features

* 433/470/868/915 MHz (433.92mhz tx rx )
* Interface: TTL /RS232/RS485
* 40 channels
* 4 bytes net ID
* 2 bytes node ID
* Multiple air data rate
* GFSK modulation
* Bi-Direction communication
* Parameters configurable
* Parameters saved even powered off
* Sensitivity: -121 dBm
* Max output power:100 mW
* Voltage:2.8 ~ 6.0 V (TTL)  4.5~5.5V(RS232/RS485)
* Temperature:-40 ~ +85 °C

*1.4km wireless receiver long distance



Application

* Remote telemetry
* Auto meter reading
* Security systems
* Data logger
* Wireless data communication
* Home automation
* Healthy monitor
* Wireless PC peripherals
* Access Control
* Robot control



Schematic:

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

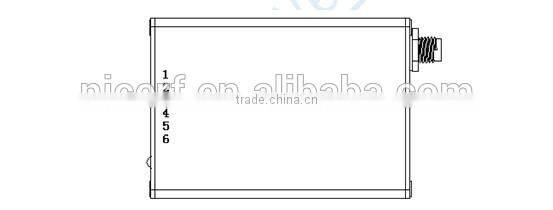

Pin definition

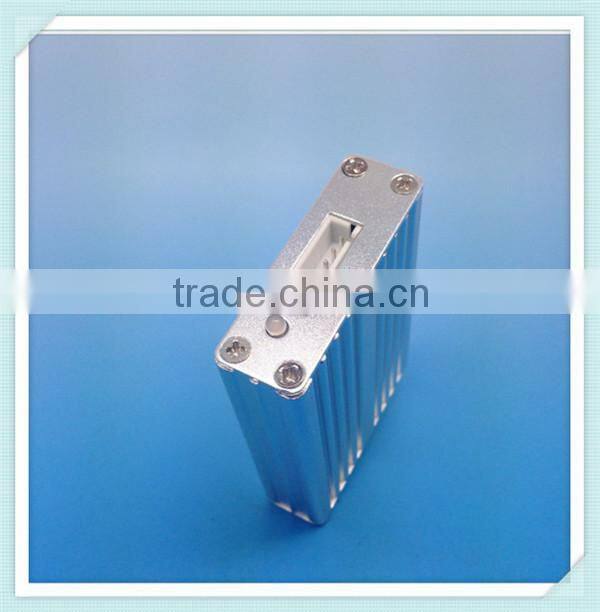

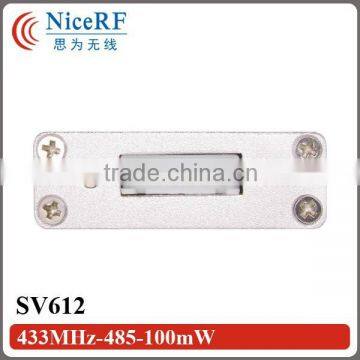

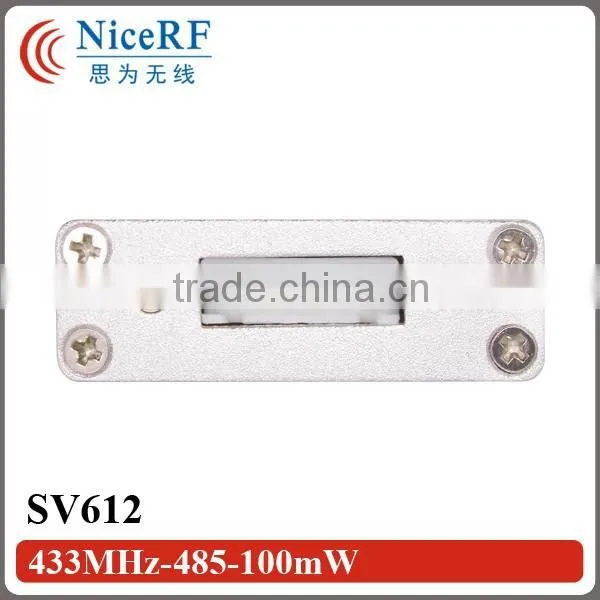

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

Pin No. Definition Description
1 VCC Connected to the positive power supply (typical 5V)
2 GND Connected to ground
3 TXD Data transmitting
4 RXD Data receiving
5 SET Configuration parameters enable (low to enable the configuration parameters, the default high-level output)
6 CS Enable(Low level sleep, the current is less than 5uA,High level default)

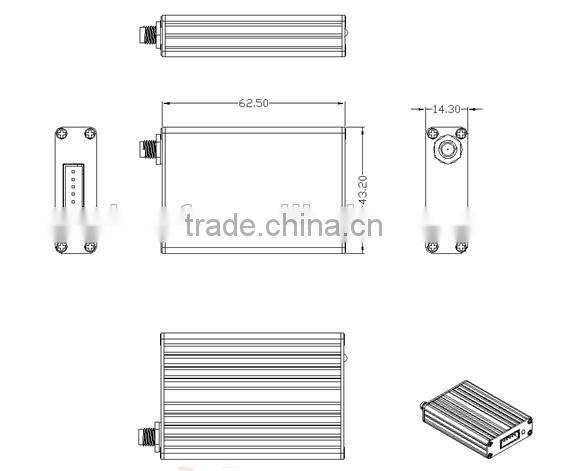

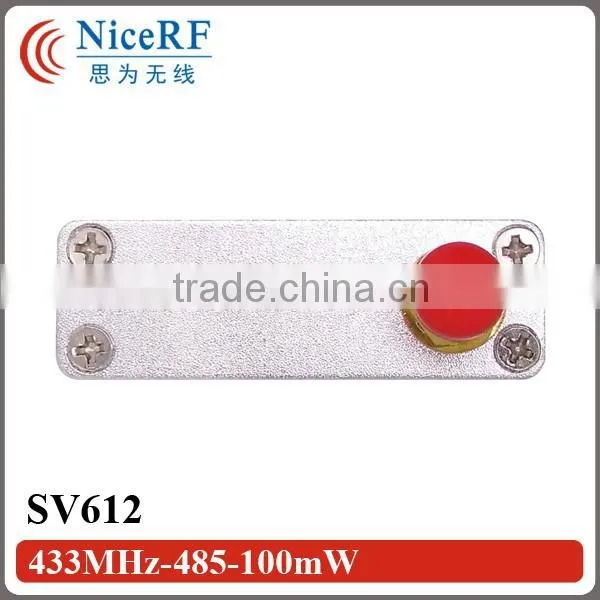

 Mechinism size:

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless ModuleSV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless ModuleSV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless ModuleSV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module


Company Information

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

Our company is engaged in researching, developing, producing and selling IOT(internet of things) products.

We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules.
Meanwhile, ODM and OEM projects are welcomed.
With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.



Packaging & Shipping

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module









FAQ

 SV612 100mW 1400M Long range TTL/RS232/ RS485 Wireless Module

 A) Can’t communicate?

1) Check if the band, channel, data rate, NET ID is set correctly;
2) Check if the power supply is connected correctly ;
3) Check if CS is pull high or Leave Open;
4) Check if the antenna is connected correctly;


B) Communication distance is not so far as expected?
1) Check if the Power supply is stable ;
2) Check if the antenna well matched and install properly;
3) Check if the surrounding environment is good, if strong interference exist;


C) Data received incorrectly?
1) Check if serial data rate, parity and serial data bit are set correctly;
