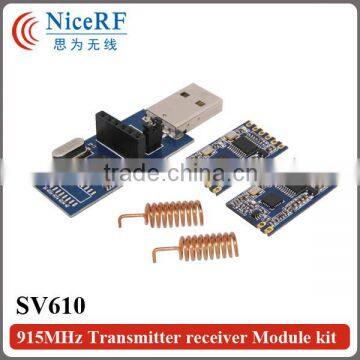

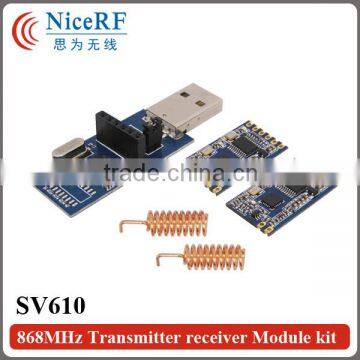

2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose

2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose thumbnail-1
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose thumbnail-2
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose thumbnail-3
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose thumbnail-4
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose photo-1
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose photo-2
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose photo-3
2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose photo-4
US$ 7.5 - 11.5 MOQ: 2 Pieces
Key Specifications
Get Latest Price
D/C:
2015
Package:
Original and new
Model Number:
SV610
Contact Supplier Request Quote Chat Now
NiceRF Wireless (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C 2015
Package Original and new
Model Number SV610
Type Other, Wireless RF module
Brand Name NiceRF
Place of Origin Guangdong, China

2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose



 Product Ordering Information



(Pls leave a message about the frequency you need so that we can ship it as fast as we can!)

For example:

If the customer needs 433MHZ band with TTL Interface then part number of released order shall be: SV610-433-TTL



 Product Name

Description

SV610- 433-TTL

433MHZ,TTL interface

SV610- 470-TTL

470MHZ,TTL interface

SV610- 868-TTL

868MHZ,TTL interface

SV610- 915-TTL

915MHZ,TTL interface



Product Description

SV610 is an Industrial class & highly-integrated RF transceiver module, which adopts the high performance Si4432 from Silicon Labs and industrial micro-controller. SV610 has a standard TTL interface, SV610 has good sensitivity and 100mW output power to achieve long RF range and reliable RF communication. To avoid the interference, SV610 provides 40 frequency channels and configurable Net ID. SV610 is flexible but easy to use, it comes with many parameters, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device.







Specifications

Note: High quality 3.3V LDO is integrated, and Pin CS / SET is 3.3V interface. TXD/RXD is also 3.3V for SV610-TTL



Parameters

Min.

Typ.

 Max.

Unit

Condition

Working condition

Voltage range

2.8

5.0

6.0

V

TTL level

Operating Temperature

-40

25

+85

℃



Current consumption

Rx current



25



mA

TTL level

Tx current



95



mA

@20dBm

Sleep current



≤5



uA

@TTL level

RF parameters

Frequency range



414.92

433.92

453.92

MHZ

@433MHZ

470.92

470.92

509.92

MHZ

@470MHZ

849.92

868.92

888.92

MHZ

@868MHZ

895.92

914.92

934.92

MHZ

@915MHZ

Data rate

1.2

9.6

38.4

Kbps

GFSK

Output power

-1

/

+20

dBm



Sensitivity



-121



dBm

@1.2kbps





Features

433/470/868/915 MHz (Customizable240-930 MHZ)
Industrial class
40 channels
4 bytes Net ID & 2 bytes Node ID
Series Data Rate: 1200 ~ 115200 bps
Air Data Rate:  1200 ~ 115200 bps
GFSK modulation
RSSI
Interface: TTL
Antenna matching automatically
Bi-directional & Half duplex
Sensitivity: -121 dBm
Max output power: 100mW +20 dBm

Working voltage: 3.3 ~ 7.0 V
Working temperature: -40 ~ +85 °C
Weight: 2.0g
Parameters save automatically


Application:

Remote telemetry
Auto meter reading
Security systems
Data logger
Wireless data communication
Home automation
Healthy monitor
Wireless PC peripherals
Access Control
Robot control



Application circuit

The typical schematic circuit is as below:

Note: The ground pin of the module and device should be connected together.



Typical application:



Pin Definition:



Pin No.

Definition

Description

1

VCC

Connected to the positive power supply (typical 5V)

2

GND

Connected to ground

3

TXD

TXD of the module and connect to external RXD

4

RXD

RXD of the module and connect to external TXD

5

SET

Configuration mode enable (low to enter into the setting mode, leave open or connect high level to exit setting mode) Valid when CS Pin is high or leave open.

6

CS

Module working Enable(Pull Low to make the module enter into

sleep mode, Leave open or connect high level make the module enter into normal working mode)





Machinism Dimensions:





Accessories:

Antenna: The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

Tips for antenna:

*Don’t close to the ground, metal, magnet, big current;

*If you are using the sucker antenna, pull the wire as straight as possible, the sucker foundation should stick with metal

USB Bridge Board:

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 3 type of USB bridge, which is SU108-TTL/ SU108-232 / SU108-485.SU108 -TTL is for TTL Interface, SU108-232 is for 232 Interface, SU108 - 485 is for 485 Interface. User should select the right USB bridge corresponding to the RF module.SU108 -TTL is for TTL Interface module SV610.



Product show





Related Products

Product type Product Seal  Interface With MCU Frequency Modulation Power Sensitivity Voltage Sleep current RX TX Speed Channels Visible Distance in open area (M) Volume(mm)
(MHz) (dBm) (V) (kpbs)
wireless data transceiver SV610 Module only Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0  < 5 uA 25 mA 95mA @ 20dBm 1.2~38.4  40 1400 26.8*16*2.4
  SNR610 -1~+20dBm
  SV611 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  95mA @ 20dBm 1.2~38.4  40 1400 43.25*26.45*9.4
  SNR611 Serial port 232 -1~+20dBm 4.5~5.5V(232) 32.7 Ma @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
wireless network transceiver SV612 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 100 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
  SNR612 Serial port 232 -1~+20dBm 4.5~5.5V(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
  SV613 Aluminium USB serial port Yes 433/470/ 868/915 GFSK 100 mw -121 4.5~5.5 < 5 uA 26 mA 95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
  SNR613 -1~+20dBm
  SV614 Aluminium RS232 serial Yes 433/470/ 868/915 GFSK 100 mw -121 4.5~5.5 < 5 uA 33 mA 95mA @ 20dBm 1.2~38.4 40 1400 62.5*43.2*14.3
  SNR614 -1~+20dBm
  SV650 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 3.3~7.5 < 5 uA 25mA @ TTL 350 mA @ 27dBm 1.2~38.4 40 1400 38*20*4
  SNR650 Serial port 485 20~27dBm 34 mA @ 485
  SV651 With shielding case Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  350 mA @ 27dBm 1.2~38.4 40 3000 50.4*39*7.6
  SNR651 Serial port 232 20~27dBm 4.5~5.5V(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
  SV652 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 500 mw -121 2.8~6.0(TTL) < 5 uA 25 mA @ TTL  350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
  SNR652 Serial port 232 20~27dBm 4.5~5.5V(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5V(485) 34 mA @ 485
  SV653 Aluminium USB serial port Yes 433/470/ 868/915 GFSK 500 mw -121 4.5~5.5 < 5 uA 26 mA 350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
  SNR653 20~27dBm
  SV654 Aluminium RS232 serial port Yes 433/470/ 868/915 GFSK 500 mw -121 4.5~5.5 < 5 uA 33 mA 350 mA @ 27dBm 1.2~38.4 40 3000 62.5*43.2*14.3
  SNR654 20~27dBm
  SV6202 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 2 W -121 4.5~6.5(TTL) < 5 uA 25 mA @ TTL  900 mA @ 33dBm 1.2~38.4 40 5000 62.5*43.2*14.3
  SNR6202 Serial port 232 13~33dBm 4.5~5.5(232) 32.7 mA @ 232
    Serial port 485   4.5~5.5(485) 34 mA @ 485
  SV6300 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 3 W -121 9~18 < 5 uA < 30 mA < 0.6 A 1.2~38.4 40 6000 93*84*26
  SNR6300 Serial port 232 15~35dBm
    Serial port 485
  SV6500 Aluminium Serial port TTL Yes 433/470/ 868/915 GFSK 5 W -121 9~18 < 5 uA < 30 mA < 1.8 A 1.2~38.4 40 8000 93*84*26
  SNR6500 Serial port 232 30~37dBm
    Serial port 485



Front-end transceiver RF4421 Module only SPI No 433/868/915 FSK   -105 2.2~3.8 0.3 uA 11 mA 22 mA @ 7dBm 115.2(digital mode) - 300 17*16.5*2
Customizable 256(Simulation Mode)
RF4431 Module only SPI No 433/868/915 FSK 20 mw -118 1.8~3.6  < 1 uA 18.5 mA 35 mA @ 13dBm 0.123~256  - 600 17*16.5*2
Customizable GFSK
  OOK
RF4432 Module only SPI No 433/868/915 FSK 100 mw -121 1.8~3.6  < 1 uA 18.5 mA 85 mA @ 20dBm 0.123~256  - 1400 17*16.5*2
Customizable GFSK
  OOK
RF4432PRO With shielding case SPI No 433/868/915 FSK 100 mw -121 1.8~3.6 < 1 uA 18.5 mA 85 mA @ 20dBm 0.123~256 - 1400 17.3*17*2.6
Customizable GFSK
  OOK
RF4432F27 With shielding case SPI No 433/868/915 FSK 500 mw -122 3.3~7.0  < 3 uA 21 mA 350 mA @ 27dBm 0.123~256 - 2500 38*20*4
Customizable GFSK
  OOK
RF4463PRO With shielding case SPI No 433/868/915 (4)FSK 100 mw -126 1.8~3.6  < 0.1uA 10.7 mA 85 mA @ 20dBm 0.123~1000 - 1800 17.3*17*2.6
Customizable (4)GFSK 13.5 mA
  OOK
  ASK
RF4463F30 With shielding case SPI No 433/868/915 (4)FSK 1 W -126 3.3~7.0  < 2 uA 10.7 mA 550 mA @ 30dBm 0.123~1000 - 3500 38*20*4
Customizable (4)GFSK 13.5 mA
  OOK
  ASK
RF1212 With shielding case SPI No 433/868/915 FSK 12.5 dBm -110 2.1~3.6 < 1 uA 3 mA 25 mA @ 10dBm 0.78~150(@FSK) - 600 17.3*17*2.6
Customizable OOK
RF2401 Module only SPI No 433/868/915 FSK  -20~+10 dBm -115 1.9~3.6 < 0.1 uA 7 mA 36 mA 1.5~72 - 400 13.56*13.8*2
Customizable
ASK STX881 Module only —— No 315/433 ASK 7.5dBm @ 3V - 1.2~13 < 0.01 uA — 20 mA @ 5V,13dBm 0.1~9.6 - According to the power support and the attached decode 12*15.2*5.2
Transmitter module 13dBm @ 5V
  20dBm @ 12V
  STX882 Module only —— No 315/433 ASK 13dBm @ 2.4V - 1.2~6 < 0.01 uA — 34 mA @ 3.3V,15dBm 0.1~9.6 - 12*15.2*5.2
  15dBm @ 3V
  20dBm @ 5V
  STX887 Module only —— No 315/433 ASK 10 dBm @ 3V - 1.8~5.5  < 1 uA — 24.5mA @ 3V 0.1~9.6  - 12*15.2*5.2
  17 dBm @ 5V
  STX888 Module only —— No 315/433 ASK 10 dBm @ 3V - 1.8~5.5  < 1 uA — 24.5mA @ 3V 0.1~9.6 - 12*15.2*5.2
  17 dBm @ 5V
Ask Receiver module SRX882 Module only —— No 315/433 ASK - -110 2.4~5.5  < 2 uA 2.7mA @ 315MHz — 0.1~9.6 - 35*10.4*5
OOK 2.9mA @ 433MHz
SRX887 Module only —— No 315/433 ASK - -110 3.0~5.5  < 1 uA 2.9mA @ 315MHz — 0.1~9.6 - 33.1*9.1*5
OOK 4.0mA @ 433MHz



3D Name Seal Interface With MCU Power Sleep consumption Current Resolution  Pedometer error Applicaton Volume
pedometer module (V)
  STP100 IC set Impulse output No 2.3~3.6 <5 uA 30uA @ 3V 1 ±3% steps @ uniform motion  None-wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP101 IC set Impulse output No 2.3~3.6 <5 uA 30uA @ 3V 1 ±3% steps @ uniform motion  Wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP200 IC set IIC No 2.3~3.6 <5 uA 60uA @ 3V 1 ±3% steps @ uniform motion  None-wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP201 IC set IIC No 2.3~3.6 <5 uA 60uA @ 3V 1 ±3% steps @ uniform motion  Wrist pedometer product MCU seal: TSSOP8,Size: 0.25*0.12*0.03mm
  3D sensor seal: LGA-12, Size:2*2*1.0mm
  STP156 module only Impulse output No 2.3~3.6 <3 uA 30uA @ 3V 1 ±5% steps @ uniform motion  3D pedometer product 11.26*11.4*1.8



Type Spring antennas
Frequency band 433 MHz 490 MHz 868 MHz 915 MHz
Antenna name SW433-TH32DN SW433-TH10 SW433-TH22 SW433-TH32 SW490-TH10 SW490-TH14 SW868-TH13 SW915-TH12
Material nickel-plated stainless Copper Golden-plated stainless Copper Copper Copper Copper Copper
VSWR <=1.5 <=1.8 <=1.5 <=1.5 <=1.8 <=1.8 <=1.5 <=1.5
Gain(dBi) 2.15 2.15 2.15 2.15 2.15 2.15 2.15 2.15
Height(mm) 32 10 22 32 10 14 13 12



Type Rubber  antennas
Frequency band 433 MHz
Antenna name SW433-ZT28 SW433-ZT100 SW433-WT36 SW433-WT100 SW433-ZD115 SW433-ZB165 SW433-ZT100DN SW433-WT100DN
Material Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated Nickel-plated Nickel-plated
VSWR <=2.0 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 2.15 3 2.5 3 2.15 3 3 3
Interface form SMA(Build-in) SMA(Build-in) SMA-JW SMA-JW SMA SMA SMA SMA-JW
Height(mm) 28 100 45 100 115 160 100 100



Type Rubber  antennas
Frequency band 409 MHz 450 MHz 470 MHz 490 MHz 868 MHz 915 MHz
Antenna name SW409-ZT100 SW450-ZT100DN SW450-WT100DN SW470-ZT100 SW490-ZT100 SW868-ZT100 SW868-WT100 SW915-ZT100
Material Golden-plated Nickel-plated Nickel-plated Golden-plated Golden-plated Golden-plated Golden-plated Golden-plated
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 3 2.5 3 3 3 3 3
Interface form SMA SMA SMA-JW SMA SMA SMA SMA-JW SMA
Height(mm) 100 100 100 100 100 100 100 100



Type Rubber antenna
Frequency band 915 MHz 880~960NHz 2400 MHz
Antenna name SW915-WT100  SWGPRS-ZT186 SW2400-ZT48  SW2400-WT106 SW2400-ZD115
Material Golden-plated Golden-plated
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 3 2.5 3 3
Interface form SMA-JW SMA SMA/J SMA/JW SMA
Height(mm) 100 186 48 106 115



Type Sucker antenna Yagi antenna
Frequency band 433 MHz 490 MHz 868/915 MHz 2400 MHz 433MHz
Antenna name SW433-XPXM SW433-XP-WP SW433-XP-MAX SW490-XP1M SW868-XP1M SW2400-XP1M SW433-BM-11DB
SW915-XP1M
VSWR <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5 <=1.5
Gain(dBi) 3 2.15 5.5 3 3 7 11
Interface form SMA-J MCX/J SMA-JW SMA-J SMA-J SMA-J or customize (TNC Male)/SMA/BNC
Height(mm) 126 111 1000 126 126 220 86
Lead wire(M) 1~6m to choose 3m(customizable) 3m/5m 1m(customizable) 1m(customizable) 1m(customizable)





Company Information

 2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose





Packaging & Shipping

 2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose

 2015 FSK Wireless RF Module SV610 TTL Interface Data Transceiver Module 433/470/868/915 MHz Different Frequency Band to Choose



Our Services

 NiceRF Technology Co.,ltd is the original manufacturer. We promise our every customer the best price and best quality.Welcome to visit our company!

1,Any inquiries will be replied in 12 hours.
2,OEM/ODM service:
* Customer's own logo is available;
* We help customer realize their own thinking, idea, design;
3,After-sale Service:
* All products passed QC before shipping;
* All products will be well-packed before shipping;
* All products have 1 year guarantee. Damaged item is free to change or return in warranty period.
4, Payment terms: T/T,Western Union/paypal/MoneyGram
5, Shipping company: China air post/HK,Singapore post/EMS/DHL/FEDEX.



Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
NiceRF Wireless (Shenzhen) Technology Co., Ltd.
Business Type
Manufacturer, Trading Company, Distributor/Wholesaler
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Network & Interface Network & Interface
Power Management (PMIC) Power Management (PMIC)
Radio Frequency Integrated Circuit(RFIC) Radio Frequency Integrated Circuit(RFIC)
