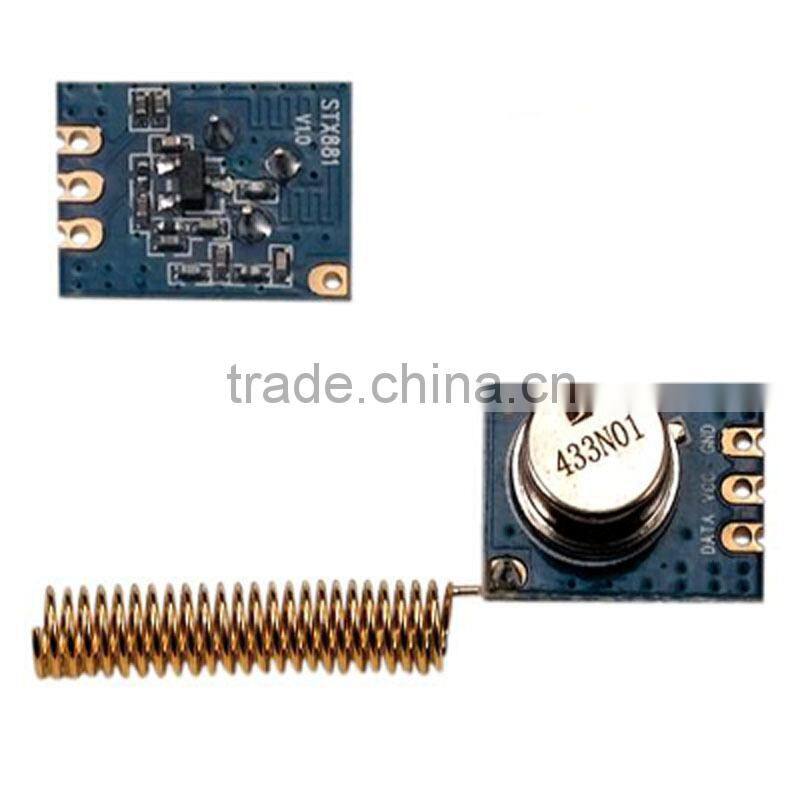

low cost rf wireless ASK Transmitter Module STX881

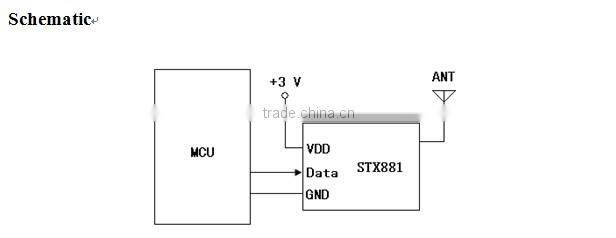

STX881 is a low cost, small size, high-power, low harmonic, wide voltage ASK transmitter module. Has a high level of stability, cost-effective, certified by ROHS, FCC, R & TTE, ETSI, CE, etc. The module can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.
Specifications:
Parameter |
Min. |
Typ. |
Max |
Unit |
Conditions |
Operation conditions | |||||
Supply Voltage |
1.2 |
3.0 |
13 |
V |
|
Operating Temperature Range |
-20 |
25 |
70 |
°C |
|
Current consumption | |||||
TX current |
20 |
mA |
@5V,13dBm |
||
Sleep Current |
≤0.01 |
uA |
@DATA As Low level |
||
RF parameters | |||||
Frequency Range |
433.82 |
433.92 |
434.02 |
MHZ |
@433MHZ |
314.9 |
315 |
315.1 |
MHZ |
@315MHZ |
|
RF power |
7 |
7.5 |
8 |
dBm |
@3V |
12 |
13 |
14 |
dBm |
@5V |
|
19.5 |
20 |
20.5 |
dBm |
@12V |
|
Air rate |
0.1 |
9.6 |
Kbps |
||
Features:
*Frequency Range: 433/315 MHZ
*ASK modulation mode
*Small volume low self radiation
*High-power long-range
*Frequency stability
*Various international testing standards
Application:
*Remote door
*Wireless security alarm
*Wireless industrial control
*Wireless data transmission
