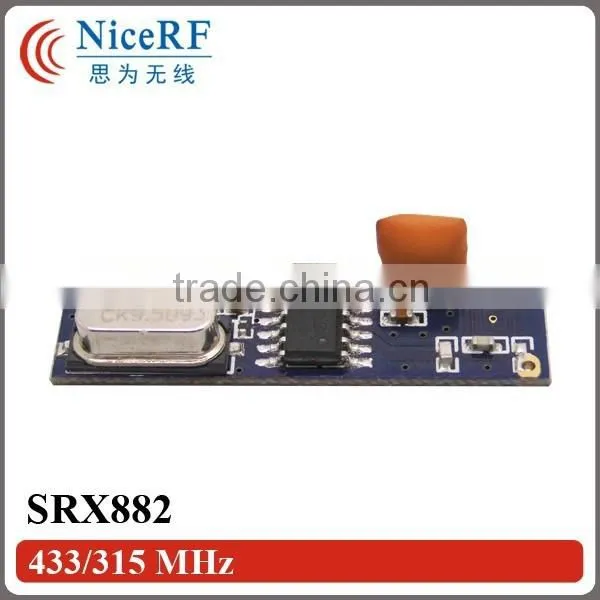

NiceRF ASK Module 433MHz Long Range 100m Wireless RF Module SRX882 433 Receiver Ask Module
- 500000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | NiceRF | Model Number: | SRX882 |
Product Description
NiceRF ASK Module 433MHz Long Range 100m Wireless RF Module SRX882 433 Receiver Ask Module
SRX882 Low Consumption Strong Driving Force Super Heterodyne Receiver Module
SRX882 is a micro power strong driving force super heterodyne receiver module. It is can support our transmitter module STX882/STX888. It has high stability, anti-interference and high cost-effective, also has a powerful driving force, certified by ROHS, FCC, CE, The module can be connected to the microcontroller directly. So it is more convenient for user developing wireless products.
Specification
SRX882 Receiver
Brand | NiceRF |
Product | SRX882 ASK Module |
Supply Voltage | 2.4 | 5 | 5.5 | V | |
Operating Temperature Range | -30 | 85 | °c | ||
Latency | 20 | ms | @ 315MHZ | ||
9 | ms | @ 433@HZ | |||
Current consumption | |||||
Consuming current | 2.5 | mA | @ 315MHZ | ||
2.8 | mA | @ 433MHZ | |||
<2 | uA | @ CS=1 Or vacant | |||
RF parameters | |||||
Frequency Range | 433.82 | 433.92 | 434.02 | MHZ | @ 433MHZ |
314.9 | 315 | 315.1 | MHZ | @ 315MHZ | |
Sensitivity | -110 | -107 | dBm | @ 1.2Kbps | |
Air rate | 0.1 | 9.6 | kbps | ||
Receiver bandwidth | 200 | KHz |
Features:
Frequency Range: 433 MHZ
ASK /OOK modulation mode
Super anti-power interference
Low-power sleep less than 1uA
Low self radiation
Small size
Frequency stability and reliability
Various international testing standards
Application:
Remote door
Wireless security alarm
Wireless industrial control
Wireless data transmission
Pin configration of SRX882 receiver
Pin Number | Pin Definitions | Description |
1 | ANT | Matching 50 ohm antenna |
2 | GND | Connected to power ground |
3 | VCC | Positive power supply |
4 | CS | High level to enable the module, low level to enter sleep mode |
5 | DATA | Data output pin |
6 | GND | Connected to power ground |
7 | ANT | Matching 50 ohm antenna |
Mechanism dimension of SRX882 receiver
Our company is engaged in researching, developing, producing and selling IOT(internet of things) products.
We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules.
Meanwhile, ODM and OEM projects are welcomed.
With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.
Delivery time
1.Sample order:1-3 days
2.Normal order:3-7 days
3.OEM/ODM Order:7-15 days
Warrenty
1.100% test low than 0.05% defective rate
2.Free technical support
MOQ
1.Sample Order: 2pcs/a pair
2.OEM Order: More Than 1000pcs
Aftersale Service
1.Give replacements if there is quality issue of the part in future order
2.Evaluate the customs risk and choose safest shipping company during different period
3.Fllow status from time to time till the goods arrive client's hand
4.NiceRF warranty does not apply to products purchased through third-party verdors
a) Why module can not communicate properly?
1) Check if the band, channel, rate, NET ID has set to the same;
2) Check if there is power connection error;
3) Check if the module is enabled (CS high);
4) Check if the antenna connection is not correct;
5) Check if the module is damaged.
b) Why transmission distance is not far as it should be?
1) Power supply ripple is too large;
2) The antenna types do not match, or not properly installed;
3) The surrounding environment is harsh, strong interference sources;
4) Surrounding co-channel interference;
c) Why receiving data incorrect?
1) Improper parameter settings;
2) Module data interface is bad.
d) Why should I use antennas?
The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.
e) What kind of USB bridge board should I use?
The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC.
