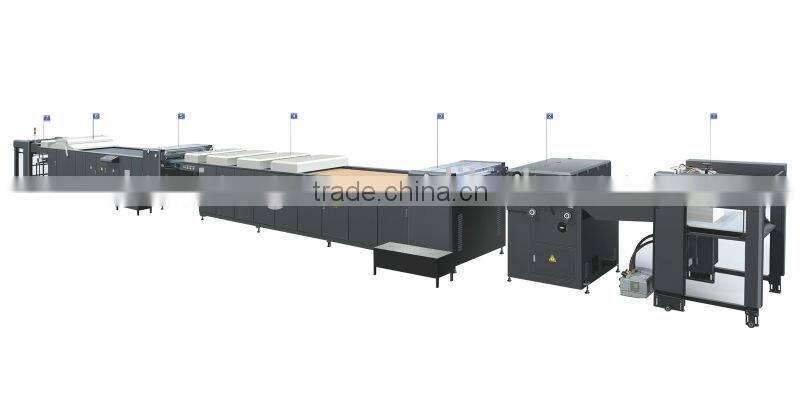

High-speed coating line with powder removing section and water-based coating machine-LSGZ-C-UI1200C-A

Specifications

Coating machine
1. High efficiency and stability
2. High precise
3. Perfect result
4. With powder removing section

LSGZ-C-UI-C-A HIGH-SPEED COATING LINE WITH POWDER REMOVING SECTION AND WATER-BASED COATING



Application:

This machine is used for coating on the surface of paper, which raises its brightness and plays a role of damp-proof and abrasion-resistance so as to protect colors on the surface of paper. It is suitable for small sized priting product.



Features:

1. Automatic feeding section: High-speed stable feeder free from maintenance.

*Option: movable guide rail, manual feeding table for paper size feeder could not handle.



2. Powder removing section: Adopt flannel roller and heating roller double way to clean the powder on paper surface and increase the coating effects, convenient adjustment and operation.



3. Grounding coating/IR drying section: This section is used for water-based varnish before UV coating to fill with small holes on paper surface to save UV varnish.



4. Infrared hot air drying/cooling fan ministry: The unique design of hot-wind drying make water-based coating frying faster and more purely.



5. UV coating/UV curing section: Adopt reverse roller and speed regulating to control varnish thickness, automatic stop for paper jam to reduce sheets to be wasted.



6. UV curing: This section is composed of lamps, reflectors, air cooling and exhasuting systems. Sheets coated by UVvarnish will be dried here.



7. Automatic delivery section: Jogging times can be set according to paper weight. Pneumatic joggers can keep sheets delivered orderly. Equipped with pre-delivery table which will be automatically open when paper jam in delivery.



Technical Parameter:

Model:	LSGZ-C-UI740C-A	LSGZ-C-UI1040C-A	LSGZ-C-UI1200C-A
Max width(mm)	740X560	920X1040	1200X920
Min width(mm)	280x400	307x440	307x440
Max speed(pcs/h)	7000	7000	7000
UV power:	6.5kw x 3	9.75kw x 3	9.75kw x 3
IR power:	1kw x 27	1.5kw x 27	1.8kw x 27
Total Power(kw)	68	84	96
Weight(t)	6.2	6.5	6.6
Dimension(mm)	20000X1450X1700	20000x1750x1700	20000X1800X1700
