Help CenterAutomatic Coating Machine-SGZ-UI1200P
Related Products
-
Manual Coating Machine-SGS-UV650PUS$ 10,000 - 30,000MOQ: 1 Unit -
Manual Coating Machine-SGS-UV920PUS$ 10,000 - 30,000MOQ: 1 Unit
-
Manual Coating Machine-SGS-UV1200PUS$ 10,000 - 30,000MOQ: 1 Unit
-
Manual Coating Machine-SGS-UI650PUS$ 10,000 - 30,000MOQ: 1 Unit
-
Manual Coating Machine-SGS-UI920PUS$ 10,000 - 30,000MOQ: 1 Unit
Specifications
Coating machine1. High efficiency and stability
2. High precise
3. Perfect result

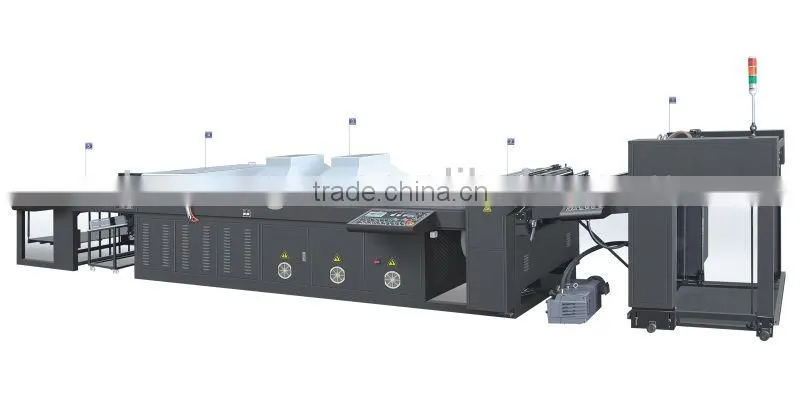

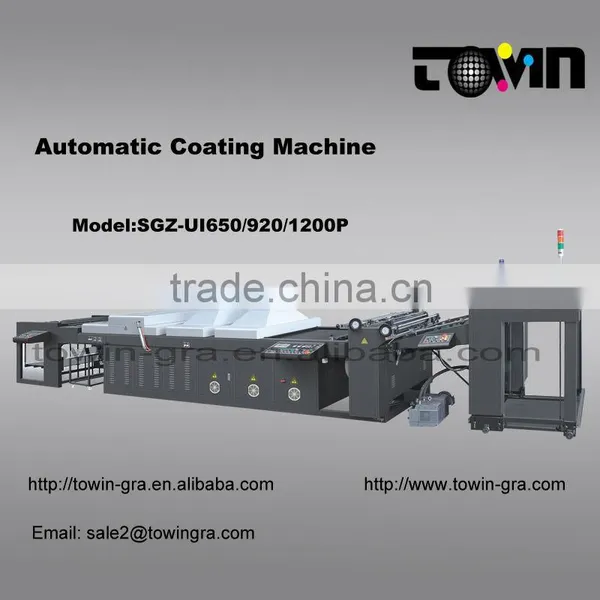

SGZ-UI-P AUTOMATIC COATING MACHINE
Application:
This machine is used for small size paper coating and the ideal for high volume production with high quality. Compact design, easy operation, especially energy-saving and flexibility.
Features:
1. Safety operation: European CE certified
2. High efficiency: high-speed feeder, non-stop paper feeding and dilivery, open-type pneumatic curing chamber, good stability for the machine.
3. Low rate of paper waste: machie stops automatically when double sheets or sheet jammed
4. Varnish consumption saved: varnish is controlled by the speed of reverse roller, coated sheet surface is more smooth.
5. Wide paper range: 80-200gsm, air knife system for light paper
*Options: PLC control system
Lengthened conveyor, there are 2m or 4m extended choices
SGZ-UI-P Model only with uv curing and suits for UV coating
Powering removing section
Technical Parameter:
Model: |
SGZ-UI650P-A |
SGZ-UI920P-A |
SGZ-UI1200P-A |
Max width(mm) |
650X650 |
920X920 |
920X1200 |
Min width(mm) |
250x330 |
307x420 |
307X420 |
Paper weight(grams) |
80-450 |
80-450 |
80-450 |
Max speed(pcs/h) |
5000 |
5000 |
5000 |
UV power: |
5.6kw x 3 |
8kw x 3 |
9.75 x 3 |
Coating roller number |
3.5 |
4.1 |
4.6 |
Total Power(kw) |
58 |
70 |
84 |
Weight(t) |
3.5 | 4.1 |
4.6 |
Dimension(mm) |
9920X1300X1600 |
9920X1580X1600 |
9920X1800X1600 |
|
Note: For model SGZ-UI-P, IR drying system is equipped, so IR dryer and UV curing system can be used for choice. SGZ-UV-P Model has no IR hot-wind | |||
