Specifications
Box sample maker1. High quality
2. Easy to operate
3. High speed and precise

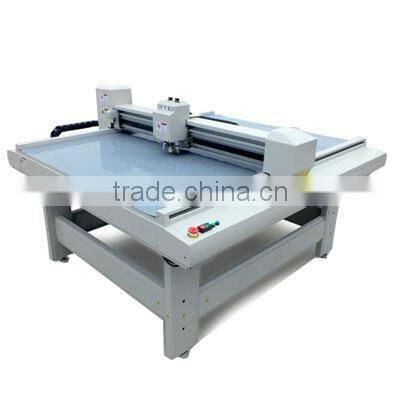

DCH50 SERIES PAPER BOX SAMPLE MAKER
Applications:
This paper box sample maker is combined with proofing, drawing and other functions. It mainly has cutting, creasing folding line and half cutting for making dotted line functions. And with CAD/CAM system, it also can be used for laser positioning and drawing.

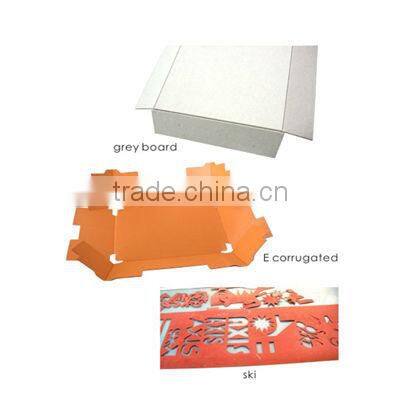

DCH50 Series cutting machine adopt the high servo motor and rotation motor making the knive rotate initative, which makes a great step improvement on speed and cutting acuracy and also enlarge the cutting application. it can cut grey board and E corrugated paper beside the card paper and thin plastic.
This machine is suitable for color box factory, color print factory, packing factory, blister and box folding factory and laser factory.
Features:
1. This machine has the features of high accuracy( error≤0.02mm), saving proofing time, stability, durability and easy operation.
2. It is suitable for various kinds of paper, such as cardboard, offset plate, compound materials, grey board and E corrugated paper etc.
3. It can make accurate folding lines on cardboard and offset board.
4. According to customer's requirements, it can do half cutting to make dotted folding lines.
5. It can do accurate positioning to the printed paper box.
6. With CAD/CAM system, this machine can draw accurate figures on paper and film.
Technical specifications:
Model |
DCH501713 |
DCH501512 |
DCH501209 |
Effective cutting area |
1700×1300 |
1500×1200 |
1200×900 |
Configuration |
Rotation knife ,pen, creasing toll, laser position |
||
Driver |
Step motor |
||
Max speed |
1000mm/s |
||
Precision |
≤0.1mm |
||
Max cutting thickness |
3mm and E corrugated paper |
||
Smallest cutting diameter |
3mm |
||
Occupy dimension (L×W×H) |
2260×2100×1100mm |
2060×2000×1100mm |
1760×1700×1100mm |
Note: other size can be customized | |||
