Specifications
Box sample maker1. High quality
2. Easy to operate
3. High speed and precise
4. With drawing function

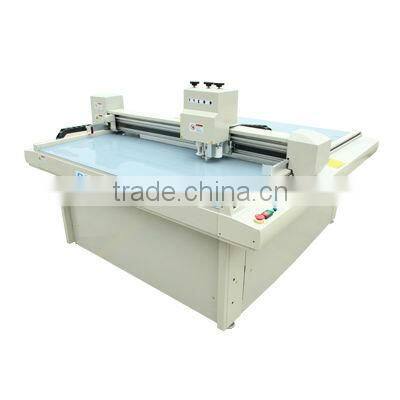

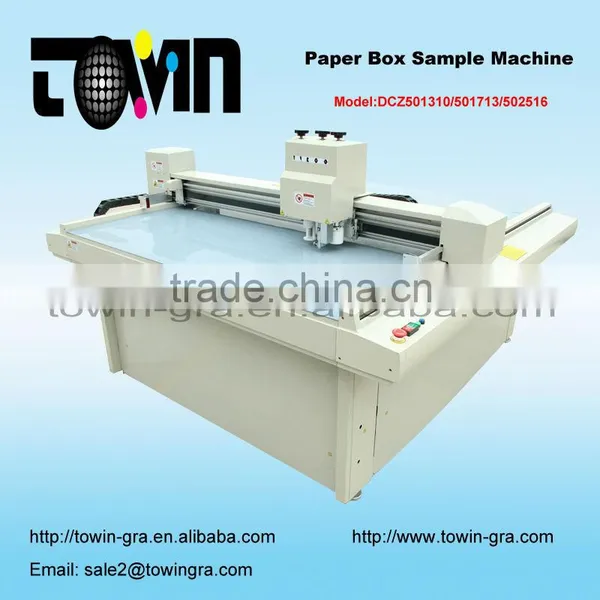

DCZ SERIES PAPER BOX SAMPLE MAKER
Application:
This box sample maker is combined with proofing, drawing and other functions. It mainly has oscillation tools cutting, creasing folding line and dotted line functions, and it also can be used for laser positioning and drawing. This machine can be used in color box factory, color print factory, packing factory, blister and box folding factory and laser tool factory.
Features:
1. This machine has the features of high accuracy( error≤0.1mm), saving proofing time, stability, durability and easy operation.

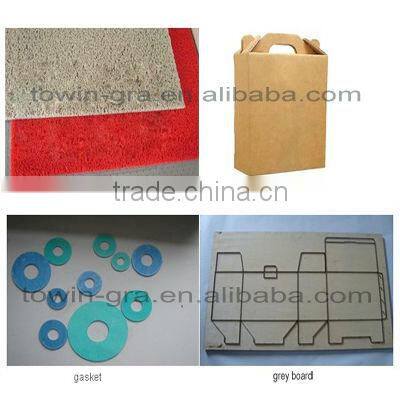

2. It is suitable for various kinds of paper, such as Corrugated paper, Cardboard, offset plate, grey board, compound materials, gasket, leather, clothes, etc.
3. It can make perfect folding lines on corrugated papers, cardboard and offset board.
4. After half cutting the corrugated paper and grey card paper, this machine can automatic fold them and make dotted lines.
5. This machine also has laser positioning and high accuracy drawing functions.
Technical Parameter:
| Type | DCZ502516 | DCZ501713 | DCZ501310 |
| Effective cutting area(mm) | 2500x1600 | 1700x1300 | 1300x1000 |
| Configuration | Oscillating knife,drag knife, pen, creasing tool | ||
| Max speed(mm/s) | 1000 | ||
| Min cutting diameter(mm) | 6 | ||
| Max cutting thickness | 15 | ||
| Control circuit & driver | Servo | ||
| Overlapping precision(mm) | ≤0.1 | ||
| Vacuum(kw) | 5.5KW | ||
| Data form | HPGL | ||
| Voltage | 220V±10%50HZ | ||
| Data port | PCI port | ||
| Data transmission speed | 10MB/S | ||
| Option | Vedio Registration system | ||
| Covering Dimension(mm) | 3150x2380x1150 | 2370x2200x1150 | 1960x1890x1150 |
| Input cushion area | 32MB | ||
