Specifications
Box sample maker1.For carton & corrugated board
2. Easy to operate
3. High speed 1350mm/s
Drawing function

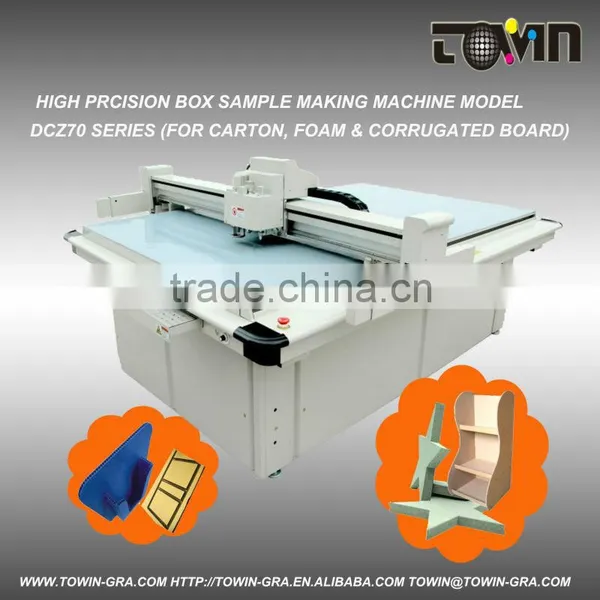

High precision automatic box sample maker
APPLICATIONS:
High precision automatic box sample maker DCZ70 series are widely used to cut and crease carton and corrugated board to have box sample in printer or corrugated display in supermarket and also used to cut foam.
MAIN FEATURES:
1. Two interchangeable tools, who sets head design, which is convenient to change cutting tools.
2. Four spindles high speed controller, installation in modular, which is easy and convenient for maintenance.
3. Cutting depth is adjustable upon customer’s real need.
4. Easy to set operation data. For different material, before processing, you only need to set corresponding thickness of each and your required speed for each.
TECHNICAL SPECIFICATIONS
Machine model |
DCZ702516 |
DCZ701713 |
DCZ701310 |
Effective cutting area |
2500X1600mm |
1700X1300mm |
1300X1000mm |
Configuration |
Oscillating blade, Pen, Creasing wheel, Drag knife |
||
Substrate |
Carton, foam and corrugated board with thickness less than 15mm |
||
Max.Speed |
1350mm/s (vary in material to cut) |
||
Min.Cutting diameter |
6mm |
||
Max.Cutting thickness |
30mm |
||
Control line & driver |
Servo |
||
Accuracy |
Less than or equal to 0.1mm |
||
Vacuum capacity |
5.5kw |
||
Data format |
HPGL, DXF |
||
Machine voltage |
220V±10%/50Hz |
||
Data port |
Serial port, parallel port, USB port |
||
Data transferring speed |
10MB/s |
||
Input cushion area |
32MB |
||
Machine size |
3460X2460X1180mm |
2600X2160X1160mm |
22000X1860X1160mm |
