Specifications
GPS GSM Antenna with straight fakra1.High Quality.
2.Low Price.
3.Factory offer
4.Customize accept
Combination GPS GSM Antenna with straight fakra / right angle
1. Product Technical Specifiction:
GPS Electrical Specification | |
Center Frequency (MHz) | 1575.42MHZ±2MHZ |
Bandwidth (MHz) | 6MHZ |
Gain (dBi) | 29dB±3dB |
Input Impendence (Ω) | 50Ω |
V.S.W.R | ≤1.8 |
Consumption Electric | <10mA |
Polarization Intensity | R.H.C.P |
Supply Voltage | DC3.3~5.0V |
The Sound Coefficient | ≤1.7dB |
Axial Ratio | 3dB |
Max Input Power (w) | 50 |
Operating Temperature | -40°C~+85°C |
Storing Temperature | -20°C~+85°C |
Cable length (mm) | 3000 |
Connector Type | SMA-Male |
Radome Color | Black |
Dimension-mm | Φ72 x 21 |
Weight (g) | 140 |
Fixed Mode | Screw(M12*20) |
GSM Electrical Specifications | |
Frequency Range (MHz) | 806~960/1710~2170 |
Input Impendence (Ω) | 50 |
V.S.W.R | ≤1.7 |
Gain (dBi) | 3.5 |
Polarization Type | Vertical |
Radiation Direction | Omnidirectional |
Max Input Power (w) | 50 |
Operating Temperature | -40°C~+85°C |
Storing Temperature | -20°C~+85°C |
Cable length (mm) | 3000(10 ft) |
Connector Type | SMA-Male |
Radome Color | Black |
Dimension-mm | Φ72 x 21 |
Waterproof | 100% waterproof |
2. Payment Way:
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
3. Shipment:
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
4. Refund & Replacement
1. We can guarantee the product quality within 3 months.
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.

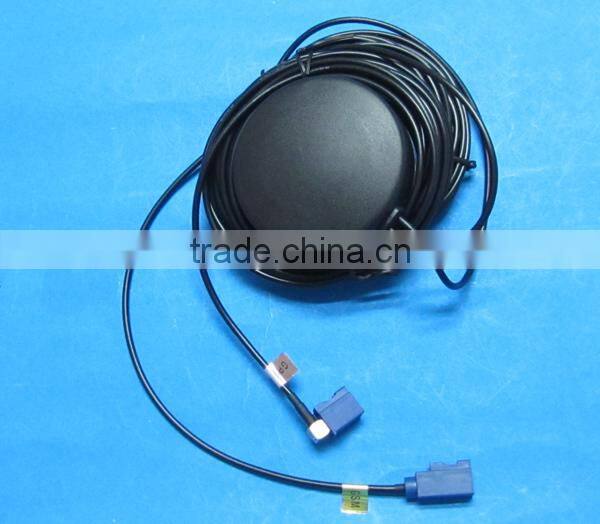

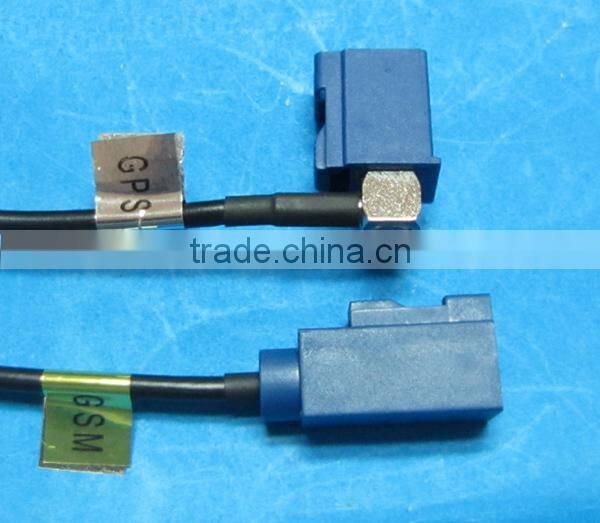

GPS+GSM Combination Car Antenna GPS+GSM Combination Car Antenna
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.
Please contact us if you have any questions or other requirement.
