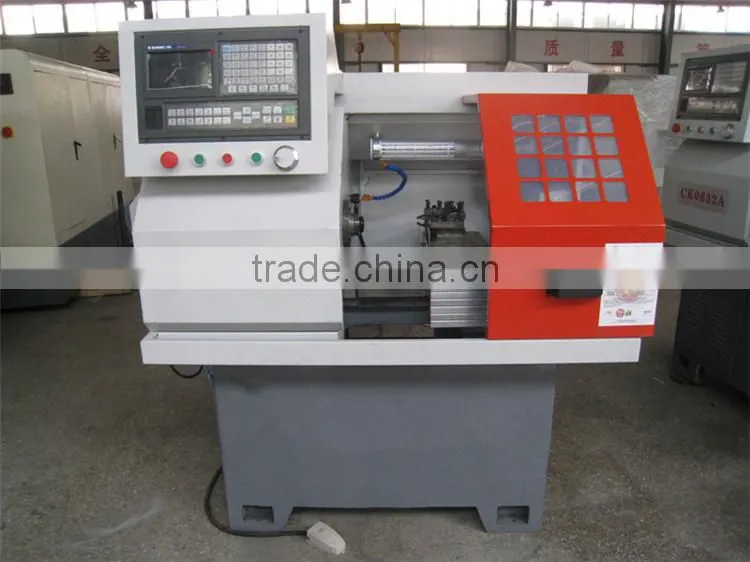

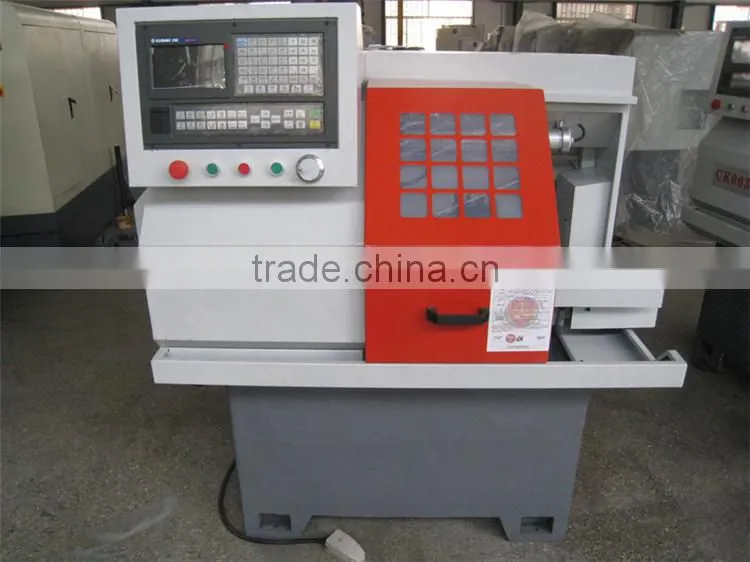

CAK0625 mini hobby lathe machine

Name: CAK0625 mini hobby lathe machine
Brand: pulute
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Turning Center	CNC or Not:	CNC
Automatic Grade:	Automatic	Max. Swing Diameter:	160 mm	Place of Origin:	Shandong, China
Brand Name:	pulute	Model Number:	CAK0625	Voltage:	380v or 220v
Power(W):	2.2 kw	Dimension(LWH):	14809801510mm	Weight:	900kg
Certification:	CE, ISO9001, ISO14001	After-sales Service Provided:	Overseas third-party support available

1. Specification of CAK0625 mini hobby lathe machine

Specification	mini hobby lathe machine
Max.swing over bed	Φ160
Max.swing over carriage	Φ60
max length of work piece	150
Maximum diameter of the bar	Φ25
X / Z axis repeat positioning accuracy	0.012/0.013
X-axis max motion traveling schedule	280
Z- axis max motion traveling schedule	160
X-axis fast moving speed	5
Z- axis fast moving speed	8
Range of spindle speed	150-3000
Turret form	row turret
Power of the main drive motor	2.2
Overall dimensions(L×W×H)	1480×930×1510
Net weight	900

2. Mini hobby lathe machine characteristics

a. The reasonable design and thermal type structure effectively improve the stability .

b.the good stability and high load bearing.

c. The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to

ensure the long-term stability of machining precision and service life.

d. X axis and Z axis screw work more smoothly, more convenient to maintain .

e. Z guide with double swallow tail can protect guide rail better.

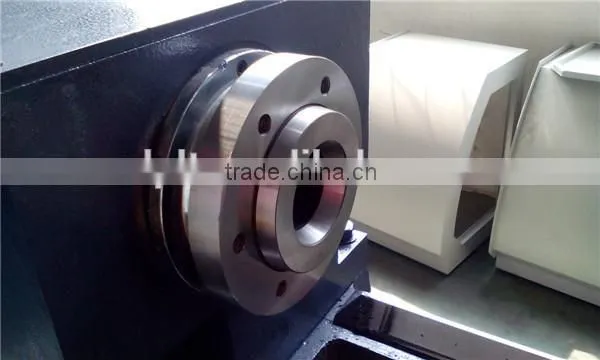

f. Spindle with pneumatic chuck

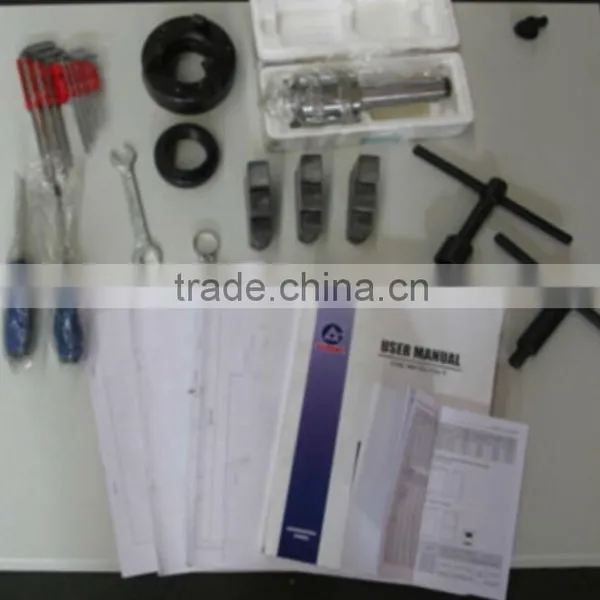

3. Mini hobby lathe machine configuration

work light, gang type tool post, pneumatic chuck, foot padel, full set of lubrication system, full set of

coolant system, tools spare parts etc

To choose the most suitable and economic CNC lathe model, please kindly tell the following

info. in details

piece material and usage, solid type or hollowed type ( pipe type),

2.list all of outer diameters and inner diameter,

3.drawings is best to be sent to us too.
