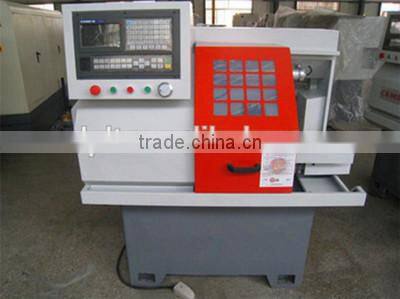

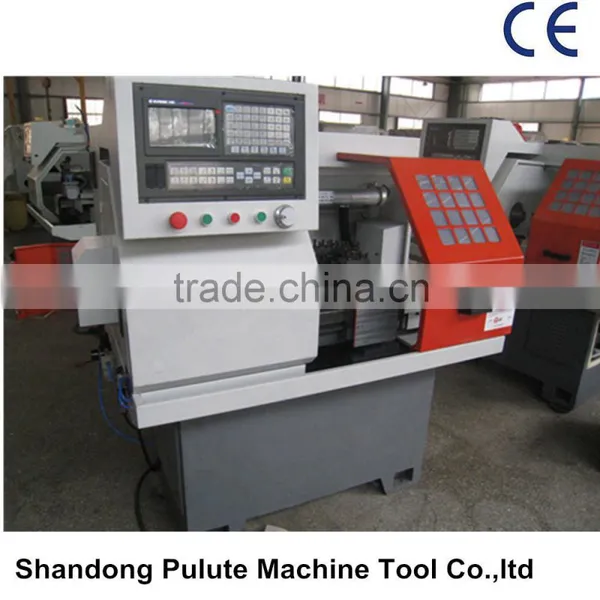

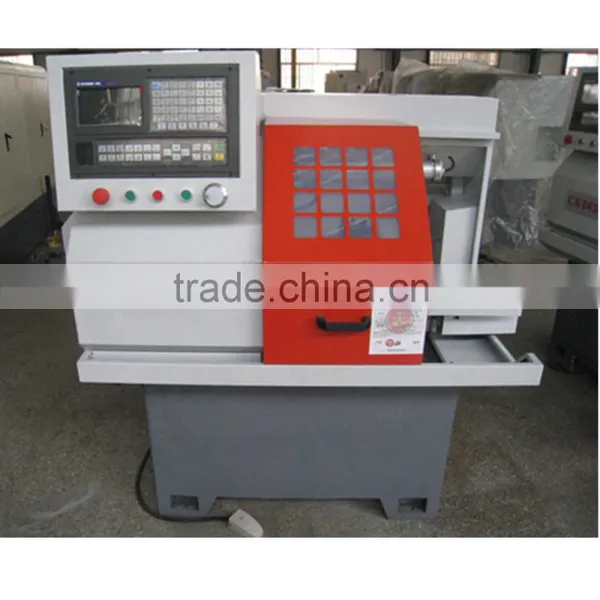

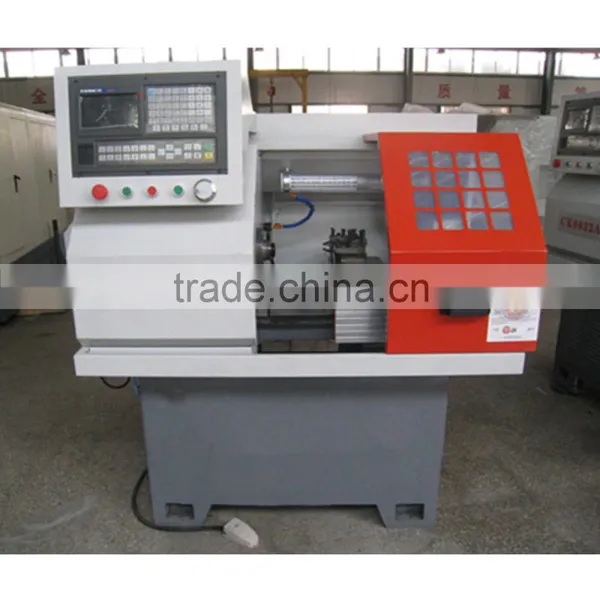

CAK0625 economy lathe, small metal CNC lathe
- 160 Set / Sets per Month
- QINGDAO
Product Details
Condition: | New | Type: | Turning Center | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 160 mm | Place of Origin: | Shandong, China |
Brand Name: | pulute | Model Number: | CAK0625 | Voltage: | 380v or 220v |
Power(W): | 2.2 kw | Dimension(L*W*H): | 1480*980*1510mm | Weight: | 900kg |
Certification: | CE, ISO9001, ISO14001 | After-sales Service Provided: | Overseas third-party support available |
Product Description
economy lathe, small metal CNC lathe
1. Specification of CAK0625 economy lathe, small metal CNC lathe
Specification | economy lathe, small metal CNC lathe
|
Max.swing over bed | Φ160 |
Max.swing over carriage | Φ60 |
max length of work piece | 150 |
Maximum diameter of the bar | Φ25 |
X / Z axis repeat positioning accuracy | 0.012/0.013 |
X-axis max motion traveling schedule | 280 |
Z- axis max motion traveling schedule | 160 |
X-axis fast moving speed | 5 |
Z- axis fast moving speed | 8 |
Range of spindle speed | 150-3000 |
Turret form | row turret |
Power of the main drive motor | 2.2 |
Overall dimensions(L×W×H) | 1480×930×1510 |
Net weight | 900 |
2. CAK0625 economy lathe, small metal CNC lathe characteristics
a. The reasonable design and thermal type structure effectively improve the stability .
b. the good stability and high load bearing.
c. The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to
ensure the long-term stability of machining precision and service life.
d. X axis and Z axis screw work more smoothly, more convenient to maintain .
e. Z guide with double swallow tail can protect guide rail better.
f. Spindle with pneumatic chuck
3. CAK0625 economy lathe, small metal CNC lathe configuration
work light, gang type tool post, pneumatic chuck, foot padel, full set of lubrication system, full set of
coolant system, tools spare parts etc
4.To choose the most suitable and economic CNC lathe model, please kindly tell the following
info. in details
piece material and usage, solid type or hollowed type ( pipe type),
2.list all of outer diameters and inner diameter,
3.drawings is best to be sent to us too.
5.Reliable quality, authority detection, in time service
a.Each of our CNC machine has to be supervised and tested by
The National Machine Tool Quality Supervision and Testing Center.
The original inspecting and testing report could be offered with machine before delivery.
b.Patient 24-hour online after-sale service, providing the detailed and easy-understanding video data.
c.Training by professional and experienced engineer is offered too.
Learn more details, click the following SEDN or talk on alibaba TM.
