Help CenterJ35 Economic Box Way Horizontal Education University Lathe Machine
Related Products
economic box way horizontal education university lathe machine
education university lathe |
J35 CNC lathe |
| Max. swing over bed | Φ230 mm |
| Max. swing over cross slide | Φ125mm |
| Max. processing length | 200 mm |
| Thu-hole dia. of spindle | Φ50 mm |
| Drawing pipe dia. | Φ41 mm |
| Spindle taper |
A2-5 |
| Spindle speed | 150-2500 rpm |
| Spindle motor power | 3 kw |
| X/Z axis travel |
300/320 mm |
| X/Z axis torque | servo 1/1 kw |
| X/Z axis rapid feeding speed | 8/10 m/min |
| X/Z axis position accuracy |
0.01/0.015 mm |
| X/Z axis repeatability |
0.012/0.013 mm |
| Tool bar section | 16*16 mm |
| Tailstock sleeve dia. | Φ45mm optional |
| Tailstock sleeve travel | 90 mm optional |
| Tailstock taper | MT4# optional |
| N.W. | 850 kg |
| Machine dimension (L*W*H) | 1420*1120*1750 mm |

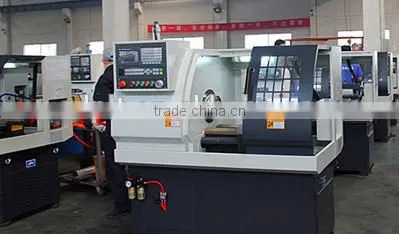

J35 economic box way horizontal education university lathe machine
GSK980TDC or Siemens 808d NC system
inverter motor 3kw
4 station gang type tool post
spring collet
integrated automatic lubrication system
coolant system
ligthen system
tools and tool box

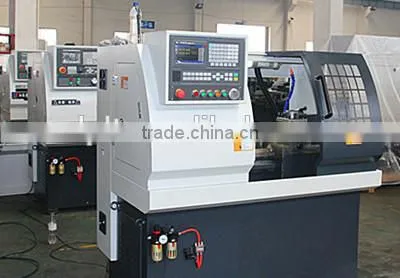

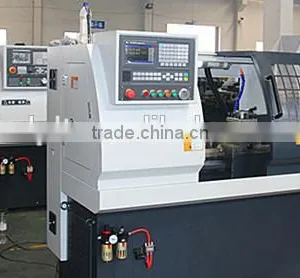

J35 economic box way horizontal education university lathe machine
KND100Ti or Fanuc 0I mate-TD
servo motor 3.7/5.5 kw
inverter motor 4 kw
4 station electric turret
5" manual chuck
6" manual chuck
tailstock
auto feeder device
J35 economic box way horizontal education university lathe machine
Before order, please kindly inform the following,
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings is better to send to us
3. Need cutters, clamping set or not
4.Customer service
Click " send " now and learn more about our products.
