J32 Chuck Lathe Pneumatic

J32 Chuck Lathe Pneumatic thumbnail-1
J32 Chuck Lathe Pneumatic thumbnail-2
J32 Chuck Lathe Pneumatic thumbnail-3
J32 Chuck Lathe Pneumatic thumbnail-4
J32 Chuck Lathe Pneumatic thumbnail-5
J32 Chuck Lathe Pneumatic thumbnail-6
J32 Chuck Lathe Pneumatic photo-1
J32 Chuck Lathe Pneumatic photo-2
J32 Chuck Lathe Pneumatic photo-3
J32 Chuck Lathe Pneumatic photo-4
J32 Chuck Lathe Pneumatic photo-5
J32 Chuck Lathe Pneumatic photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Turning Center
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Shandong Pulute Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Turning Center
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 195mm
Place of Origin Shandong, China
Brand Name pulute
Model Number j32
Voltage 380v
Power(W) 4kw
Dimension(L*W*H) 1420*1120*1750mm
Weight 800kg
Certification CE, ISO9001, ISO14001
After-sales Service Provided Overseas third-party support available

chuck lathe pneumatic

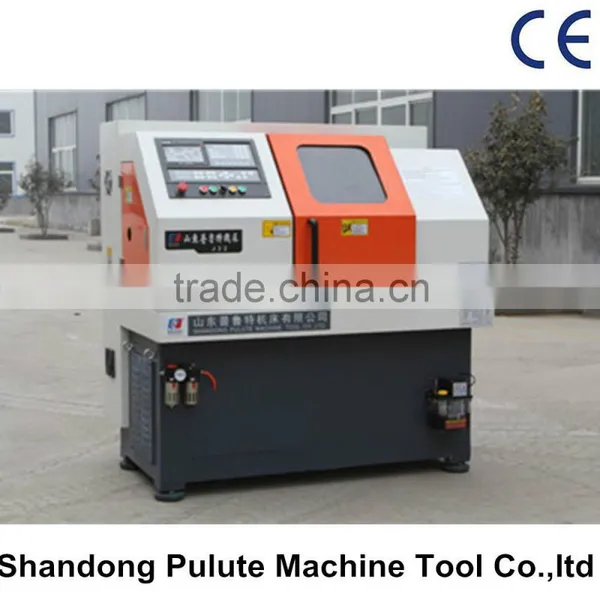

   chuck lathe pneumatic J32 CNC lathe
Max. swing over bed  Φ190 mm
Max. swing over cross slide Φ80mm
Max. processing length  200 mm
Thu-hole dia. of spindle Φ37 mm
Drawing pipe dia.  Φ32 mm
Spindle taper
A2-4
Spindle speed  150-2500 rpm
Spindle motor power  3 kw
X/Z axis travel
 300/320 mm
X/Z axis torque servo 1/1 kw
X/Z axis rapid feeding speed  8/10 m/min
X/Z axis  position accuracy
 0.01/0.015 mm
X/Z axis repeatability
  0.012/0.013 mm
Tool bar section 16*16 mm
Tailstock sleeve dia. Φ45mm optional
Tailstock sleeve travel  90 mm optional
Tailstock taper MT4# optional
N.W. 800 kg
Machine dimension (L*W*H) 1450*1100*1600 mm





1. standard accessories J32 chuck lathe pneumatic

pneumatic collet and spindle drawing pipe ( some suppliers do not offer this as standard accessories)

4 station gang type tool post

a full set of lubrication system

a full set of coolant system

work light

tools and tool box

GSK 928TEA NC system

J32 chuck lathe pneumatic

2.optional accessories  J32 chuck lathe pneumatic

5 " manual three-jaw chuck

5 " hydraulic chuck, hydraulic station, hydraulic cylinder

Hydraulic collet, hydraulic station, hydraulic cylinder

manual tailstock

Auto-bar feeder( two types: short bar and long bar)

chip conveyor

Fanuc 0I mate TD, Siemens 808d, GSK980TDC



3.To choose the most suitable and economic CNC lathe model, please kindly tell the

following info. in details

  piece material and usage, solid type or hollowed type ( pipe type),

 2.list all of outer diameters and inner diameter,

 3.drawings is best to be sent to us too.

Click " send " now and learn more about our products.
