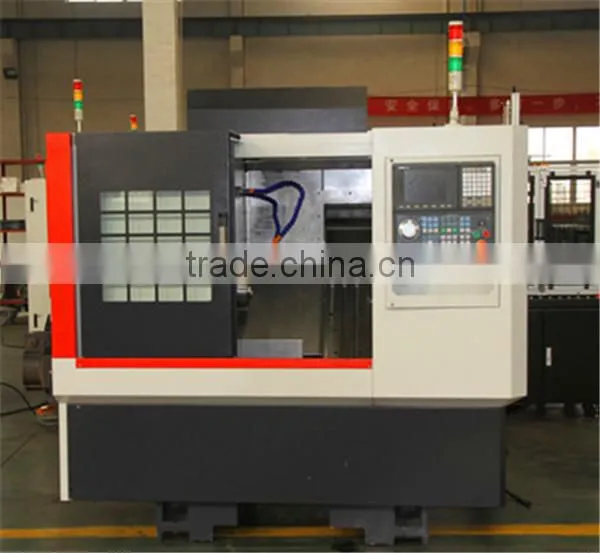

TCK6336S Jinan 45 Degree Slant Bed Linear Guide CNC Lathe Machine by Jinan Quality Choice

Name: TCK6336S Jinan 45 Degree Slant Bed Linear Guide CNC Lathe Machine by Jinan Quality Choice
Brand: Pulute
SKU: 115202275

US$ 14444.00 - 14444.00 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Shandong Pulute Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Ningbo Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 390mmm

Place of Origin Shandong, China

Brand Name Pulute

Model Number TCK6336S

Voltage 220v/380/440v

Power(W) 5.5KW

Dimension(L*W*H) 2500*1340*1710mm

Weight 2500kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Jinan 45 degree slant bed linear guide CNC lathe machine by Jinan

1. specification TCK6336S Jinan 45 degree slant bed linear guide CNC lathe machine by Jinan

slant bed linear guide CNC lathe machine	TCK6336S
Max. swing over bed	390 mm
Max. swing over cross slide	130 mm
Spindle speed	3500 rpm
Spindle nose	A2-6
Spindle bore	56 mm

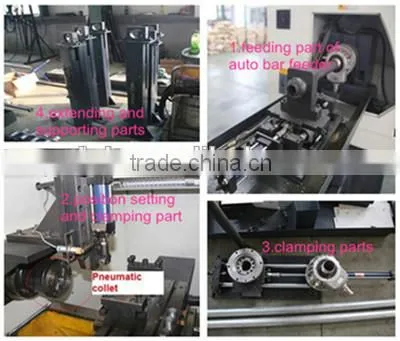

Max. bar diameter	45 mm
work piece clamping type	6" hydraulic collet chuck
Spindle motor	5.5 kw
X/Z feed motor power	1.5 kw
X/Z feed motor torque	6/6 Nm
X/Z position accuracy	0.016/0.016 mm
X/Z repeatability	0.006/0.006 mm
X/Z rapid feed speed	18/15 m/min
Cutting tool shape size	20*20 mm
Total power capacity	9 kva
Machine dimension (LWH)	2500×1340×1710
N.W.	2500 kg

2. Advantages of TCK6336S Jinan 45 degree slant bed linear guide CNC lathe machine by Jinan

6" hydraulic chuck
5.5 kw main motor. the larger power main motor optional
TCK6336S 45 degrees slant bed CNC lathe, reasonal mechanical design, easy chip convey

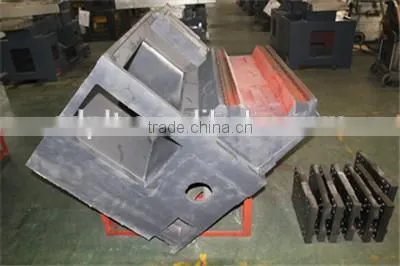

one piece machine bed ensures high rigidity and high reliability
Taiwan famous brand high precision linear guide way
high speed spindle up to 3500 rpm
pre-stretching structure ball screw could lowen friction much

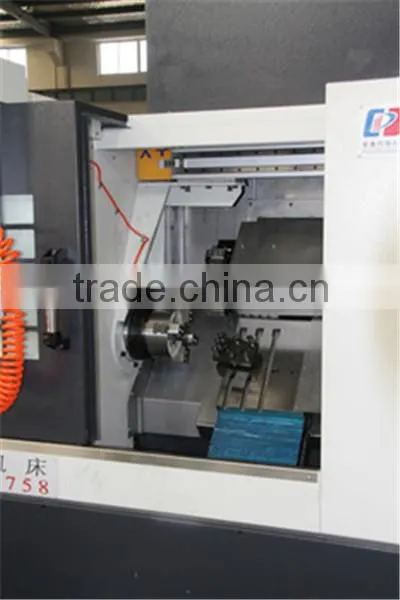

gang type tool post with quick tool changing time
