1. TCK700 inclined bed Fanuc automatic lathe machine specification
| inclined bed Fanuc automatic lathe machine | specification |
| Max. swing over bed | 700mm |
Max. Turning diameter |
650mm |
Max. Turing diameter over turret |
450mm |
Max. Turning length |
1000mm |
Distance between two centers |
1320mm |
Hydraulic chuck |
15" |
Main motor power servo type |
22kw |
Spindle speed |
2200rpm |
Thru-hole diameter of spindle |
106mm |
Max. Diameter of the bar |
90mm |
| x/z travel | 350/1120mm |
Turret |
8 position hydrulic turret |
| Tools | 4 tools gany type post |
Hydraulic tail stock sleeve diameter |
100 mm |
Hydraulic tail stock sleeve travel |
120 mm |
Hydraulic tail stock travel |
1250mm |
Hydraulic tail stock sleeve taper |
MT5# |
Overrall dimention L*W*H |
3850x2300 x2250 mm |
|
N.W. |
6000 kg |

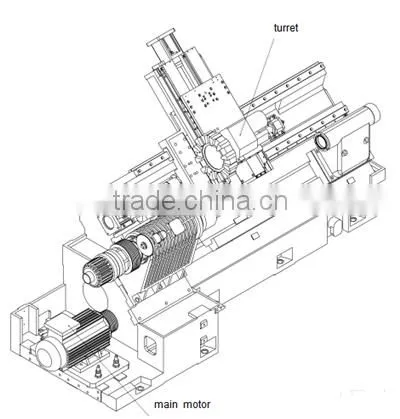

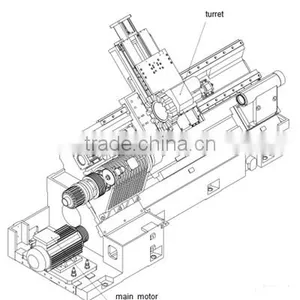

2. TCK700 inclined bed Fanuc automatic lathe machine features
Slant bed structure improves machine whole rigidity and anti-shake ability very well.
The high quality gray cast iron improves moving and static rigidity greatly.
The sand core in stand house absorbs vibration very well.
Feeding system adopts servo motor, precision ball screw, high rigidity precision compound bearing
structure.
Those makes high accurate position and high transmission efficiency.

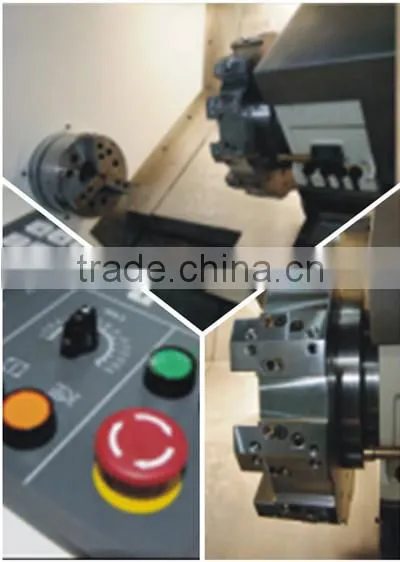

3. TCK700 inclined bed cnc lathes for sale parts pictures
