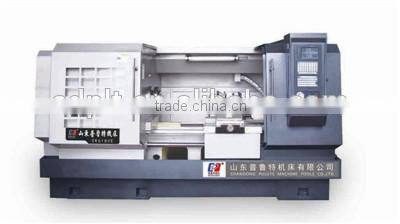

Help CenterCK61100 Ceramic Lathe
Related Products
ceramic lathe
1. CK61100 ceramic lathe SPECIFICATIO
| ceramic lathe | CK61100 |
| Max. swing over bed | 1000mm |
| Max. swing over cross slide | 660mm |
| Max. processing length | 1500/3000/6000mm |
| Spindle transmission type | three-gear, step-less in gear |
| Spindle speed steep | step-less |
| Spindle nose | C11 |
| Thru-hole dia. of spindle | Φ130mm |
| Spindle taper | 140 1: 20 |
| Spindle motor | 15KW |
| Max. tool-post travel | X:530 mm Z:1650/3100/6100mm |
| Ball screw dia. and pitch | X:Φ32*5 Z:Φ63*10 |
| Rapid feed speed | X:4000mm/min Z:5000mm/min |
| Position accuracy | X:0.025 mm Z:0.03mm |
| X, Y and X axes repeatability | X:0.01mm Z:0.015mm |
| Processing accuracy | IT6-IT7 |
| Workpiece surface roughness | Ra1.6 |
| Tailstock sleeve dia. | Φ100mm |
| Tailstock sleeve travel | 250mm |
| Tailstock sleeve taper | MT6# |
| Tool-post | 4-statin electric turret |
| Tool-post at optional | 6-station or 8-station electric turret |
| Toolbar section size | 35*35mm |
| Controller | GSK980TDC |
| Controller at optional | KND,FANUC,Siemens |
| Servo motor model | X130SJT-M150B Z175SJT-M220B |
| Machine dimension (L*W*H) | 4750/5500/8500 *1920*1800mm |
| N.W. | 6000/8500/13500kg |
2.CK61100E ceramic lathe FEATURES
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
guide width 755mm
3. CK61100E ceramic lathe UASGE
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous
metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the
inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4.CK61100E ceramic lathe ACCESSORIES
GSK980TDC or Siemens 808d NC system
15 kw inverter main motor

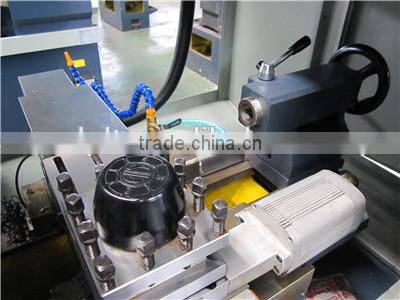

4 station electric turret
800mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
5.CK61100E ceramic lathe OPTIONAL ACCESSORIES
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
11/15 kw servo motor
6.To choose the sutiable and economic CNC lathe, please kindly offer the following info.
1. all work piece outer diameters, inner diameters and max. lengths
2. drawings and pictures are best to be sent
3. need special clapming tools or not
4. special requirement
Learn more details, click the following SEDN or talk on alibaba TM.
