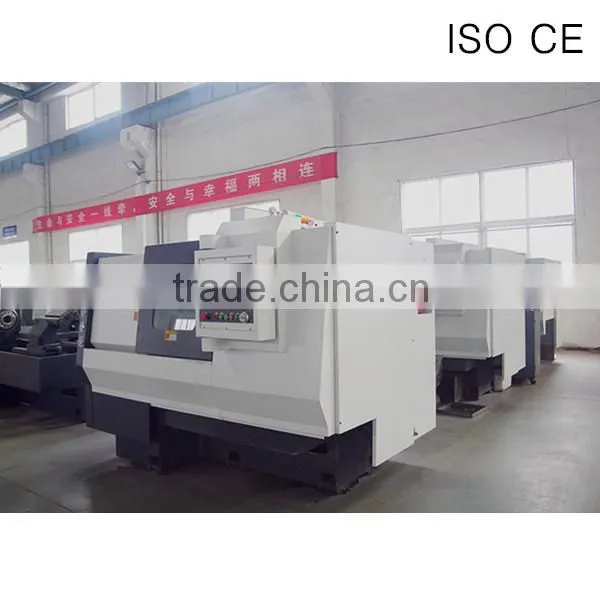

Help CenterTCK420 Capstan/capstone Lathe Machine
Related Products
capstan/capstone lathe machine
TCK420 capstan/capstone lathe machine CNC lathe specification
| max. swing over bed |
mm |
420 mm |
| max. swing over cross slide |
mm |
270mm |
| max. processing length |
mm |
400mm |
| X/Z axis travel |
mm |
160/400 mm |
| spindle nose |
mm |
A2-6 |
| spindle bore |
mm |
66 |
| spindle drawing pipe diameter |
mm |
50 |
| max. spindle speed |
rpm |
3000 |
| chuck |
inch |
8 |
| spindle motor power |
kw |
5.5 |
| X/Z axis position accuracy |
mm |
0.016/0.002mm |
| X/Z axis repeatability |
mm |
0.006/0.006mm |
| X/Z axis feed motor torque |
N.m |
5/7.5 |
| X/Z axis feed motor power |
kw |
1.3/1.88 |
| X/Z rapid feed speed |
m/min |
12 |
| tailstock travel |
mm |
350 |
| tailstock sleeve diameter |
mm |
90 |
| tailstock taper |
MT4# |
|
| tool post type |
8 station hydraulic magazine |
|
| cutting tool shape size |
mm |
20*20 |
| guide way type |
Linear guideay |
|
| total power capacity |
kva |
11 |
| machine dimension |
mm |
2300*1500*1650 |
| N.W. |
kg |
3000 |
2. configuration of TCK420 capstan/capstone lathe machine CNC lathe
Taiwan high accuracy HIWIN linear
Taiwan famous brand ball screw
hydraulic magazine
hydraulic chuck
hydraulic tailstock
thur-hole type rotary cylinder
3. usage of TCK420 capstan/capstone lathe machine CNC lathe
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other
industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also
turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.

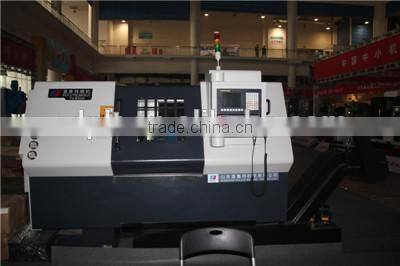

TCK420 capstan/capstone lathe machine CNC lathe
GSK980TDC or Siemens 808D
Servo main motor 5.5 kw

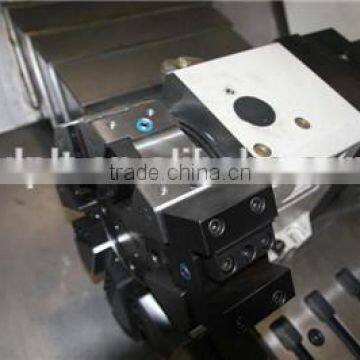

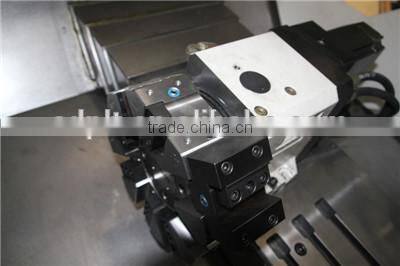

8 station hydraulic magazine
8" domestic thru-hole type hydraulic chuck
hydraulic tailstock
lubrication system
coolant system
lighten system
NC System: Mitsubishi E60, Fanuc Oi Mate-T
Main Motor: Servo7.5/11KW
Inverter 7.5KW
Chuck: 8″Non-through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
10″Non-through hole hydraulic chuck (Taiwan)
10″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Without hydraulic tailstock
Each of our CNC machine has to be supervised and tested by
The National Machine Tool Quality Supervision and Testing Center.
The original inspecting and testing report could be offered with machine before delivery.
Learn more details, click the following SEDN or talk on alibaba TM.
