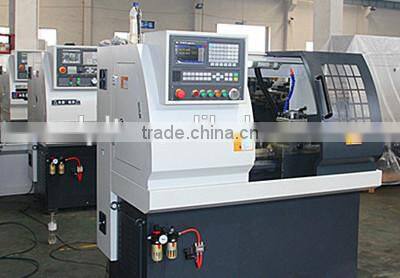

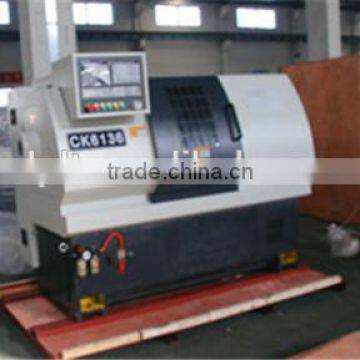

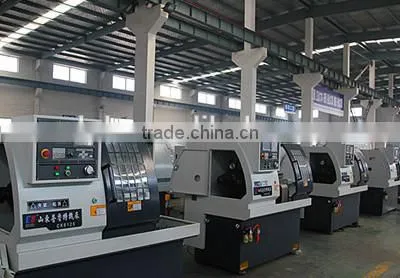

J32 Cheap Metal Lathe

J32 Cheap Metal Lathe thumbnail-1
J32 Cheap Metal Lathe thumbnail-2
J32 Cheap Metal Lathe thumbnail-3
J32 Cheap Metal Lathe thumbnail-4
J32 Cheap Metal Lathe thumbnail-5
J32 Cheap Metal Lathe thumbnail-6
J32 Cheap Metal Lathe photo-1
J32 Cheap Metal Lathe photo-2
J32 Cheap Metal Lathe photo-3
J32 Cheap Metal Lathe photo-4
J32 Cheap Metal Lathe photo-5
J32 Cheap Metal Lathe photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Shandong Pulute Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 190 mm
Place of Origin Shandong, China
Brand Name PULUTE
Model Number J32
Voltage 380v/220v/ 410v
Power(W) 4 kw
Dimension(L*W*H) 1450*1100*1600 mm
Weight 800 kg
Certification CE, ISO9001, ISO14001
After-sales Service Provided Engineers available to service machinery overseas

cheap metal lathe

J32 cheap metal lathe

1. standard accessories of J32   cheap metal lathe

pneumatic collet and spindle drawing pipe ( some suppliers do not offer this as standard accessories)

4 station gang type tool post

a full set of lubrication system

a full set of coolant system

work light

tools and tool box

GSK 928TEA NC system

2. optional accessories  of J32   cheap metal lathe

5 " manual three-jaw chuck

5 " hydraulic chuck, hydraulic station, hydraulic cylinder

Hydraulic collet, hydraulic station, hydraulic cylinder

manual tailstock

Auto-bar feeder( two types: short bar and long bar)

chip conveyor

Fanuc 0I mate TD, Siemens 808d, GSK980TDC

 J32 cheap metal lathe

J32 cheap metal lathe

Max. swing over bed  Φ190 mm
Max. swing over cross slide Φ80mm
Max. processing length  200 mm
Spindle bore Φ37 mm
Max. diameter of the bar
 Φ32 mm
Spindle nose
 A2-4
Spindle speed  150-2500 rpm
Spindle motor power  3 kw
X/Z axis travel
 300/320 mm
X/Z axis torque  1/1 kw
X/Z axis rapid feeding speed  8/10 m/min
X/Z axis  position accuracy
 0.01/0.015 mm
X/Z axis repeatability
  0.012/0.013 mm
Tool bar section 16*16 mm
Tailstock sleeve dia. Φ45mm optional
Tailstock sleeve travel  50 mm optional
Tailstock taper MT4# optional
N.W. 800 kg
Machine dimension (L*W*H) 1450*1100*1600 mm



3. To choose the most suitable and economic cheap metal lathe , please kindly tell the following

info. in details

1. work piece material and usage, solid type or hollowed type ( pipe type),

2.list all of outer diameters and inner diameter,

3.drawings is best to be sent to us too.
